HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) MC012C-BS00 S/N MC012C3J0001 & Up - Gear Cases, Brackets and Guard Parts Diagram

4x2 Utility Vehicle

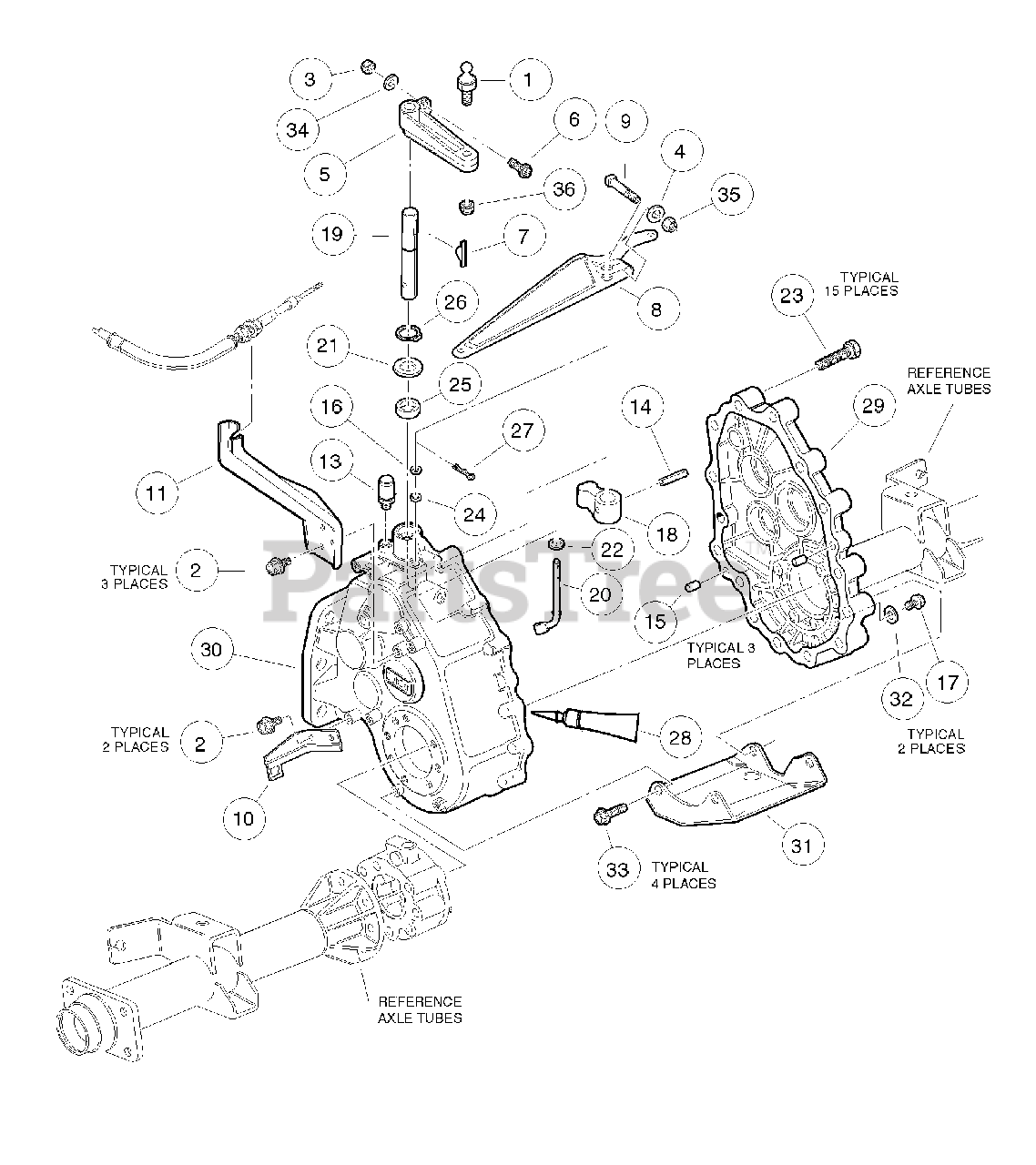

MC012C-BS00 S/N MC012C3J0001 & Up - Gear Cases, Brackets and Guard Parts Diagram

  • Title

1

Husqvarna 603000117

Stud, 1/4-28 X 0.560 Ball

$

$

Not available

2

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

3

Husqvarna 603000171

Locknut, #10-32 Nylon Insert

$

$

Not available

4

Husqvarna 603000194

Washer, 1/4 Flat

$

$

Not available

5

Husqvarna 603000288

Lever, Transmission Shift

$

$

Not available

6

Husqvarna 603000383

Screw, #10-32 X 0.75, Hex-Head Machine

$

$

Not available

7

Husqvarna 603000387

Key, Woodruff

$

$

Not available

8

Husqvarna 603000520

Arm, Governor

$

$

Not available

9

Husqvarna 603000557

Screw, 1/4-20 X 1.00 Square-Head

$

$

Not available

10

Husqvarna 603000653

Differential Lock Bracket

$

$

Not available

11

Husqvarna 603003233

Bracket, Shifter

$

$

Not available

12

Husqvarna 603001098

Transaxle, Hd, 15.51 Ratio

Note: (includes items 13 through 33)

$

$

Not available

13

Husqvarna 603000150

Breather

$

$

Not available

14

Husqvarna 603000156

Roll Pin

$

$

Not available

15

Husqvarna 603000159

Pin, Dowel

$

$

Not available

16

Husqvarna 603000329

Washer, M6 Flat

$

$

Not available

17

Husqvarna 603000354

Plug, Drain

$

$

Not available

18

Husqvarna 603000561

Lever, Change

$

$

Not available

19

Husqvarna 603000562

Shaft - Change

$

$

Not available

20

Husqvarna 603000563

Arm Pivot

$

$

Not available

21

Husqvarna 603000569

Washer

$

$

Not available

22

Husqvarna 603000571

Washer

$

$

Not available

23

Husqvarna 603000596

Screw, M8-1.25 X 40mm Hex-Head

$

$

Not available

24

Husqvarna 603000597

Seal, Oil

$

$

Not available

25

Husqvarna 603000598

Seal, Oil

$

$

Not available

26

Husqvarna 603000599

Snap Ring

$

$

Not available

27

Husqvarna 603000606

Pin, Cotter

$

$

Not available

28

Husqvarna 603000607

Liquid Gasket

Note: (Transaxle case)

$

$

Not available

29

Husqvarna 603000651

Case, Gear, Right Mc012

$

$

Not available

30

Husqvarna 603000652

Gear Case, Left

$

$

Not available

31

Husqvarna 603000709

Guard, Transaxle

$

$

Not available

32

Husqvarna 603000832

Gasket

$

$

Not available

33

Husqvarna 603000838

Bolt

$

$

Not available

34

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

35

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

36

Husqvarna 603000094

Locknut, 1/4-28 Nylon Insert

$

$

Not available
