HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) REAR BRAKE ASSEMBLY Parts Diagram

4x2 Utility Vehicle

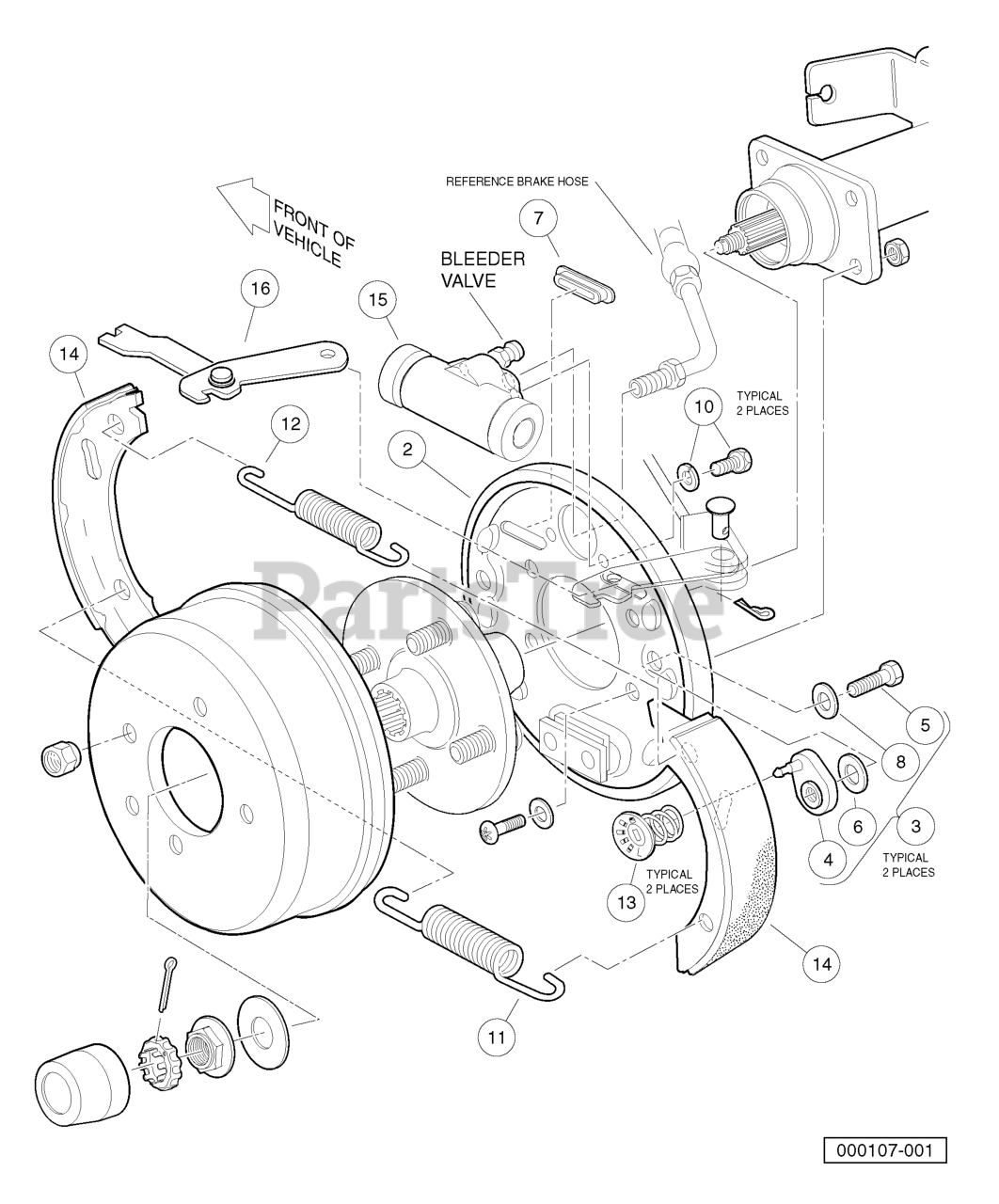

REAR BRAKE ASSEMBLY Parts Diagram

  • Title

1

Husqvarna 603000719

BRAKE CLUSTER ASM L.H.

$

$

Not available

32

Husqvarna 603000753

PARKING BRAKE ASM R.H.

$

$

Not available

23

Husqvarna 603000745

DUST COVER

$

$

Not available

28

Husqvarna 603000750

SPRING, SHOE TO SHOE UPPER

$

$

Not available

22

Husqvarna 603000744

WASHER

$

$

Not available

20

Husqvarna 603000740

ADJUSTER

$

$

Not available

26

Husqvarna 603000748

BOLT, WHL CYL-M6 X 1 SELF LOCK

$

$

Not available

30

Husqvarna 603000746

SHOE KIT - AXLE SET

$

$

Not available

6

Husqvarna 603000744

WASHER

$

$

Not available

31

Husqvarna 603000752

WHEEL CYL ASM .875 DIA.

$

$

Not available

7

Husqvarna 603000745

DUST COVER

$

$

Not available

29

Husqvarna 603000751

SHOE HOLD DOWN

$

$

Not available

13

Husqvarna 603000751

SHOE HOLD DOWN

$

$

Not available

12

Husqvarna 603000750

SPRING, SHOE TO SHOE UPPER

$

$

Not available

27

Husqvarna 603000749

SPRING, SHOE TO SHOE - LOWER

$

$

Not available

21

Husqvarna 603000743

BOLT, 1/4-28 UNF X .31 LG

$

$

Not available

17

Husqvarna 603000720

BRAKE CLUSTER ASM R.H.

$

$

Not available

19

Husqvarna 603000741

ADJUSTER KIT AXLE

$

$

Not available

18

Husqvarna 603000739

BACKING PLATE ASM

$

$

Not available

4

Husqvarna 603000740

ADJUSTER

$

$

Not available

15

Husqvarna 603000752

WHEEL CYL ASM .875 DIA.

$

$

Not available

3

Husqvarna 603000741

ADJUSTER KIT AXLE

$

$

Not available

2

Husqvarna 603000739

BACKING PLATE ASM

$

$

Not available

25

Husqvarna 603000742

HARDWARE KIT - AXLE

$

$

Not available

16

Husqvarna 603000754

PARKING BRAKE ASM L.H.

$

$

Not available

9

Husqvarna 603000742

HARDWARE KIT - AXLE

$

$

Not available

5

Husqvarna 603000743

BOLT, 1/4-28 UNF X .31 LG

$

$

Not available

14

Husqvarna 603000746

SHOE KIT - AXLE SET

$

$

Not available

10

Husqvarna 603000748

BOLT, WHL CYL-M6 X 1 SELF LOCK

$

$

Not available

11

Husqvarna 603000749

SPRING, SHOE TO SHOE - LOWER

$

$

Not available
