HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) REAR BRAKE ASSEMBLY, CONTINUED Parts Diagram

4x2 Utility Vehicle

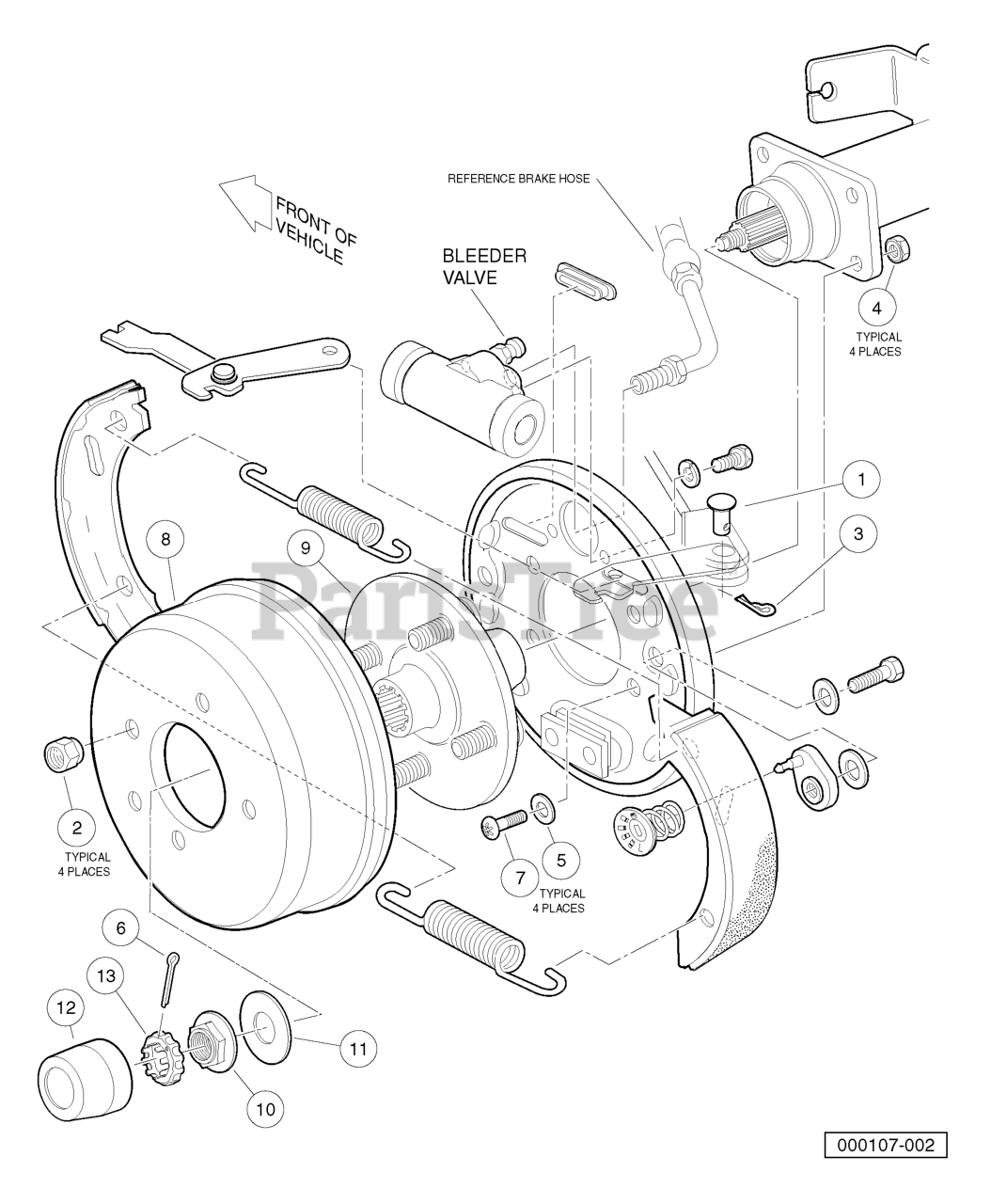

REAR BRAKE ASSEMBLY, CONTINUED Parts Diagram

  • Title

11

Husqvarna 603000843

WASHER - AXLE

$

$

Not available

2

Husqvarna 603000024

NUT 1/2-20 LUG

$

$

Not available

9

Husqvarna 603000841

WHEEL BOLT FLANGE

$

$

Not available

13

Husqvarna 603000867

LOCKING CAP, NUT

$

$

Not available

7

Husqvarna 603000755

SCREW, 5/16-24 X 1.0 TORX HD

$

$

Not available

4

Husqvarna 603000193

NUT

$

$

Not available

1

Husqvarna 603000112

CEVIS PIN

$

$

Not available

6

Husqvarna 603000525

PIN-COTTER - .312 X 1.25"

$

$

Not available

5

Husqvarna 603000388

WASHER, 5/16 HARDENED

$

$

Not available

8

Husqvarna 603000827

BRAKE DRUM, FE400 REAR

$

$

Not available

3

Husqvarna 603000172

HAIR PIN CLIP

$

$

Not available

12

Husqvarna 603000866

CENTER CAP, RUBBER

$

$

Not available

10

Husqvarna 603000842

NUT - AXLE FLANGE

$

$

Not available
