HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Rear Brake Assembly (Part A) Parts Diagram

4x2 Utility Vehicle

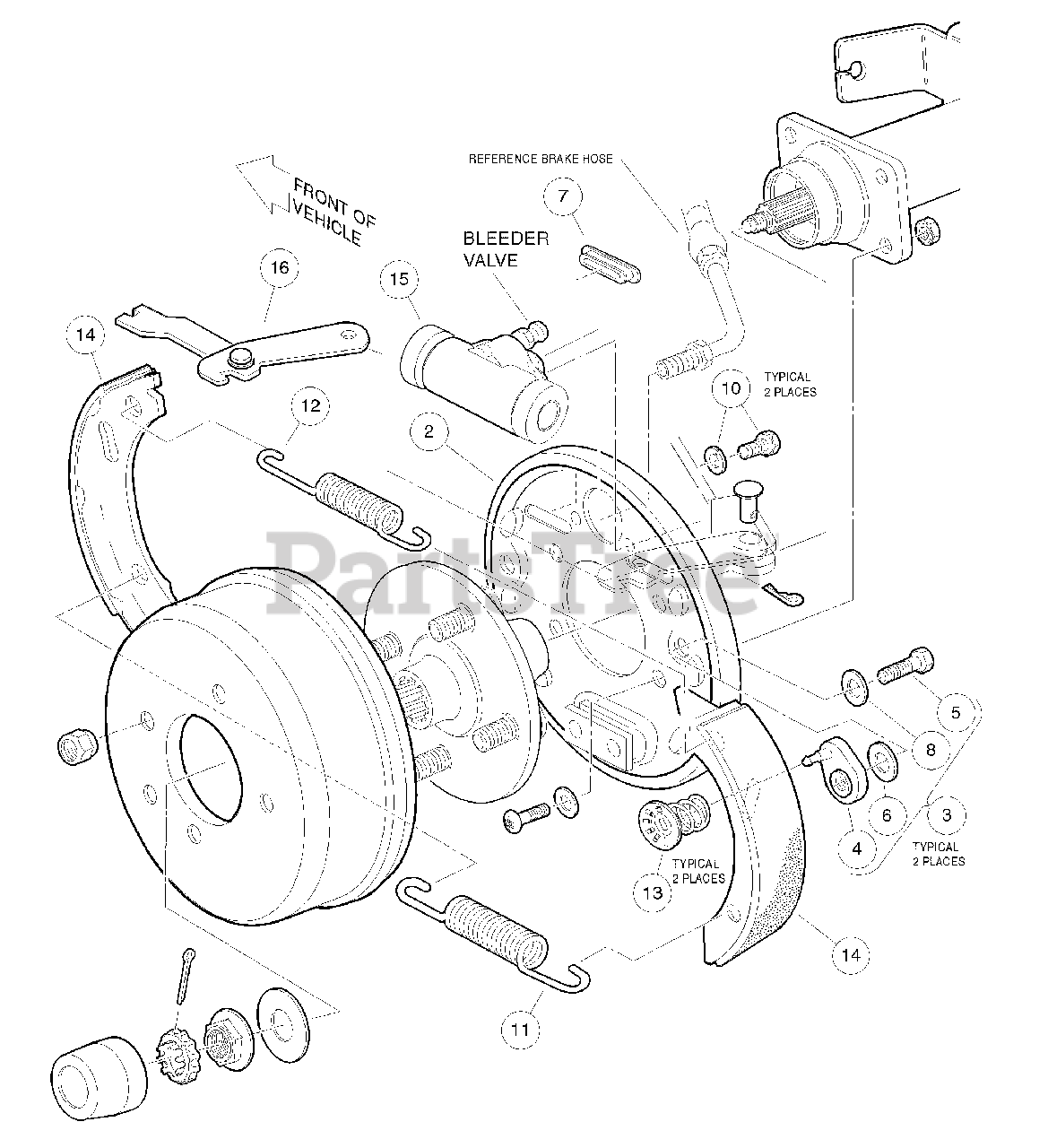

Rear Brake Assembly (Part A) Parts Diagram

  • Title

1

Husqvarna 603000719

Assembly, Brake Cluster LH

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000739

Backing Plate Asm

$

$

Not available

3

Husqvarna 603000741

Kit, Axle Adjuster

Note: (includes items 4 through 8)

$

$

Not available

4

Husqvarna 603000740

Adjuster

$

$

Not available

5

Husqvarna 603000743

Bolt, 1/4-28 UNF X 31

$

$

Not available

6

Husqvarna 603000744

Washer

$

$

Not available

7

Husqvarna 603000745

Dust Cover

$

$

Not available

8

Washer, 1/4 Flat

$

$

Not available

9

Husqvarna 603000742

Kit, Axle Hardware

Note: (includes items 10 through 13)

$

$

Not available

10

Husqvarna 603000748

Bolt, Wheel Cylinder

$

$

Not available

11

Husqvarna 603000749

Spring, Shoe To Shoe, Lower

$

$

Not available

12

Husqvarna 603000750

Spring, Shoe To Shoe, Upper

$

$

Not available

13

Husqvarna 603000751

Shoe Hold Down

$

$

Not available

14

Husqvarna 603000746

Shoe Kit, Axle Set

$

$

Not available

15

Husqvarna 603000752

Wheel Cylinder Assembly 0875 Dia

$

$

Not available

16

Husqvarna 603000754

Park Brake Assembly, Left-Hand

$

$

Not available

17

Husqvarna 603000720

Assembly, Brake Cluster RH

Note: (includes items 18 through 32)

$

$

Not available

18

Husqvarna 603000739

Backing Plate Asm

$

$

Not available

19

Husqvarna 603000741

Kit, Axle Adjuster

Note: (includes items 20 through 24)

$

$

Not available

20

Husqvarna 603000740

Adjuster

$

$

Not available

21

Husqvarna 603000743

Bolt, 1/4-28 UNF X 31

$

$

Not available

22

Husqvarna 603000744

Washer

$

$

Not available

23

Husqvarna 603000745

Dust Cover

$

$

Not available

24

Washer, 1/4 Flat

$

$

Not available

25

Husqvarna 603000742

Kit, Axle Hardware

Note: (includes items 26 through 29)

$

$

Not available

26

Husqvarna 603000748

Bolt, Wheel Cylinder

$

$

Not available

27

Husqvarna 603000749

Spring, Shoe To Shoe, Lower

$

$

Not available

28

Husqvarna 603000750

Spring, Shoe To Shoe, Upper

$

$

Not available

29

Husqvarna 603000751

Shoe Hold Down

$

$

Not available

30

Husqvarna 603000746

Shoe Kit, Axle Set

$

$

Not available

31

Husqvarna 603000752

Wheel Cylinder Assembly 0875 Dia

$

$

Not available

32

Husqvarna 603000753

Park Brake Assembly, Right-Hand

$

$
