HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) STARTER/GENERATOR ASSEMBLY - GASOLINE VEHICLES Parts Diagram

4x2 Utility Vehicle

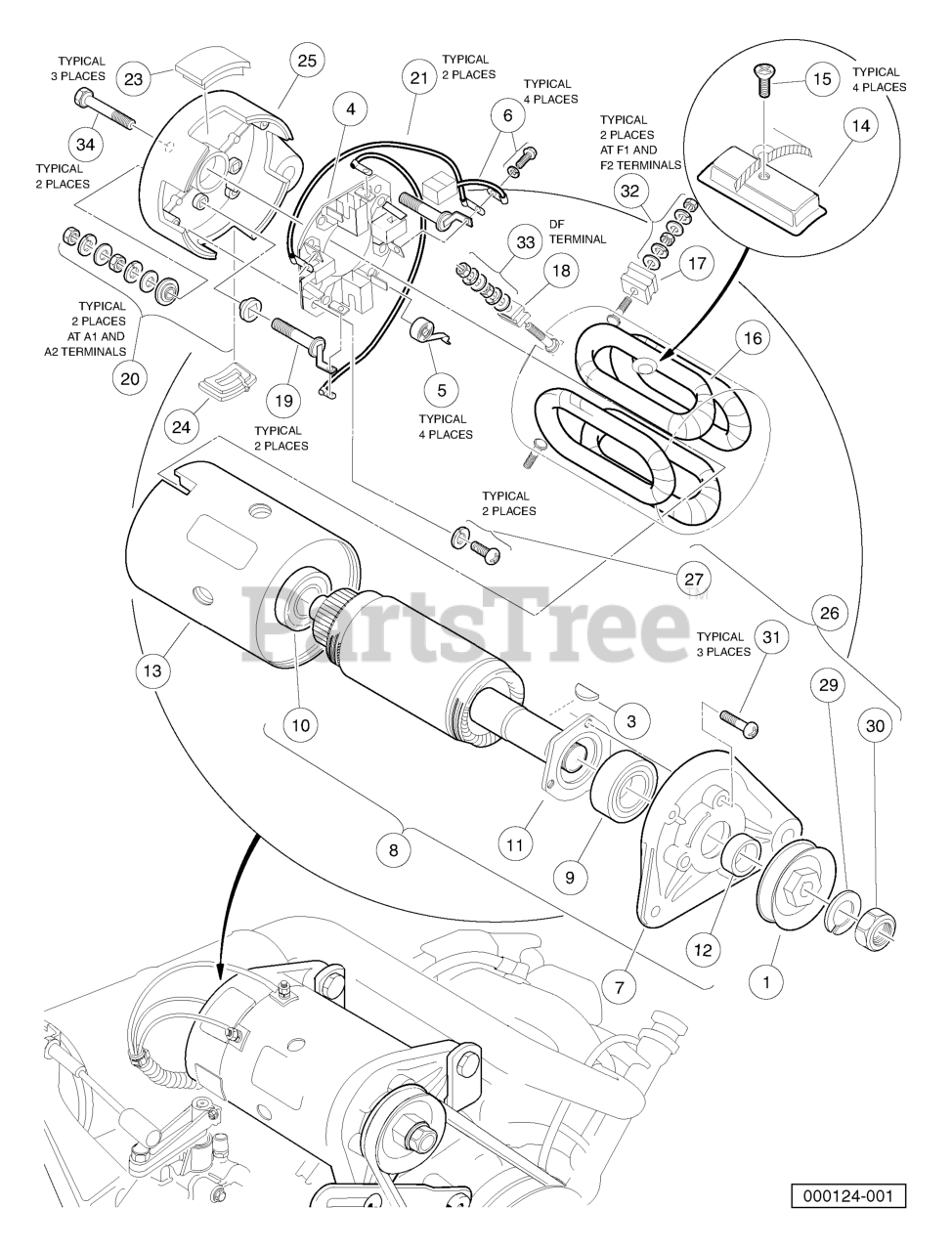

STARTER/GENERATOR ASSEMBLY - GASOLINE VEHICLES Parts Diagram

  • Title

10

Husqvarna 603000165

BEARING, COMMUTATOR BALL

$

$

Not available

2

Husqvarna 603000516

STARTER-GENERATOR (CW)

$

$

Not available

33

Husqvarna 603000546

NUT & WASHER SET

$

$

Not available

9

Husqvarna 603000163

BEARING

$

$

Not available

25

Husqvarna 603000543

REAR BRACKET (CW)

$

$

Not available

4

Husqvarna 603000456

BRUSH HOLDER ASSEMBLY (CW)

$

$

Not available

6

Husqvarna 603000529

BRUSH & SCREW SET (CW)

$

$

Not available

32

Husqvarna 603000545

NUT & WASHER SET

$

$

Not available

3

Husqvarna 603000164

KEY, STARTER GENERATOR

$

$

Not available

15

Husqvarna 603000535

SCREW SET

$

$

Not available

26

Husqvarna 603000544

NUT & SCREW SET

$

$

Not available

7

Husqvarna 603000530

FRONT BRACKET

$

$

Not available

17

Husqvarna 603000537

F INSULATOR SET

$

$

Not available

18

Husqvarna 603000538

DF INSULATOR

$

$

Not available

20

Husqvarna 603000540

SCREW & MOLD ASSEMBLY SET

$

$

Not available

1

Husqvarna 603000221

PULLEY, STARTER GENERATOR

$

$

Not available

11

Husqvarna 603000531

RETAINER

$

$

Not available

22

Husqvarna 603000542

COVER SET

$

$

Not available

27

Husqvarna 603000574

BRUSH HOLDER ASM SCREW

$

$

Not available

19

Husqvarna 603000539

A CONNECTOR (CW)

$

$

Not available

16

Husqvarna 603000536

FIELD STATOR COIL ASSEMBLY

$

$

Not available

34

Husqvarna 603000548

THROUGH BOLT SET

$

$

Not available

5

Husqvarna 603000547

BRUSH SPRING SET

$

$

Not available

12

Husqvarna 603000609

SPACER

$

$

Not available

21

Husqvarna 603000541

BRUSH CONNECTOR ASSEMBLY (CW)

$

$

Not available

14

Husqvarna 603000534

POLE SET

$

$

Not available

13

Husqvarna 603000533

FIELD COIL HOUSING

$

$

Not available
