HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Steering Column Parts Diagram

4x2 Utility Vehicle

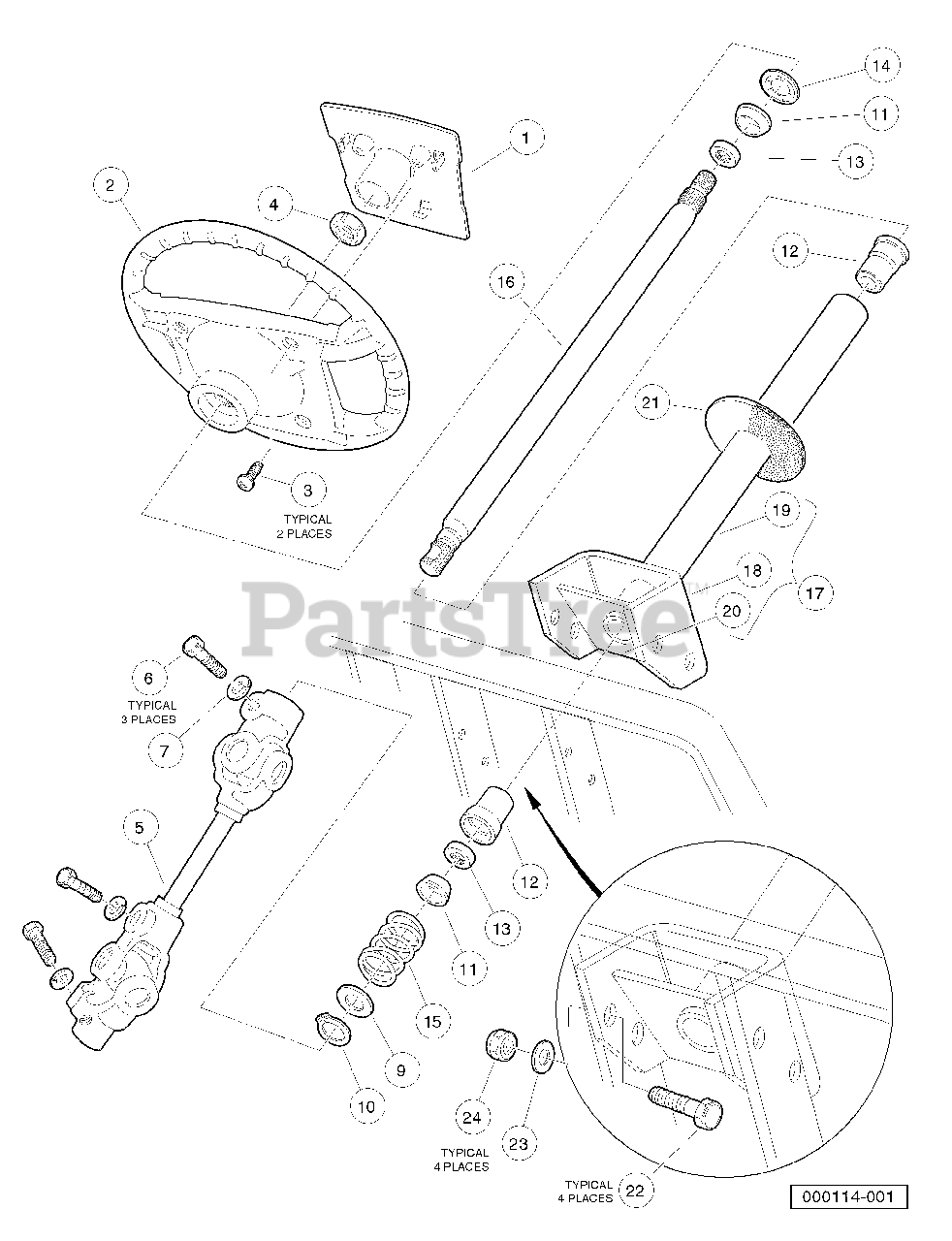

Steering Column Parts Diagram

  • Title

1

Husqvarna 603000284

Plate, Scorecard

$

$

Not available

2

Husqvarna 603000280

Wheel, Steering

$

$

Not available

3

Husqvarna 603000367

Screw, #12-14 X 0.625

$

$

Not available

4

Husqvarna 603000389

Nut, 5/8-18 Nylon Insert Jam

$

$

Not available

5

Husqvarna 603000637

Yoke Assembly

Note: (includes items 6 and 7)

$

$

Not available

6

Husqvarna 603000386

Bolt, Hex-Head, 8mm X 1.25 - 30

$

$

Not available

7

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

8

Husqvarna 603000640

Steering Column

Note: (includes items 9 through 17)

$

$

Not available

9

Husqvarna 603000147

Washer, 0.675 ID X 1.19 OD

$

$

Not available

10

Husqvarna 603000148

Ring, 0.579 Internal Retaining

$

$

Not available

11

Husqvarna 603000212

Wedge, Molded

$

$

Not available

12

Husqvarna 603000213

Seat, Plastic Bearing

$

$

Not available

13

Husqvarna 603000216

Bearing, Ball

$

$

Not available

14

Husqvarna 603000217

Ring, Retaining

$

$

Not available

15

Husqvarna 603000218

Spring, Steering Shaft

$

$

Not available

16

Husqvarna 603000390

Shaft Steering Column

$

$

Not available

17

Husqvarna 603000639

Column Weld Assy, Steering

Note: (includes items 18 through 20)

$

$

Not available

18

Husqvarna 603004416

Column Mtg Bracket

$

$

Currently unavailable

19

Husqvarna 603004417

Steering Column

$

$

Currently unavailable

20

Husqvarna 603004418

Steering Bracket Brace

$

$

Currently unavailable

21

Husqvarna 603000868

Boot, Steering Column Round

$

$

Not available

22

Husqvarna 603000053

Screw, 3/8-16 X 1.00 Hex-Head Cap

$

$

Not available

23

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

24

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
