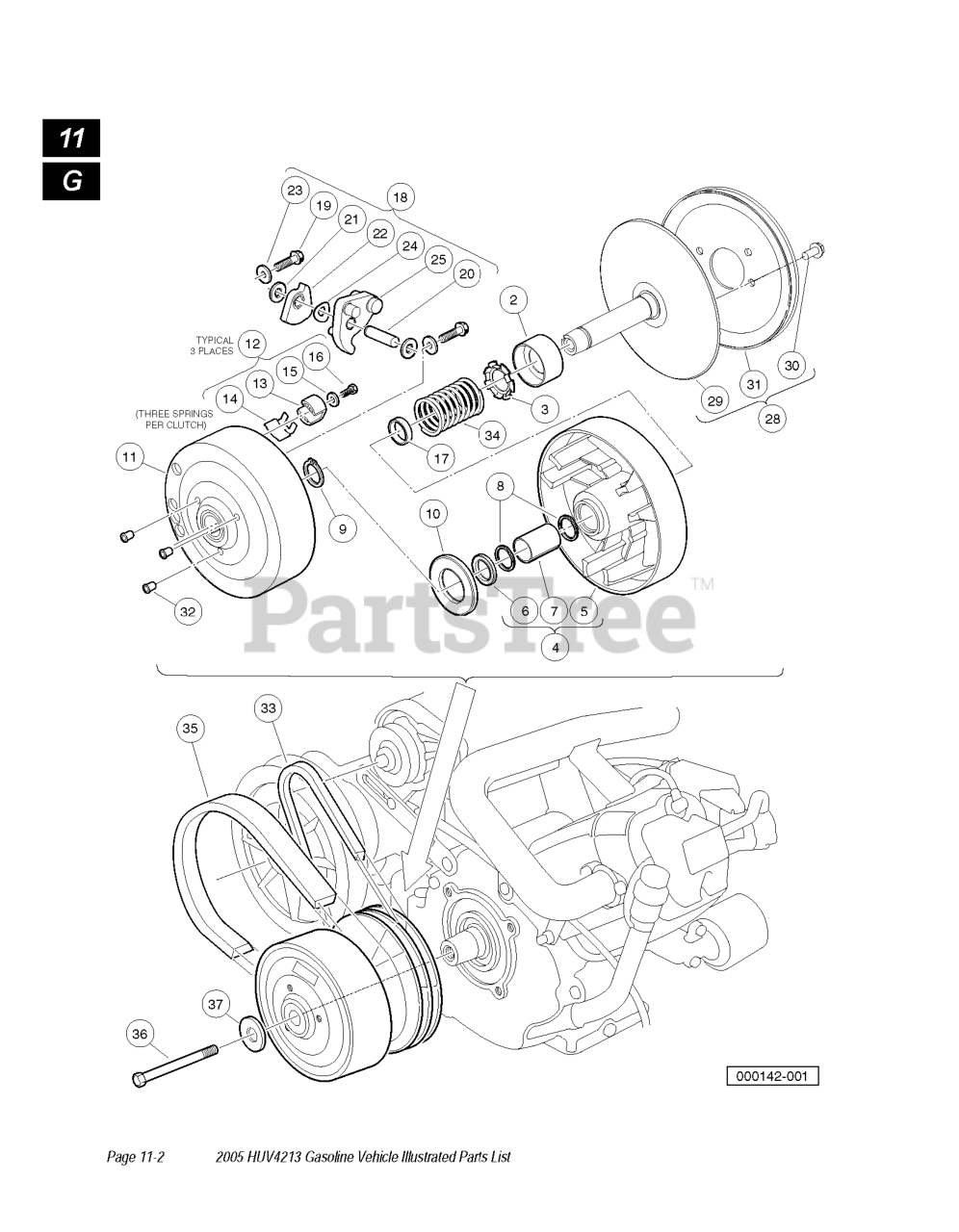

HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) CLUTCH Parts Diagram

4x2 Utility Vehicle

CLUTCH Parts Diagram

  • Title

6

Husqvarna 603000198

RETAINER

$

$

Not available

36

Husqvarna 603004380

SCREW 3/8-24X5.5 HEX LOC PTCH

$

$

Not available

13

Husqvarna 603000203

DRIVER, DRIVE CLUTCH

$

$

Not available

30

Husqvarna 603000220

SCREW

$

$

Not available

26

Husqvarna 603000473

FIXED FACE DRIVE

$

$

Not available

17

Husqvarna 603000285

SPACER, FIXED FACE SHAFT

$

$

Not available

18

Husqvarna 603000369

DRIVE CLUTCH WEIGHT KIT DS OHV

$

$

Not available

1

Husqvarna 603000517

DRIVE CLUTCH ASSY. FE 400

$

$

Not available

27

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Not available

33

Husqvarna 603000589

BELT, STARTER-GENERATOR

$

$

Not available

37

Husqvarna 603003617

WASHER, 3/8 TYPE B FLAT

$

$

Not available

19

Husqvarna 603003068

SCREW, 1/4-20 X 1.00 HEX HEAD

$

$

Not available

4

Husqvarna 603000197

MOVABLE FACE ASSEMBLY

$

$

Not available

2

Husqvarna 603000195

BEARING IDLER

$

$

Not available

10

Husqvarna 603000201

WASHER, THRUST

$

$

Not available

24

Husqvarna 603000282

WASHER, WAVE

$

$

Not available

16

Husqvarna 603000092

SCREW, # 10-24 X .50 HEX

$

$

Not available

35

Husqvarna 603000830

DRIVE BELT

$

$

Not available

34

Husqvarna 603000828

SPRING DRIVE CLUTCH FE400

$

$

Not available

12

Husqvarna 603000227

DRIVE CLUTCH BUTTON KIT

$

$

Not available

3

Husqvarna 603000196

RETAINER, SPRING

$

$

Not available

21

Husqvarna 603000204

WASHER

$

$

Not available

11

Husqvarna 603000202

DRIVE HUB ASSY

$

$

Not available

9

Husqvarna 603000200

RING .810" INTERNAL

$

$

Not available

15

Husqvarna 603000051

WASHER FLAT

$

$

Not available

8

Husqvarna 603000199

RING, SPIRAL BACKUP

$

$

Not available

14

Husqvarna 603000219

SPRING, DRIVE BUTTON

$

$

Not available
