HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) ELECTRICAL 2 Parts Diagram

4x2 Utility Vehicle

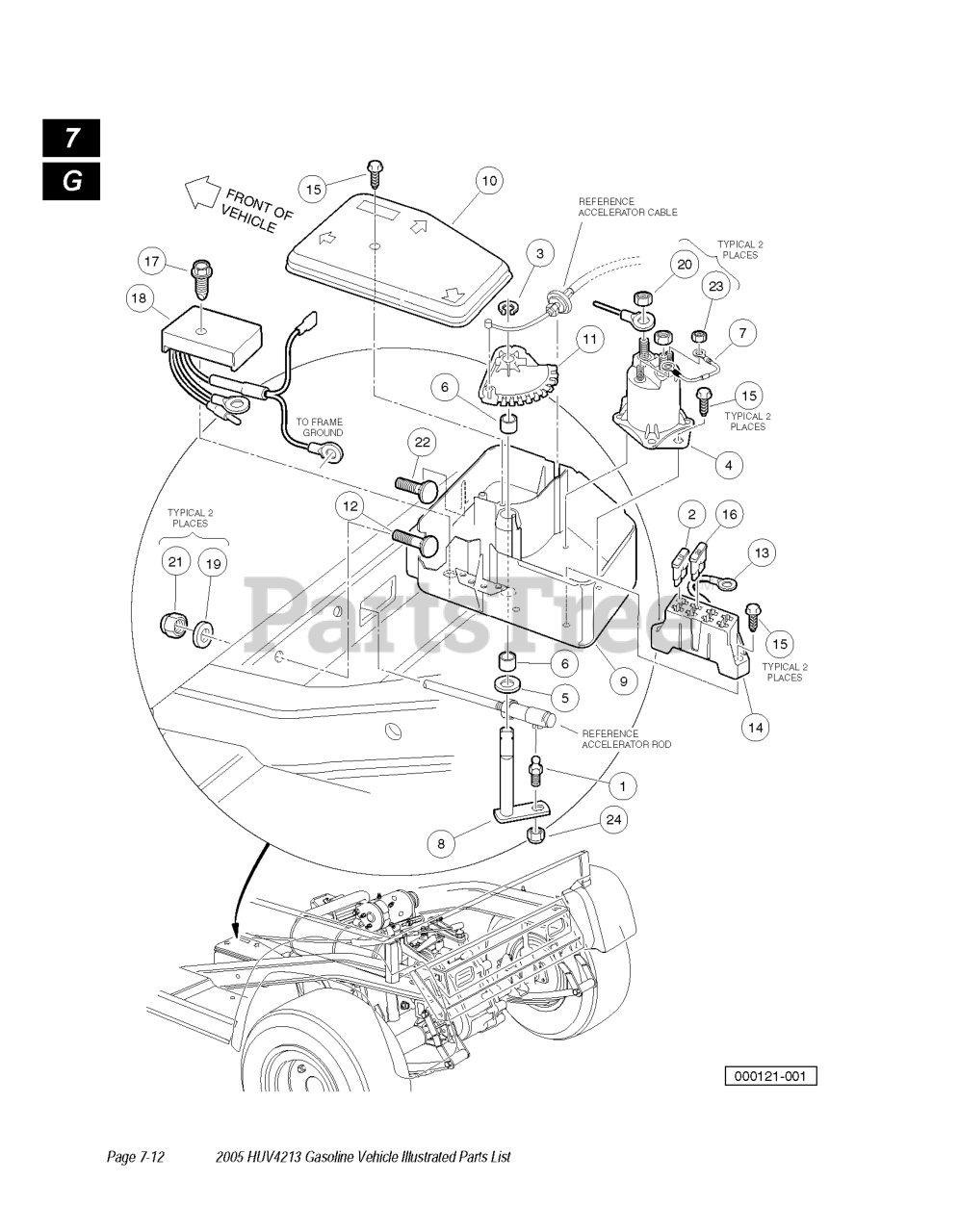

ELECTRICAL 2 Parts Diagram

  • Title

16

Husqvarna 603000293

FUSE - 20 AMP

$

$

Not available

5

Husqvarna 603000204

WASHER

$

$

Not available

23

Husqvarna 603000084

NUT, #10-32 HEX

$

$

Not available

1

Husqvarna 603000117

STUD

$

$

Not available

22

Husqvarna 603000082

BOLT 5/16-18 X 1.5

$

$

Not available

17

Husqvarna 603000526

SCREW, 1/4-15 X .50 HI-LO HEX

$

$

Not available

13

Husqvarna 603000266

WIRE ASSY, #10 RED

Note: RED

$

$

Not available

10

Husqvarna 603000252

COVER, OHV ELECTRIC BOX

$

$

Not available

15

Husqvarna 603000268

SCREW, #12-16 X .625 HI-LO

$

$

Not available

2

Husqvarna 603000135

10 AMP FUSE

$

$

Not available

21

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

24

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

4

Husqvarna 603000180

SOLENOID, 12 VOLT

$

$

Not available

19

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

18

Husqvarna 603002287

ASM, VOLTAGE REGULATOR

$

$

Not available

9

Husqvarna 603000251

BOX, ELECTRICAL COMPONENT

$

$

Not available

3

Husqvarna 603000177

RING

$

$

Not available

14

Husqvarna 603000267

FUSE BLOCK

$

$

Not available

7

Husqvarna 603000238

ASM, DIODE

$

$

Not available

11

Husqvarna 603000253

CAM, ELECTRIC BOX

$

$

Not available

20

Husqvarna 603000066

NUT, 5/16-18 HEX

$

$

Not available

8

Husqvarna 603000249

BELL CRANK AND SHAFT ASSY

$

$

Not available

12

Husqvarna 603000257

BOLT,5/16-18 X 2.0 RD HD SQ NK

$

$

Not available

6

Husqvarna 603000215

BUSHING, SECONDARY WGHT SPLIT

$

$

Not available
