HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) FRONT BODY Parts Diagram

4x2 Utility Vehicle

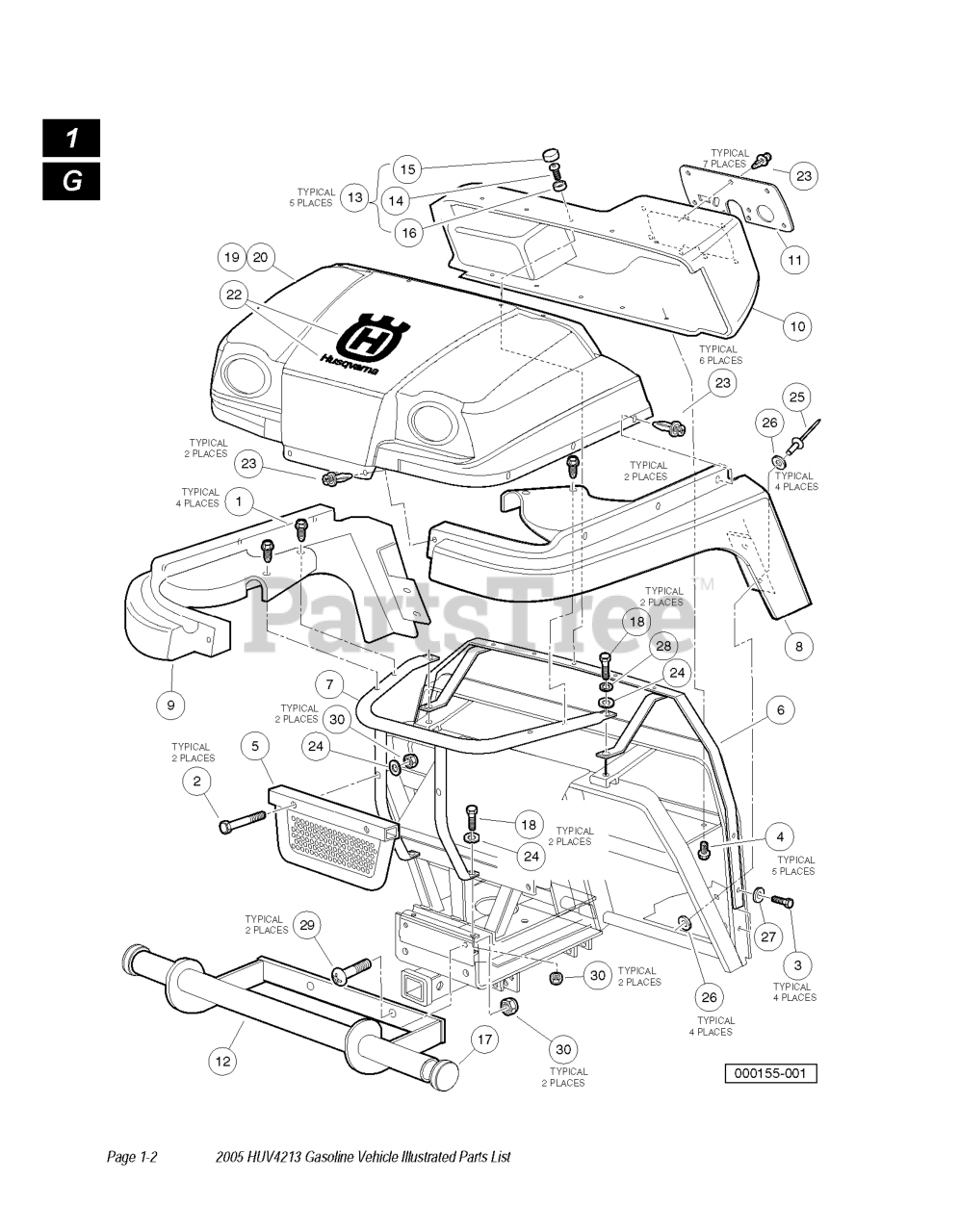

FRONT BODY Parts Diagram

  • Title

14

Husqvarna 603000696

SCREW 1/4-20X.75 TORX PN HD

$

$

Not available

7

Husqvarna 603000646

SUPPORT, LOWER FENDER

Note: LOWERS

$

$

Not available

27

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

2

Husqvarna 603000115

SCREW HEX CAP

$

$

Not available

17

Husqvarna 603000772

CAP-TUBE

$

$

Not available

20

Husqvarna 603001679

COWL, OEM 1299, ORANGE

$

$

Not available

22

Husqvarna 603001793

DECAL HOOD

$51.99

$

In Stock, only 1 left!

0

21

Husqvarna 603002648

FLOORMAT, MOLDED -UTL

$

$

Not available

29

Husqvarna 603000077

SCREW 5/16-18 X 1.25 TRUSS HD

$

$

Not available

9

Husqvarna 603000675

FENDER, RIGHT FRONT

Note: RIGHT

$

$

Not available

15

Husqvarna 603000729

CAP 1/4" PLASTIC SCREW HEAD

$

$

Not available

26

Husqvarna 603000051

WASHER FLAT

$

$

Not available

25

Husqvarna 603000067

RIVET, 3/16 X .5 ALUM POP

$

$

Not available

3

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

28

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

6

Husqvarna 603000645

SUPPORT, UPPER COWL

Note: UPPER

$

$

Not available

16

Husqvarna 603000737

WASHER 1/4 ID SCALLOPED PLAST

$

$

Not available

19

Husqvarna 603001678

Cowl, Camo

$475.99

$

Usually ships in 3-10 days

0

10

Husqvarna 603000677

DASH BOARD

$

$

Not available

5

Husqvarna 603000644

GRILL ASSY

$

$

Not available

24

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

11

Husqvarna 603000707

PANEL, DASH

$

$

Not available

1

Husqvarna 603000110

SCREW, HEX WASH

$

$

Not available

13

Husqvarna 603000770

KIT - DASH HDWR

$

$

Not available

18

Husqvarna 603000791

SCREW, 5/16-18 X 2.50 HEX CAP

$

$

Not available

4

Husqvarna 603000394

SCREW, #12 X .50 TYP AB HX WSH

$

$

Not available

8

Husqvarna 603000673

FENDER, LEFT FRONT

Note: LEFT

$

$

Not available

23

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

30

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

12

Husqvarna 603000768

BUMPER ASSEMBLY

$

$

Not available
