HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) FRONT SUSPENSION Parts Diagram

4x2 Utility Vehicle

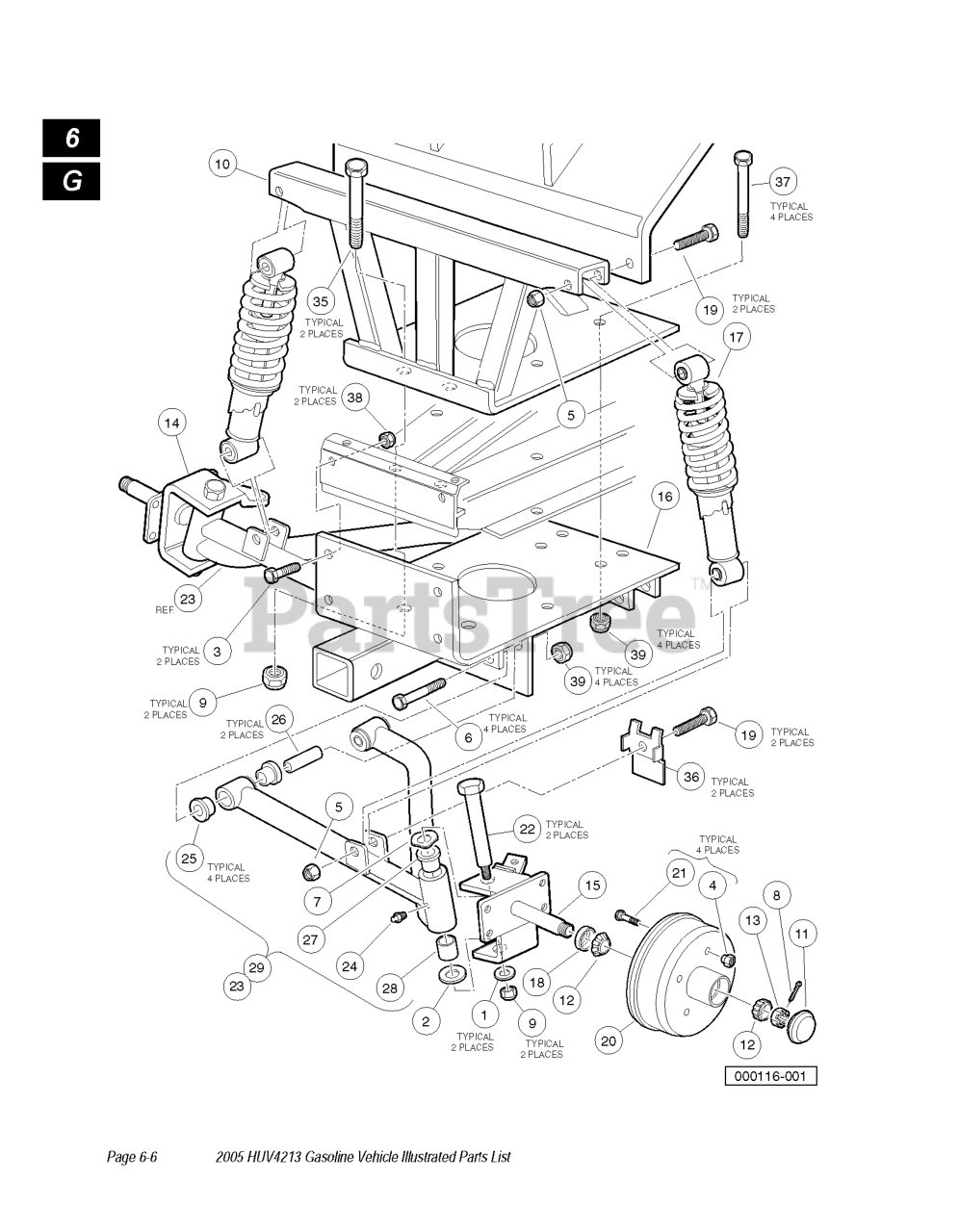

FRONT SUSPENSION Parts Diagram

  • Title

22

Husqvarna 603000738

KING PIN BOLT ASM

$

$

Not available

23

Husqvarna 603000763

RIGHT A-ARM ASM

$

$

Not available

12

Husqvarna 603000642

BEARING, TAPERED

$

$

Not available

19

Husqvarna 603000686

SCREW, 7/16-14 X 2.50 HEX CAP

$

$

Not available

36

Husqvarna 603000792

STEERING STOP MTG PLATE

$

$

Not available

31

Husqvarna 603000290

BUSHING, URETHANE

$

$

Not available

21

Husqvarna 603000189

LUG STUD

$

$

Not available

33

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

20

Husqvarna 603000724

FRONT HUB

$

$

Not available

26

Husqvarna 603000783

A-ARM SLEEVE

$

$

Not available

3

Husqvarna 603000116

SCREW HEX CAP

$

$

Not available

7

Husqvarna 603000292

WASHER, 1.125 OD WAVE

$

$

Not available

29

Husqvarna 603000764

LEFT A-ARM ASM

$

$

Not available

35

Husqvarna 603000784

SCREW, 1/2-20 X 5.0 HEX CAP

$

$

Not available

38

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

14

Husqvarna 603000647

ASM, SPINDLE - RH

Note: RH

$

$

Not available

2

Husqvarna 603000105

BEARING THRUST

$

$

Not available

27

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

25

Husqvarna 603000290

BUSHING, URETHANE

$

$

Not available

1

Husqvarna 603000495

WASHER, 1/2 TYPE A FLAT

$

$

Not available

18

Husqvarna 603000685

SEAL, DOUBLE LIP

$

$

Not available

16

Husqvarna 603000649

SUSPENSION MEG PLATE

$

$

Not available

6

Husqvarna 603000291

SCREW, 3/8-16 X 2.75 HX HD CAP

$

$

Not available

17

Husqvarna 603000650

SHOCK ABSORBER, COIL OVER

$

$

Not available

39

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

15

Husqvarna 603000648

ASM, SPINDLE - LH

Note: LH

$

$

Not available

28

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available

13

Husqvarna 603000643

NUT, 1.00-14 SLOTTED HEX JAM

$

$

Not available

30

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 603000024

NUT 1/2-20 LUG

$

$

Not available

5

Husqvarna 603000233

LOCKNUT

$

$

Not available

8

Husqvarna 603000525

PIN-COTTER - .312 X 1.25"

$

$

Not available

24

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 603000783

A-ARM SLEEVE

$

$

Not available

11

Husqvarna 603000641

DUST COVER

$

$

Not available

34

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available

10

Husqvarna 603000638

SHOCK TOWER

$

$

Not available

37

Husqvarna 603000073

BOLT, HEX HEAD

$

$

Not available

9

Husqvarna 603000578

LOCKNUT, 1/2-20 NYLON INSERT

$

$

Not available
