HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) HYDRAULIC BRAKE SYSTEM Parts Diagram

4x2 Utility Vehicle

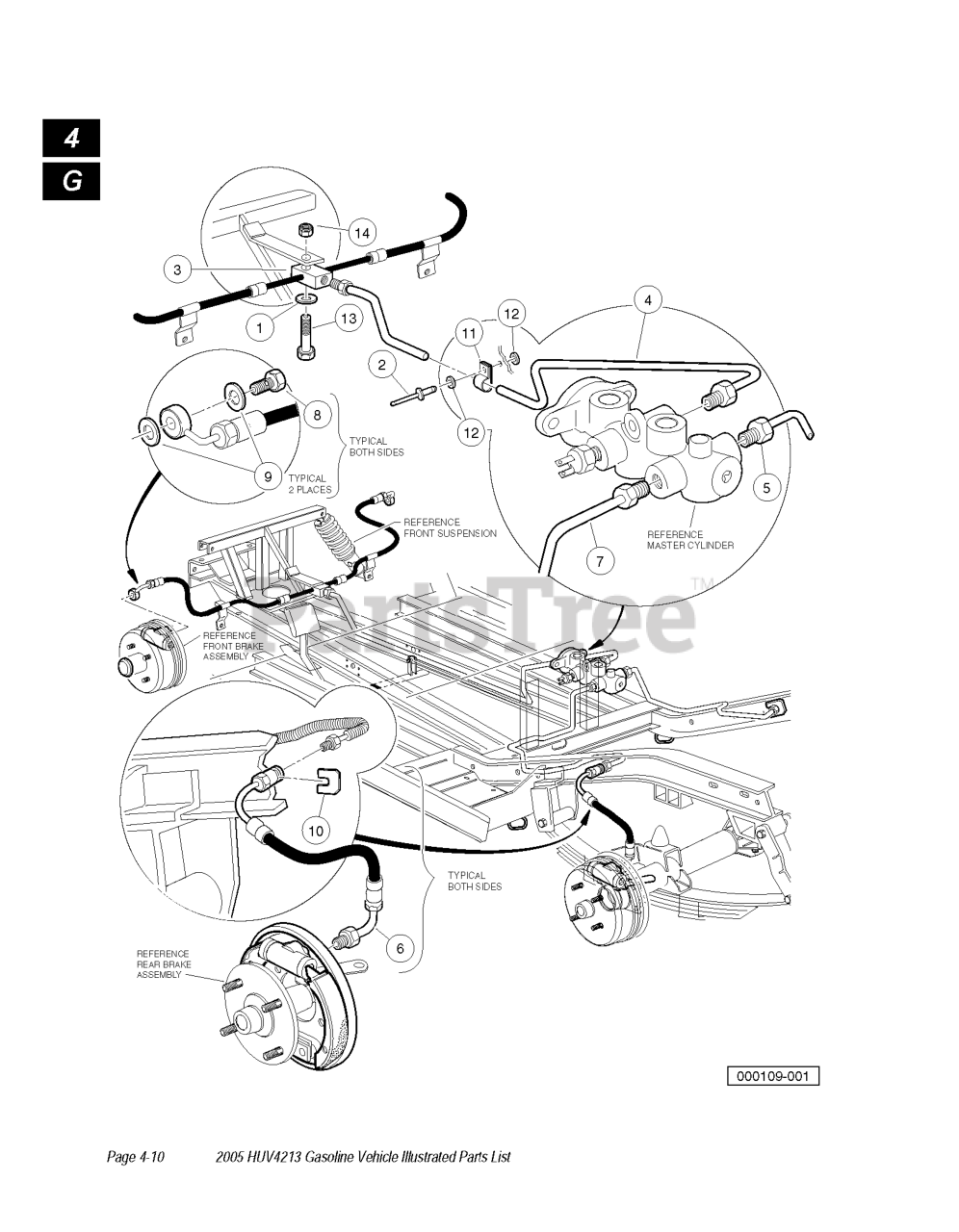

HYDRAULIC BRAKE SYSTEM Parts Diagram

  • Title

8

Husqvarna 603000725

BANJO BOLT

$

$

Not available

4

Husqvarna 603000714

LINE HYD REAR BRAKE FRT

Note: REAR

$

$

Not available

3

Husqvarna 603000713

HOSE HYD FRT BRAKE

Note: FRONT

$

$

Not available

14

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

7

Husqvarna 603000723

LINE HYD REAR BRAKE LS

Note: REAR

$

$

Not available

5

Husqvarna 603000715

LINE HYD REAR BRAKE RS

Note: RH

$

$

Not available

6

Husqvarna 603000716

HOSE FLEX REAR

Note: REAR

$

$

Not available

9

Husqvarna 603000730

COPPER WASHER

$

$

Not available

2

Husqvarna 603000214

Rivet, 3/16 Diameter Drive

$

$

Currently unavailable

1

Husqvarna 603000194

WASHER

$

$

Not available

11

Husqvarna 603000733

P-CLAMP

$

$

Not available

12

Husqvarna 603000051

WASHER FLAT

$

$

Not available

13

Husqvarna 603000079

SCREW, 1/4-20 X 1.25 HX HD CAP

$

$

Not available

10

Husqvarna 603000732

HORSE SHOE CLAMP

$

$

Not available
