HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) LATCH PLATE Parts Diagram

4x2 Utility Vehicle

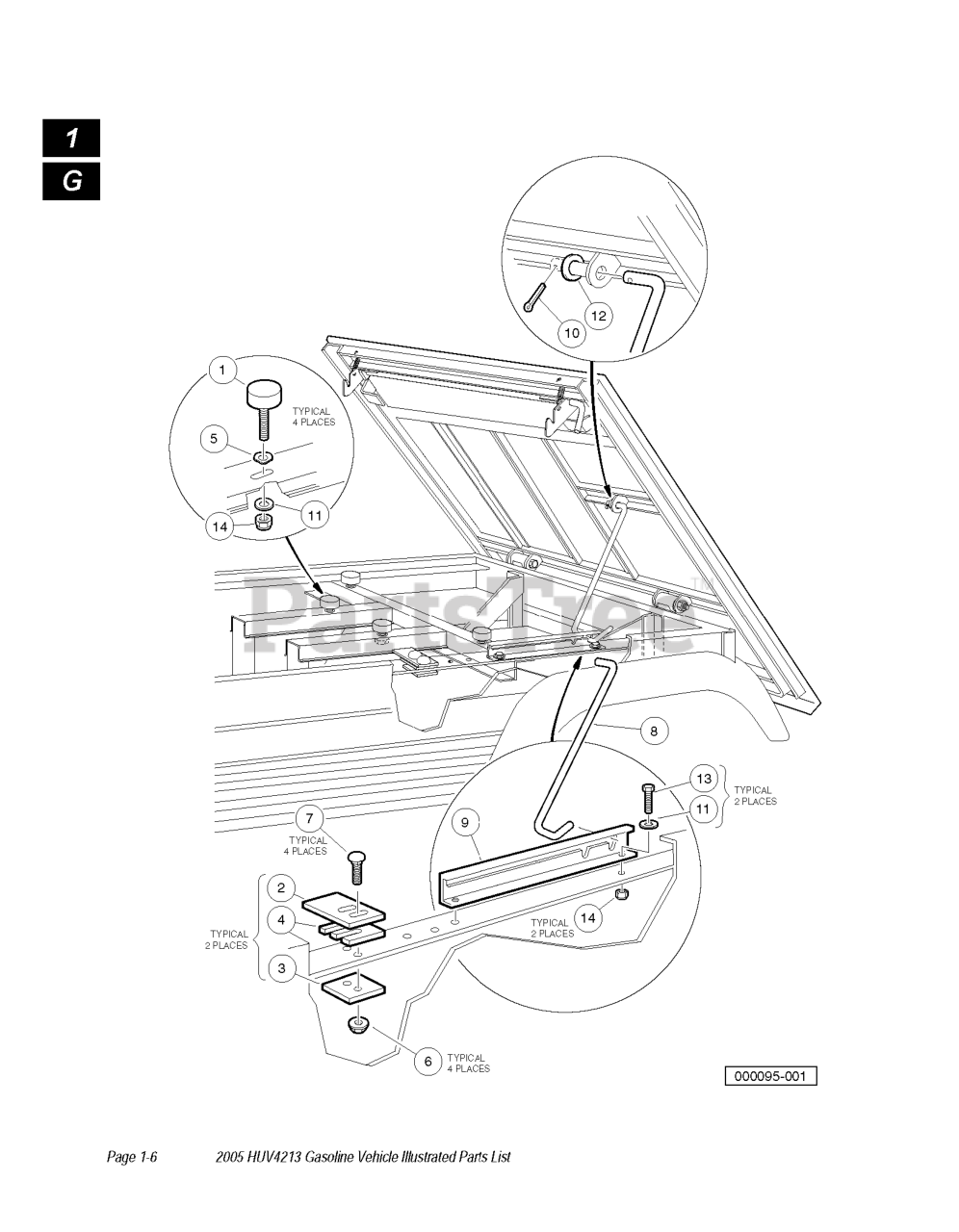

LATCH PLATE Parts Diagram

  • Title

10

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

6

Husqvarna 603000521

LOCKNUT, 1/4-20 HEX WHIZ

$

$

Not available

4

Husqvarna 603000278

LATCH PLATE SHIM

$

$

Not available

1

Husqvarna 603000113

BUMPER, BRAKE PEDAL RUBBER

$

$

Not available

8

Husqvarna 603000878

ROD, PROP

$

$

Not available

2

Husqvarna 603000246

LATCH PLATE

$

$

Not available

3

Husqvarna 603000276

PLATE, LATCH SUPPORT

$

$

Not available

7

Husqvarna 603000613

BOLT, 1/4-20 X 1.0 RD HD SQ NK

$

$

Not available

11

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

5

Husqvarna 603000282

WASHER, WAVE

$

$

Not available

13

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

14

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

9

Husqvarna 603002763

TRACK, PROP ROD

$

$

Not available

12

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available
