HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) MAINTENANCE B Parts Diagram

4x2 Utility Vehicle

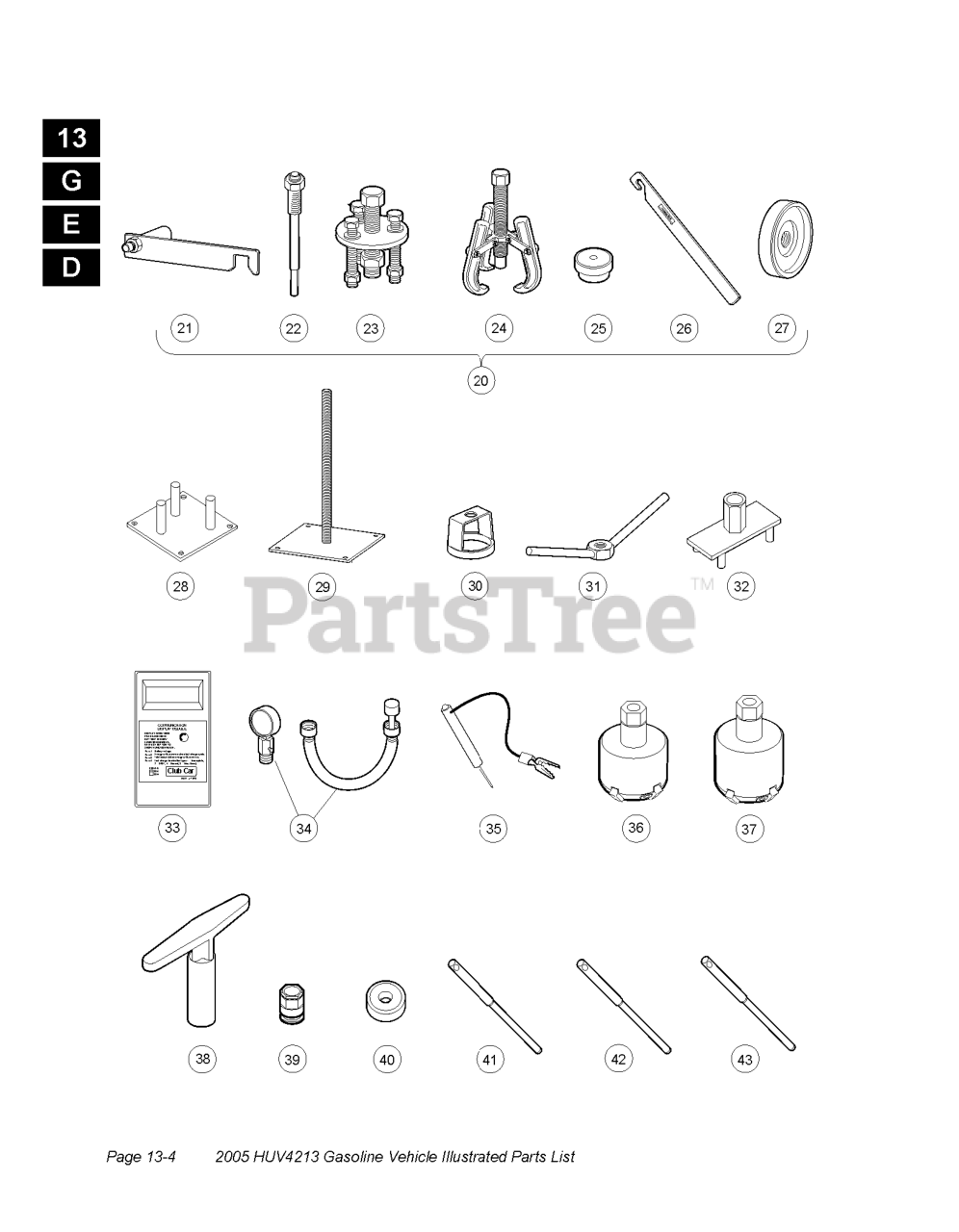

MAINTENANCE B Parts Diagram

  • Title

37

Husqvarna 603002936

CUTTER, VALVE SEAT, #115

$

$

Not available

42

Husqvarna 603002940

PILOT, 6.62 MM

$

$

Not available

24

Husqvarna 603001854

DRIVEN CLUTCH CAM PULLER

Note: For Kawasaki engines only.

$

$

Not available

41

Husqvarna 603002939

PILOT, 6.6 MM

$

$

Not available

36

Husqvarna 603002935

CUTTER, VALVE SEAT, #122

$

$

Not available

34

Husqvarna 603001864

COMPRESSION GUAGE AND ADAPTER

$

$

Not available

23

Husqvarna 603001853

CLUTCH DRIVE HUB PULLER

Note: For Kawasaki engines only.

$

$

Not available

40

Husqvarna 603001875

Cutter, Valve Seat, 60 Degree (requires item 59)

Note: "Requires item 51, for Honda GX620 Gasoline Engines."

$

$

Currently unavailable

27

Husqvarna 603001857

PRESS WELDMENT

Note: For Kawasaki engines only.

$

$

Not available

29

Husqvarna 603001860

TOOL-SPRING COMPRESSION BASE

Note: "For use with items 30 and 31, and for 4x4 vehicles."

$

$

Not available

30

Husqvarna 603001861

TOOL-SPRING COMPRESSION COLAR

Note: "For use with items 29 and 31, and for 4x4 vehicles."

$

$

Not available

21

Husqvarna 603001851

TOOL, CLUTCH ALIGNMENT

Note: For pre-unitized transaxle vehicles built prior to 1997 model year.

$

$

Not available

39

Husqvarna 603002938

ADAPTER, T-WRENCH

$

$

Not available

20

Husqvarna 603001850

C.C. CLUTCH TOOL KIT

$

$

Not available

31

Husqvarna 603001862

TOOL-SPRING COMPRESSION COLAR

Note: "For use with items 29 and 30, and for 4x4 vehicles."

$

$

Not available

43

Husqvarna 603002941

PILOT, 6.65 MM

$

$

Not available

26

Husqvarna 603001856

DRIVE CLUTCH HOLDER TOOL ASM.

Note: For Kawasaki engines only.

$

$

Not available

32

Husqvarna 603001859

TOOL-SPIDER PRIMARY

Note: For 4x4 vehicles.

$

$

Not available

25

Husqvarna 603001855

DRIVEN CLUTCH PULLER PLUG

Note: For Kawasaki engines only.

$

$

Not available

38

Husqvarna 603002938

ADAPTER, T-WRENCH

$

$

Not available

22

Husqvarna 603001852

TOOL, CLUTCH PULLER

Note: For Kawasaki engines only.

$

$

Not available

35

Husqvarna 603001867

CONTINUITY TESTER

$

$

Not available
