HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) REAR BODY TRIM Parts Diagram

4x2 Utility Vehicle

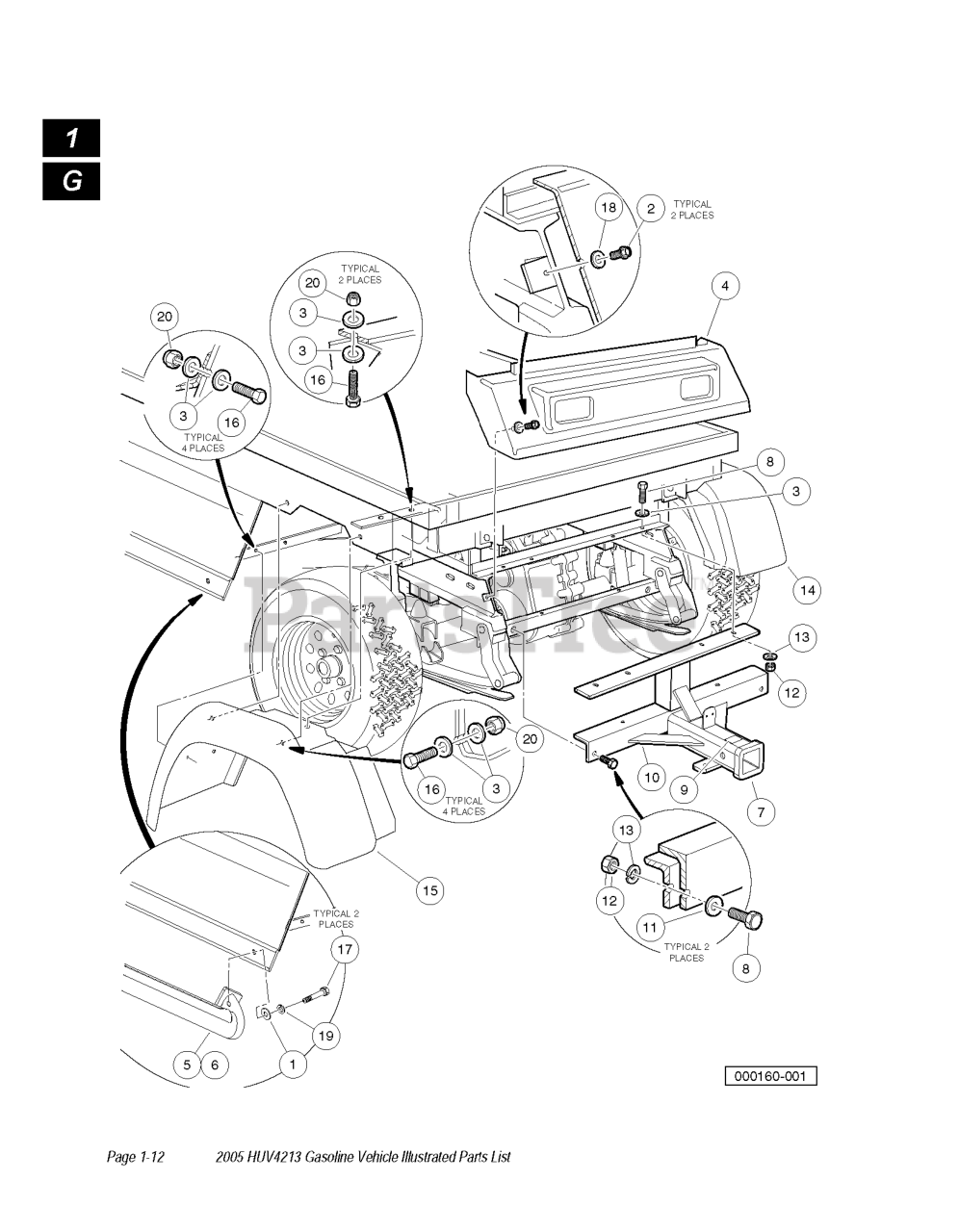

REAR BODY TRIM Parts Diagram

  • Title

20

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

8

Husqvarna 603000116

SCREW HEX CAP

$

$

Not available

15

Husqvarna 603002691

FENDER, LEFT REAR

$

$

Not available

9

Husqvarna 603000123

DECAL, TRAILER HITCH

$

$

Not available

14

Husqvarna 603002690

FENDER, RIGHT REAR

$

$

Not available

3

Husqvarna 603000222

WASHER

$

$

Not available

11

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

10

Husqvarna 603000769

RECEIVER HITCH WELD ASM

$

$

Not available

2

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

4

Husqvarna 603000262

TAIL SKIRT, CAI

$

$

Not available

16

Husqvarna 603000052

SCREW HEX

$

$

Not available

6

Husqvarna 603000694

SIDE STEP BAR

Note: ORANGE

$

$

Not available

1

Husqvarna 603000132

WASHER, 3/8 FLAT

$

$

Not available

7

Husqvarna 603000779

KIT, REAR RECEIVER

$

$

Not available

12

Husqvarna 603000066

NUT, 5/16-18 HEX

$

$

Not available

13

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

5

Husqvarna 603000693

SIDE STEP BAR

Note: BLACK

$

$

Not available

19

Husqvarna 603000056

WASHER,LOCK,HEL SP 3/8 REG

$

$

Not available

17

Husqvarna 603000053

SCREW, CAP, HEX HD 3/8-16X1.00

$

$

Not available

18

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available
