HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) REAR SUSPENSION Parts Diagram

4x2 Utility Vehicle

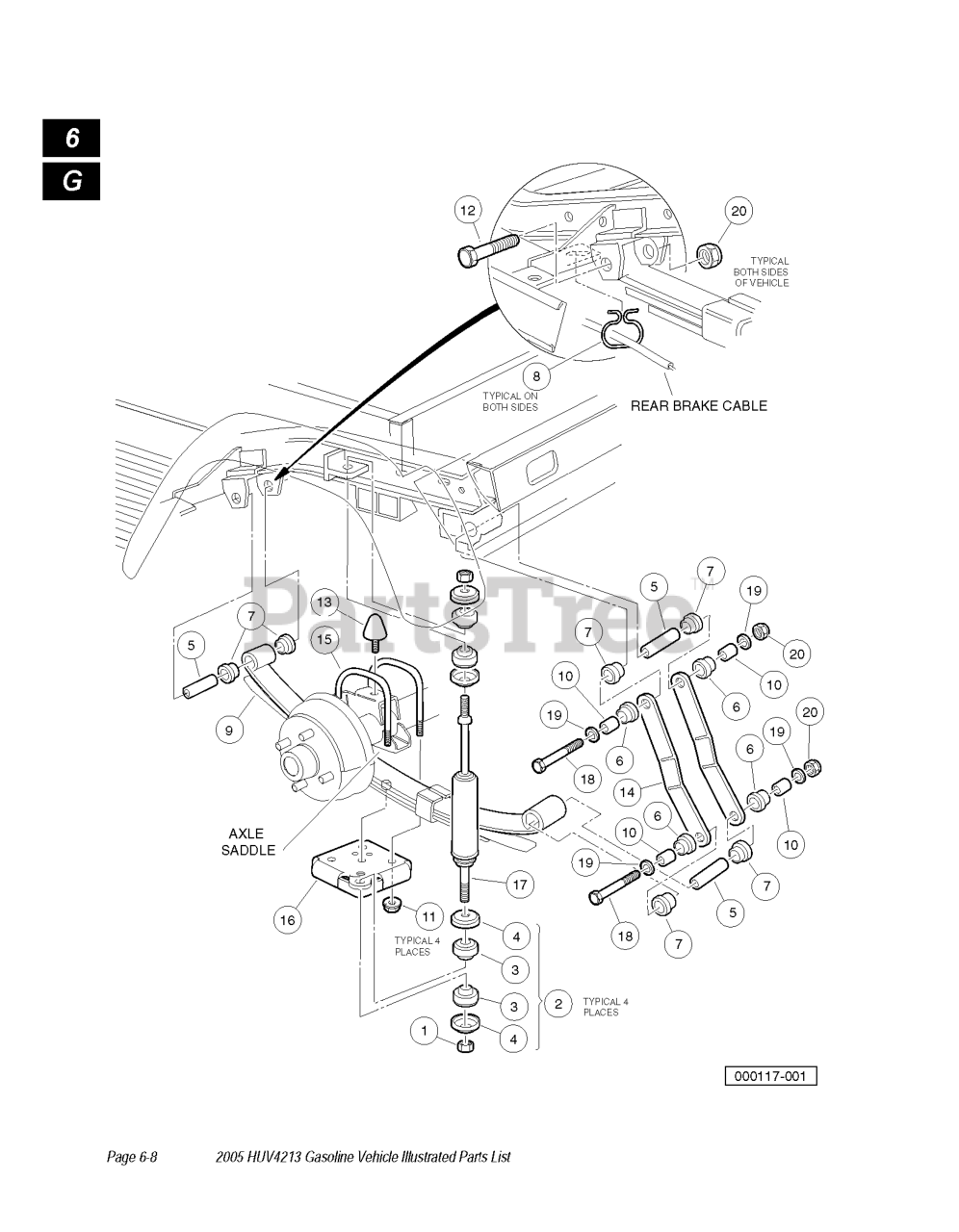

REAR SUSPENSION Parts Diagram

  • Title

15

Husqvarna 603000825

U-BOLT

$

$

Not available

16

Husqvarna 603000829

REINFORCED SPRING PAD

$

$

Not available

7

Husqvarna 603000263

BUSHING, URETHANE

$

$

Not available

18

Husqvarna 603000073

BOLT, HEX HEAD

$

$

Not available

20

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

10

Husqvarna 603000731

SPACER .38 ID X .500 OD

$

$

Not available

2

Husqvarna 603003022

SHOCK ABSORBER CUSHION KIT

$

$

Not available

19

Husqvarna 603003617

WASHER, 3/8 TYPE B FLAT

$

$

Not available

12

Husqvarna 603000782

SCREW, 3/8-16 X 3.50 HEX CAP

$

$

Not available

13

Husqvarna 603000799

STUD MOUNT

$

$

Not available

17

Husqvarna 603000831

SHOCK ABSORBER, REAR

$

$

Not available

11

Husqvarna 603000778

LOCKNUT 7/16-14 FLANGE DIMPLE

$

$

Not available

1

Husqvarna 603000104

NUT, 3/8-24 HEX

$

$

Not available

8

Husqvarna 603000577

HANGER, BRAKE CABLE, LG

$

$

Not available

5

Husqvarna 603000136

BUSHING - STEEL (GAS CAR)

$

$

Not available

14

Husqvarna 603000822

SHACKLE, REAR SPRING -GAS 272

$

$

Not available

6

Husqvarna 603000259

COMPRESSION MOUNT

$

$

Not available

9

Husqvarna 603000634

SPRING, 252 REAR LEAF SPRING

$

$

Not available
