HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) STARTER 2 Parts Diagram

4x2 Utility Vehicle

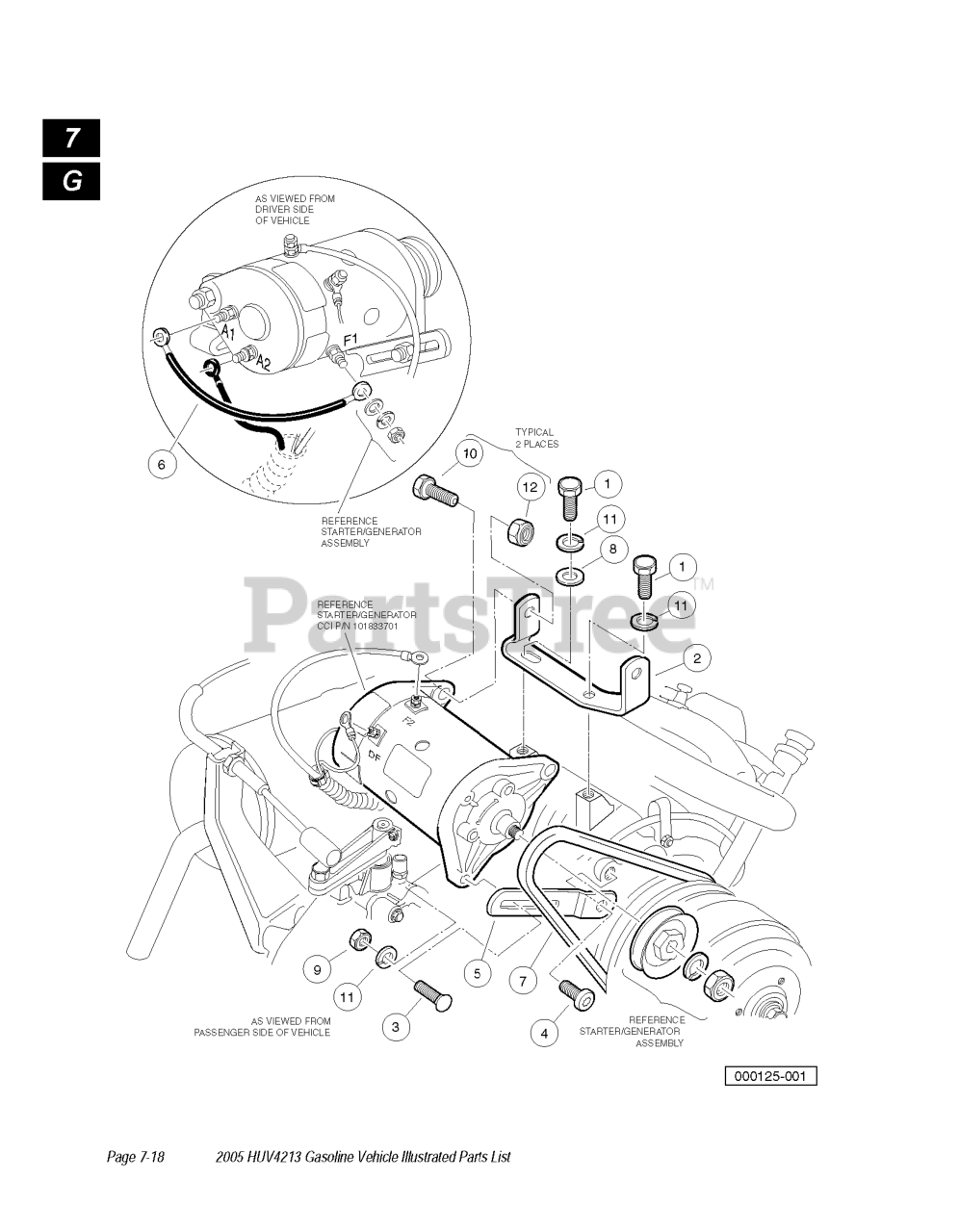

STARTER 2 Parts Diagram

  • Title

9

Husqvarna 603000066

NUT, 5/16-18 HEX

$

$

Not available

8

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

12

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

4

Husqvarna 603000277

SCREW, M8-1.25 X 18MM TORX

$

$

Not available

3

Husqvarna 603000273

BOLT, 5/16-18 RD HD SQ NECK

$

$

Not available

6

Husqvarna 603000524

WIRE ASSY, #6 GREEN

Note: GREEN

$

$

Not available

11

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

2

Husqvarna 603000459

BRACKET, FE350 S/G MOUNTING

$

$

Not available

1

Husqvarna 603000579

SCREW, M8-125 X 22 HEX GR.8.8

$

$

Not available

7

Husqvarna 603000589

BELT, STARTER-GENERATOR

$

$

Not available

5

Husqvarna 603000375

BRACKET, S/G-ADJUSTABLE

$

$

Not available

10

Husqvarna 603000059

SCREW

$

$

Not available
