HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) FRONT DIFFERENTIAL Parts Diagram

4x2 Utility Vehicle

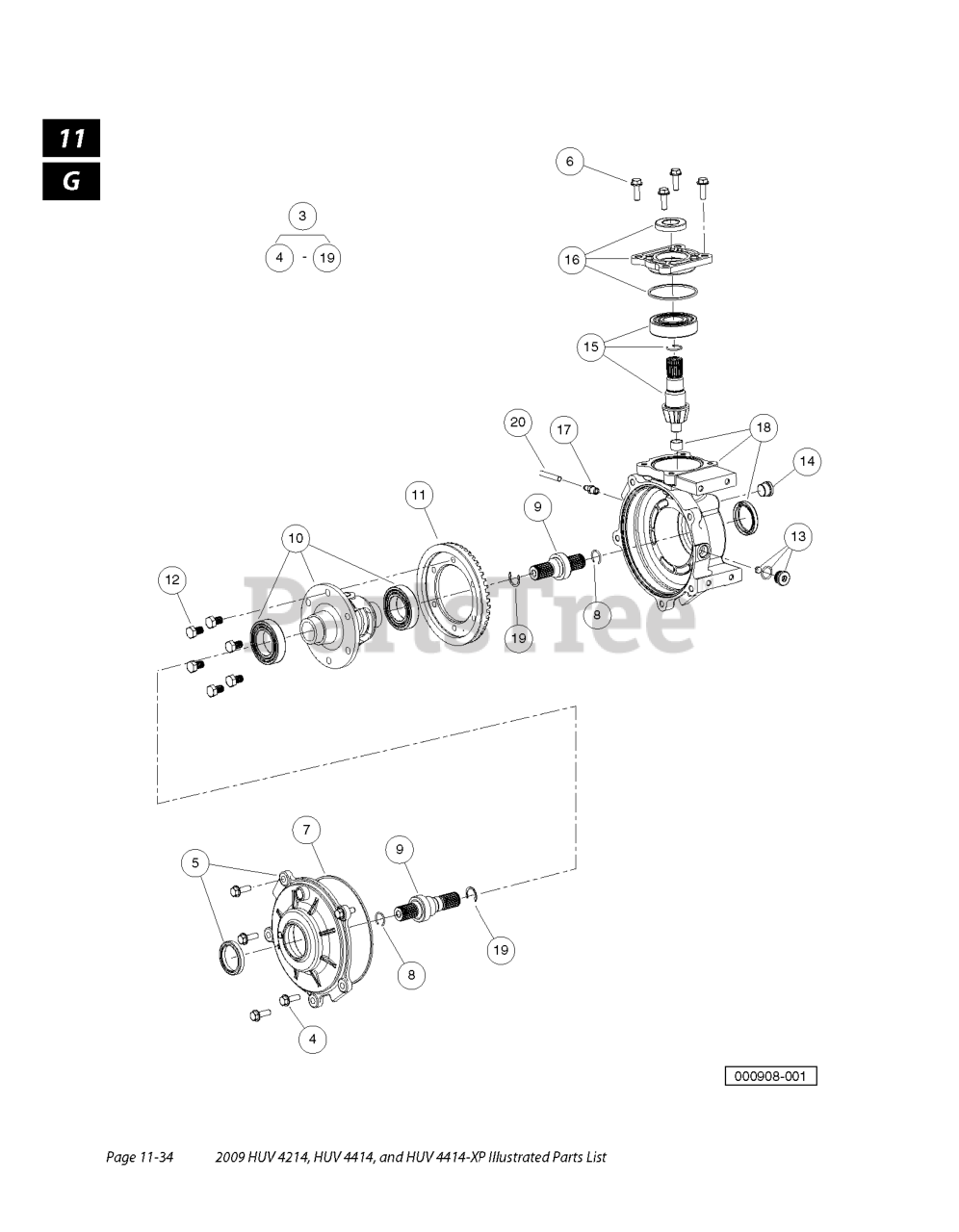

FRONT DIFFERENTIAL Parts Diagram

  • Title

7

Husqvarna 525791301

KIT, SEAL

$

$

Not available

20

Husqvarna 525796101

HOSE, VENT, YELLOW, FRONT DIFF

$

$

Not available

5

Husqvarna 525791101

ASSEMBLY, OUTPUT COVER

$

$

Not available

14

Husqvarna 525792001

PLUG, 3/4-16 HOLLOW HEAD

$

$

Not available

10

Husqvarna 525791601

KIT, OPEN DIFFERENTIAL

$

$

Not available

2

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Not available

6

Husqvarna 525791201

KIT, COVER BOLT

$

$

Not available

8

Husqvarna 525791401

KIT, EXTERNAL RETAINING RING

$

$

Not available

4

Husqvarna 603001171

BOLT FLG, 3/8-16X1.0 LOCTITE

$

$

Not available

11

Husqvarna 525791701

RING GEAR

$

$

Not available

12

Husqvarna 525791801

KIT, RING GEAR BOLT

$

$

Not available

3

Husqvarna 523345999

DIFF, FRONT, OPEN, HILLIARD

$

$

Not available

18

Husqvarna 525792401

KIT, GEARCASE ASSEMBLY

$

$

Not available

16

Husqvarna 525792201

KIT, INPUT COVER

$

$

Not available

17

Husqvarna 525792301

VENT FITTING

$

$

Not available

9

Husqvarna 525791501

KIT, STUB SHAFT

$

$

Not available

13

Husqvarna 525791901

ASSEMBLY, DRAIN PLUG

$

$

Not available

15

Husqvarna 525792101

KIT, PINION GEAR

$

$

Not available

19

Husqvarna 525792501

KIT, INTERNAL RETAINING RING

$

$

Not available
