HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) FUEL SYSTEM 2 Parts Diagram

4x2 Utility Vehicle

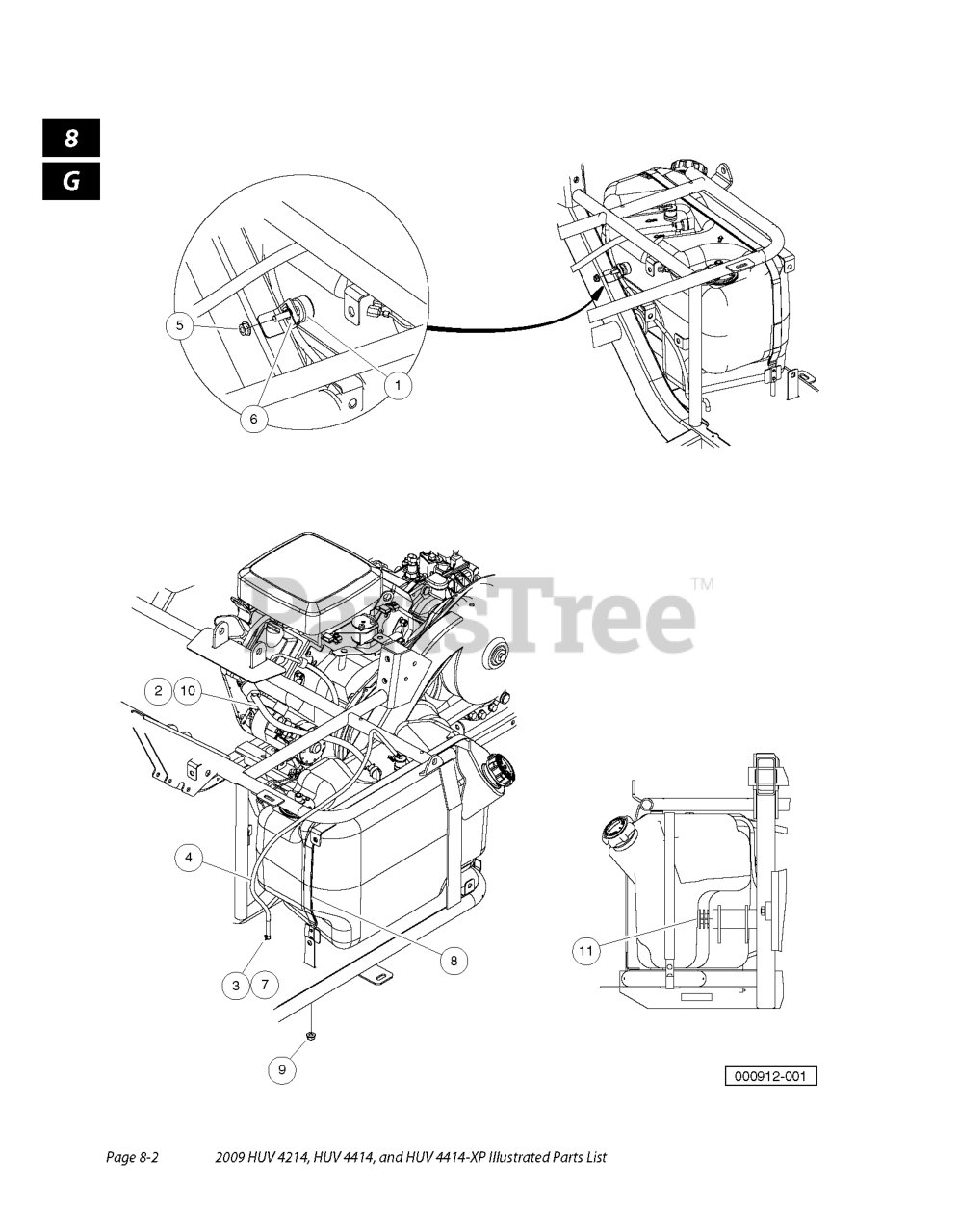

FUEL SYSTEM 2 Parts Diagram

  • Title

10

Husqvarna 531309542

HOSE, FUEL, 1/4SAEJ1737 BULK

$

$

Not available

7

Husqvarna 603000503

VENT BARB

$

$

Not available

9

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

8

Husqvarna 603001000

STRAP, TANK, FUEL

$

$

Not available

6

Husqvarna 603003154

U-NUT, 1/4-20 PALNUT BRAND

$

$

Not available

1

Husqvarna 603000113

BUMPER, BRAKE PEDAL RUBBER

$

$

Not available

2

Husqvarna 603000149

CLAMP

Note: RED

$

$

Not available

11

Husqvarna 525795001

PLUG, RIBBED, ROUND, 1.5"

$

$

Not available

3

Husqvarna 603000185

CLAMP

$

$

Not available

4

Husqvarna 603000240

FUEL LINE

Note: AVAILABLE BY THE FOOT

$

$

Not available

5

Husqvarna 523345907

NUT, LOCK HX FLANGED 1/4-20

$

$

Not available
