HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Hydraulic Brake Lines and Clips Parts Diagram

4x2 Utility Vehicle

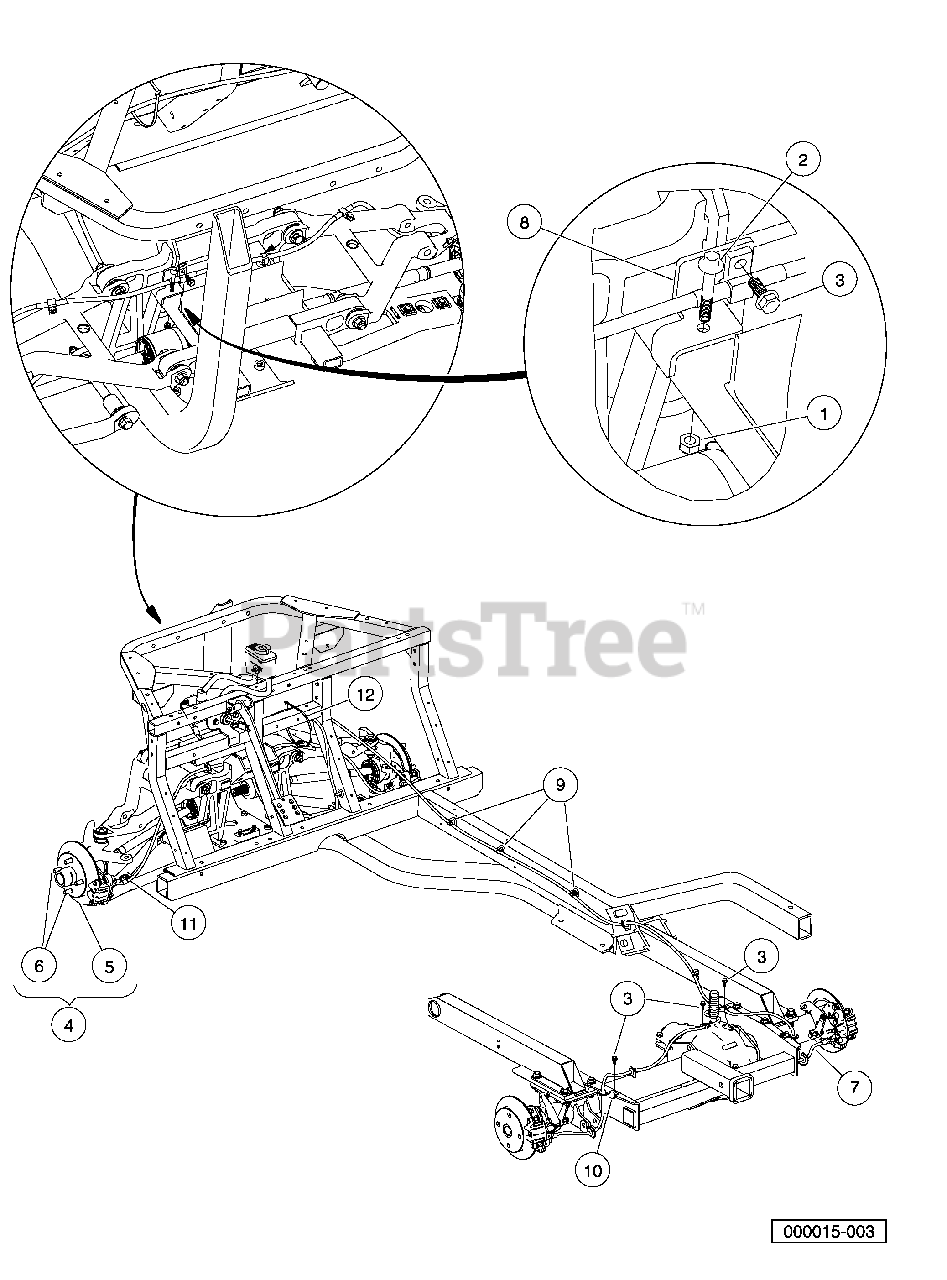

Hydraulic Brake Lines and Clips Parts Diagram

  • Title

1

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

2

Husqvarna 603000873

Bolt, Flanged Head, M6x1.0x40

$

$

Not available

3

Husqvarna 603000874

Screw, M6 X 16 Tt Hx Fl Hd

$2.49

$

In Stock, only 4 left!

0

4

Husqvarna 603003521

Assy, Rotor, Brake, Front, Wt

Note: (includes items 5 and 6)

$

$

Not available

5

Husqvarna 603003520

Rotor, Brake, Front, Wt
(Superseded to 603003521)

$

$

Not available

6

Husqvarna 603001144

Stud, Wheel Lug

$

$

Not available

7

Husqvarna 603000953

Assembly, Brake Line, Rear

$

$

Not available

8

Husqvarna 603001141

Bracket, Tee, Brakeline

$

$

Not available

9

Husqvarna 603001143

Clip, Brake Line

$

$

Not available

10

Husqvarna 603001605

Bracket, Line, Hydraulic

$

$

Not available

11

Husqvarna 531308287

Brakeline, Front, Assembly

$

$

Not available

12

Husqvarna 603000093

Tie Wrap, 11" Nylon

$

$

Not available
