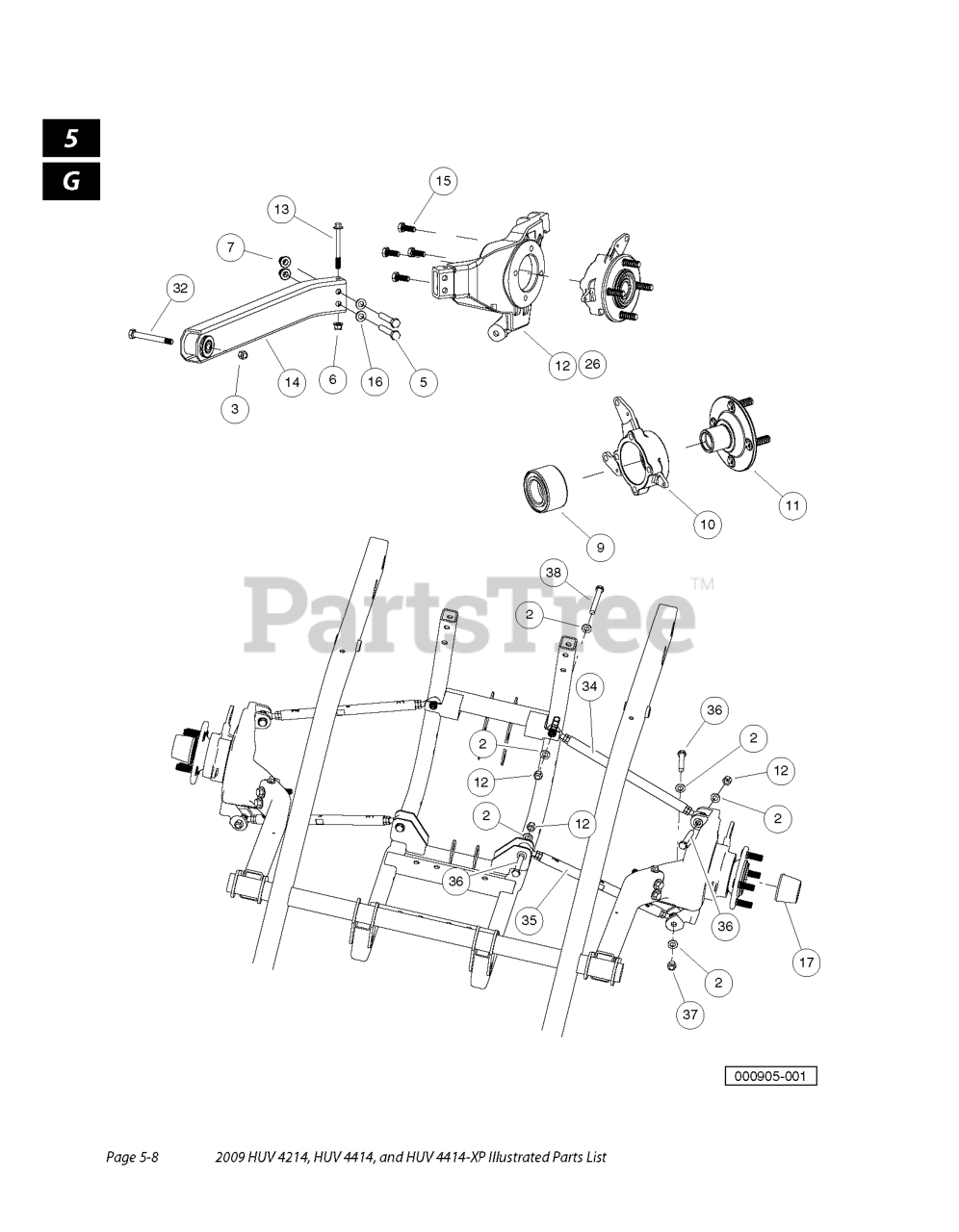

HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) REAR SUSPENSION Parts Diagram

4x2 Utility Vehicle

REAR SUSPENSION Parts Diagram

  • Title

7

Husqvarna 603001586

NUT FLG M10 X 1.5 NYLON

$

$

Not available

35

NEEDS DESCRIPTION

Note: FRONT

$

$

Not available

31

Husqvarna 523345976

SLEEVE, LINK, SHORT

$

$

Not available

23

Husqvarna 603001123

BEARING, DAC

$

$

Not available

5

Husqvarna 603003713

SCREW M10-1.5X60MM HEX CAP

$

$

Not available

12

Husqvarna 523345974

ANCHOR, TRAILING ARM, RH

$

$

Not available

38

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

32

Husqvarna 523345977

BOLT, FLG, M12 X 1.75 X 80

$

$

Not available

2

Husqvarna 603000132

WASHER, 3/8 FLAT

$

$

Not available

22

Husqvarna 523345961

ASM, UPRIGHT, REARAR

$

$

Not available

10

Husqvarna 523345955

NEEDS DESCRIPTION

Note: REAR

$

$

Currently unavailable

13

Husqvarna 523345980

BOLT, FLG, M8 X 1.25 X 80

$

$

Not available

29

Husqvarna 523345984

BOLT, M10 X 1.5 X 25

$

$

Not available

3

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

33

Husqvarna 525766801

SPACER, LAT-LINK

Note: NOT SHOWN

$

$

Not available

36

Husqvarna 603003304

SCREW, 3/8-16 X 2.25 HX HD CAP

$

$

Not available

6

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

26

Husqvarna 523345965

ANCHOR, TRAILING ARM, LH

Note: LH

$

$

Not available

30

Husqvarna 603000451

WASHER, M10 HARD

$

$

Not available

19

Husqvarna 603003713

SCREW M10-1.5X60MM HEX CAP

$

$

Not available

14

Husqvarna 523345981

ASM, SWING, ARM

$

$

Not available

20

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

25

Husqvarna 523345975

ASM, WHEEL HUB, REAR

Note: REAR

$

$

Not available

17

Husqvarna 523345971

CAP, WHEEL, RUBBER

$

$

Not available

18

Husqvarna 523345973

ASM, TRAILING ARM, LH

$

$

Not available

27

Husqvarna 523345980

BOLT, FLG, M8 X 1.25 X 80

$

$

Not available

15

Husqvarna 523345984

BOLT, M10 X 1.5 X 25

$

$

Not available

24

Husqvarna 523345955

NEEDS DESCRIPTION

Note: REAR

$

$

Currently unavailable

37

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

11

Husqvarna 523345975

ASM, WHEEL HUB, REAR

Note: REAR

$

$

Not available

28

Husqvarna 523345981

ASM, SWING, ARM

$

$

Not available

34

Husqvarna 525767101

ASM, LAT-LINK REAR

Note: RAR

$

$

Not available

9

Husqvarna 603001123

BEARING, DAC

$

$

Not available

16

Husqvarna 603000451

WASHER, M10 HARD

$

$

Not available

21

Husqvarna 603001586

NUT FLG M10 X 1.5 NYLON

$

$

Not available
