HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) SHIFTER B Parts Diagram

4x2 Utility Vehicle

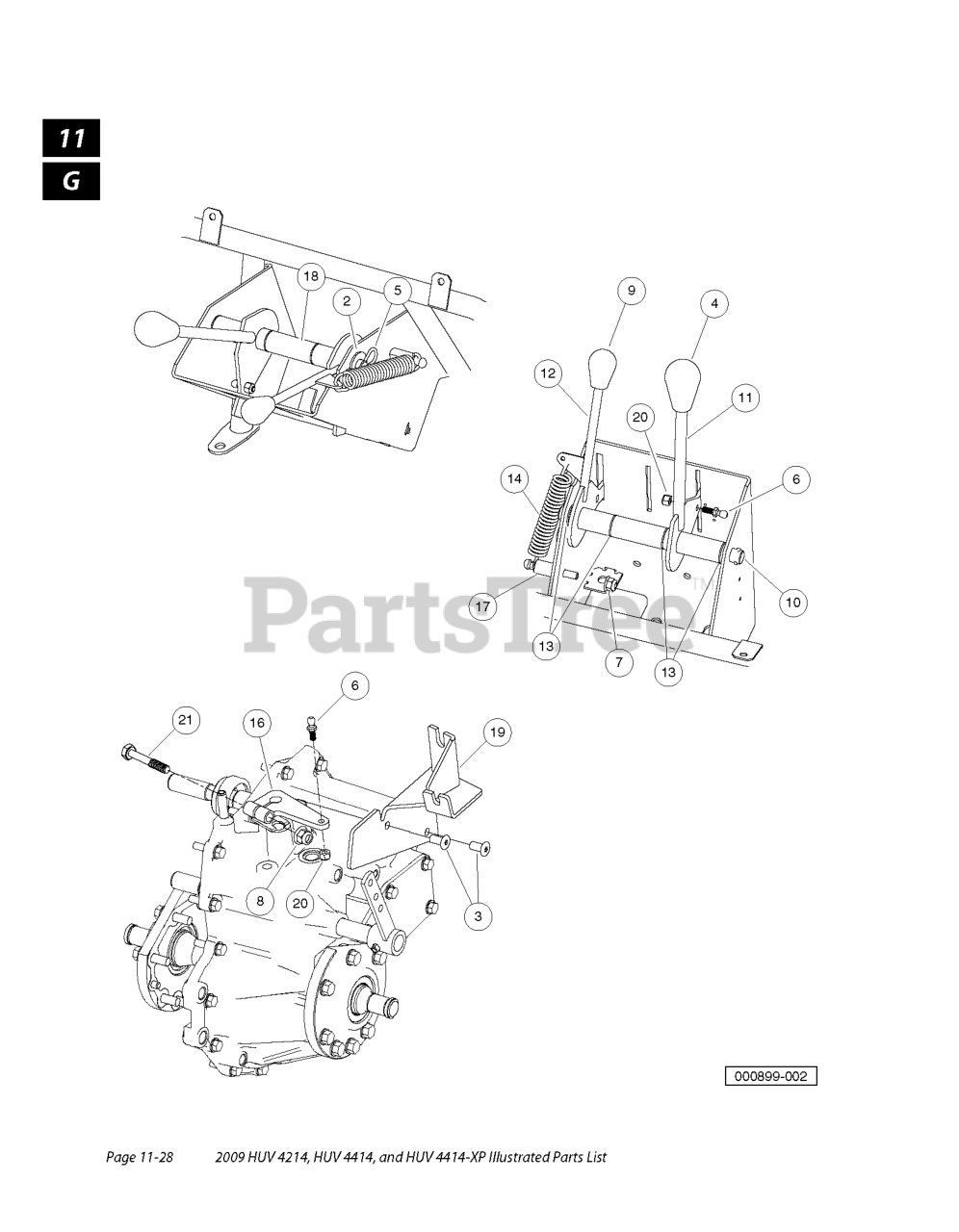

SHIFTER B Parts Diagram

  • Title

9

Husqvarna 523345967

KNOB, BLACK, 32MM DIA

$

$

Not available

19

Husqvarna 525795501

WELDMENT, BRKT, CABLE, 2WD

$

$

Not available

8

Husqvarna 603001586

NUT FLG M10 X 1.5 NYLON

$

$

Not available

6

Husqvarna 603001288

STUD, BALL, .346 DIA

$

$

Not available

7

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

10

Husqvarna 523345969

PIN, SHIFTER, CONTROLS

$

$

Not available

3

Husqvarna 603000277

SCREW, M8-1.25 X 18MM TORX

$

$

Not available

5

Husqvarna 603001195

PIN, BOW TIE .120X2.750

$

$

Not available

4

Husqvarna 603000924

KNOB, FNR

$

$

Not available

2

Husqvarna 523345901

WASHER, 5/8 TYPE A PLAIN FLAT

$

$

Not available

20

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

1

NEEDS DESCRIPTION

Note: 2WD

$

$

Not available

21

Husqvarna 603000441

BOLT, M10 X 1.5 X 60

$

$

Not available

18

Husqvarna 525794701

SPACER, 16.5 ID X 58 MM

$

$

Not available
