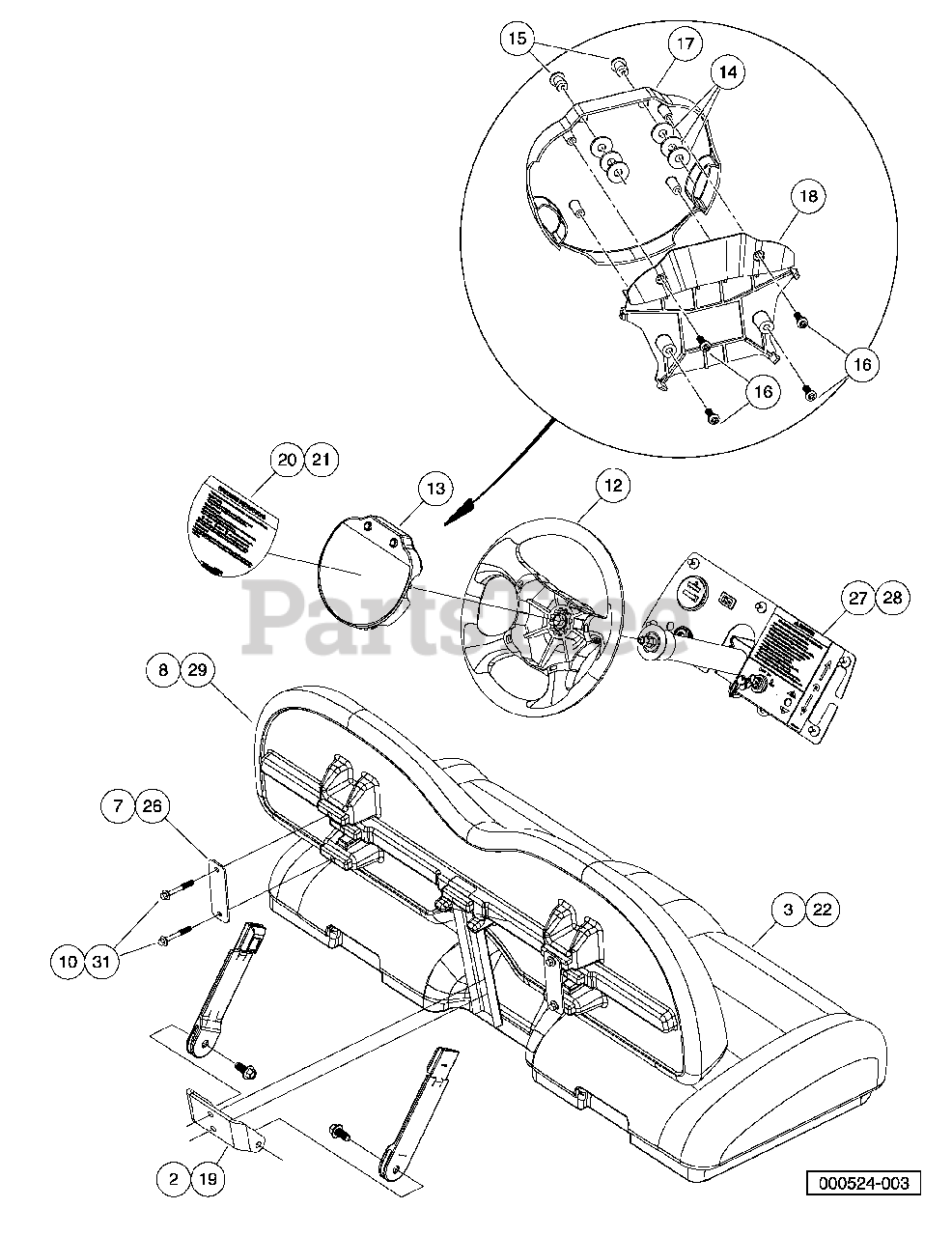

HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Bench Seat Conversion Kit Parts Diagram

4x4 Utility Vehicle

Bench Seat Conversion Kit Parts Diagram

  • Title

1

Husqvarna 531308122

Kit, Bench Seat, Seat Only

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 531308118

Bracket, Seat Belt, Bench

$

$

Not available

3

Husqvarna 531308123

Asm, Seat Bottom, Bench, Gray
(Superseded to 574503301)

Note: (includes items 4 through 6)

$

$

Not available

4

Husqvarna 603000125

Hinge Plate

$

$

Not available

5

Asm, Seat Bottom, Bench

$

$

Not available

6

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

7

Husqvarna 531308121

Bracket, Seat Back, AWD

$

$

Not available

8

Husqvarna 531308120

Seat Back, Bench, Gray
(Superseded to 574503301)

$

$

Not available

9

Husqvarna 603003471

Instructions, Bench Seat

$

$

Currently unavailable

10

Husqvarna 531307417

Bolt Flg Blk, M8 X 55, Loctite

$

$

Not available

11

Husqvarna 531308124

Kit, Bench Seat, Complete

Note: (includes items 12 through 31)

$

$

Not available

12

Steering Wheel, Comfort Grip, Hex

$

$

Not available

13

Husqvarna 603003469

Center, Plate, Steering Wheel

Note: (includes items 14 through 18)

$

$

Not available

14

Husqvarna 603000127

Washer, 5/16 Flat

$

$

Not available

15

Husqvarna 603000379

Blind Rivet, Push Type

$

$

Not available

16

Part Number for Club Car part number 102296020Screw, Torx Pan Hd Pt, M6 X 20

Note: ERROR! No Husqvarna

$

$

Not available

17

Scorecard Plate, Comfort Grip

$

$

Not available

18

Scorecard Back Plate

$

$

Not available

19

Husqvarna 531308118

Bracket, Seat Belt, Bench

$

$

Not available

20

Husqvarna 531307136

Decal, Oper Instr, Awd Se Dsl

$

$

Not available

21

Husqvarna 603003470

Decal, Oper Instr, Awd Se Gas

$

$

Not available

22

Husqvarna 531308123

Asm, Seat Bottom, Bench, Gray
(Superseded to 574503301)

Note: (includes items 23 through 25)

$

$

Not available

23

Husqvarna 603000125

Hinge Plate

$

$

Not available

24

Asm, Seat Bottom, Bench.

$

$

Not available

25

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

26

Husqvarna 531308121

Bracket, Seat Back, AWD

$

$

Not available

27

Husqvarna 531307125

Decal, Warning, Iinstrument Panel, AWD Gas

$

$

Not available

28

Husqvarna 531307146

Decal, Warning, Iinstrument Panel, AWD Diesel

$

$

Not available

29

Husqvarna 531308120

Seat Back, Bench, Gray
(Superseded to 574503301)

$

$

Not available

30

Husqvarna 603003471

Instructions, Bench Seat

$

$

Currently unavailable

31

Husqvarna 531307417

Bolt Flg Blk, M8 X 55, Loctite

$

$

Not available
