HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) BRACKETS Parts Diagram

4x4 Utility Vehicle

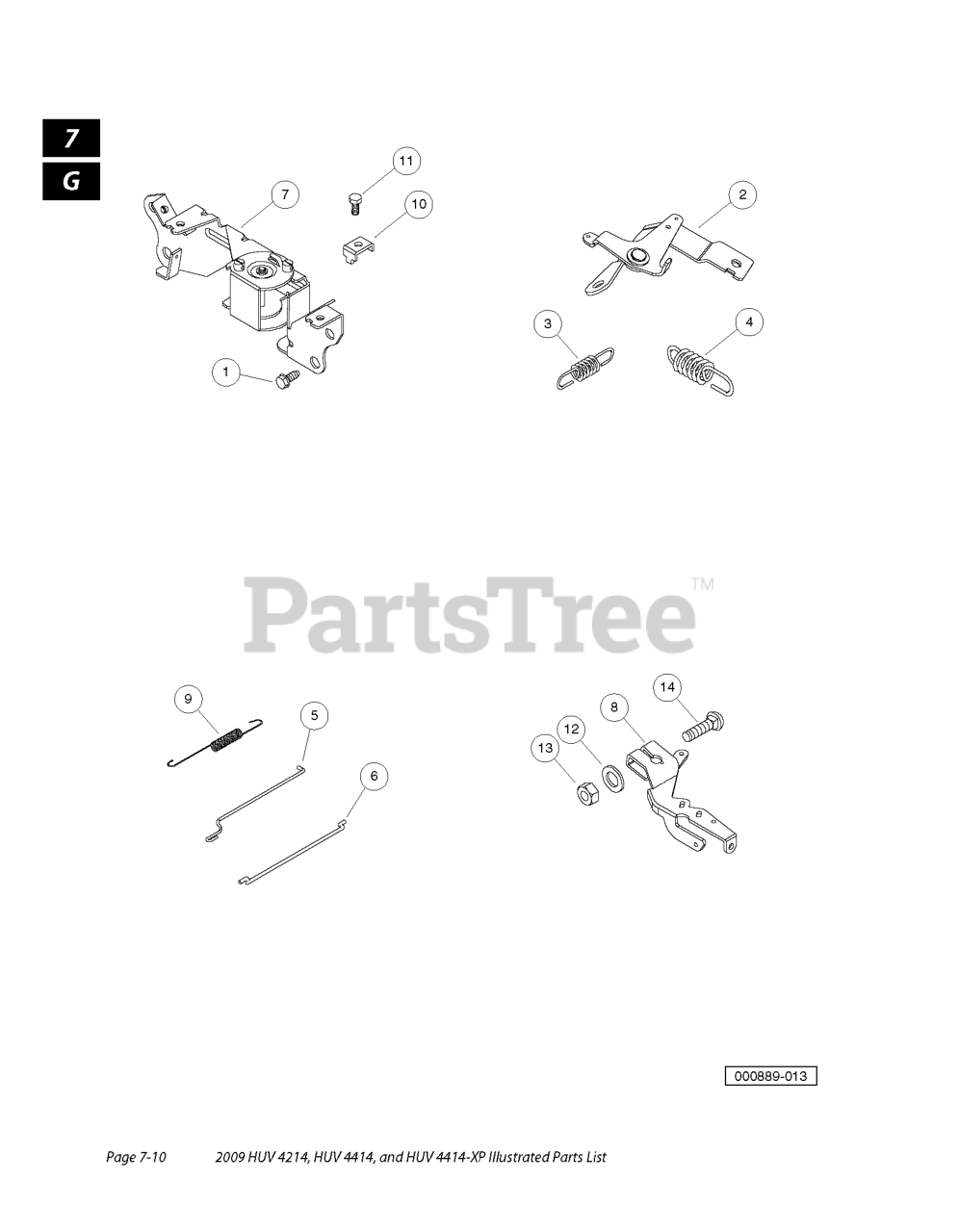

BRACKETS Parts Diagram

  • Title

2

Husqvarna 525777401

CRANK, BELL

$

$

Not available

11

Husqvarna 525778701

SCREW, CASING CLAMP

$

$

Not available

4

Husqvarna 525777601

SPRING, GOVERNOR IDLE

$

$

Not available

5

Husqvarna 525777701

LINK, THROTTLE

$

$

Not available

3

Husqvarna 525777501

SPRING, GOVERNOR

$

$

Not available

6

Husqvarna 525777801

LINK, CHOKE

$

$

Not available

14

Husqvarna 525783401

BOLT, GOVERNOR CONTROL LEVER

$

$

Not available

8

Husqvarna 525778001

LEVER, GOVERNOR CONTROL

$

$

Not available

1

Husqvarna 525777101

SCREW, CONTROL BRACKET

$

$

Not available

9

Husqvarna 525778201

SPRING, GOVERNOR LINK

$

$

Not available

7

Husqvarna 525777901

BRACKET, CONTROL

$

$

Not available

13

Husqvarna 525782301

NUT, GOVERNOR CONTROL LEVER

$

$

Not available

12

Husqvarna 525779201

WASHER, GOV CONTROL LEVER

$

$

Not available

10

Husqvarna 525778601

CLAMP, CASING

$

$

Not available
