HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Carburetor Assembly, Kawasaki Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

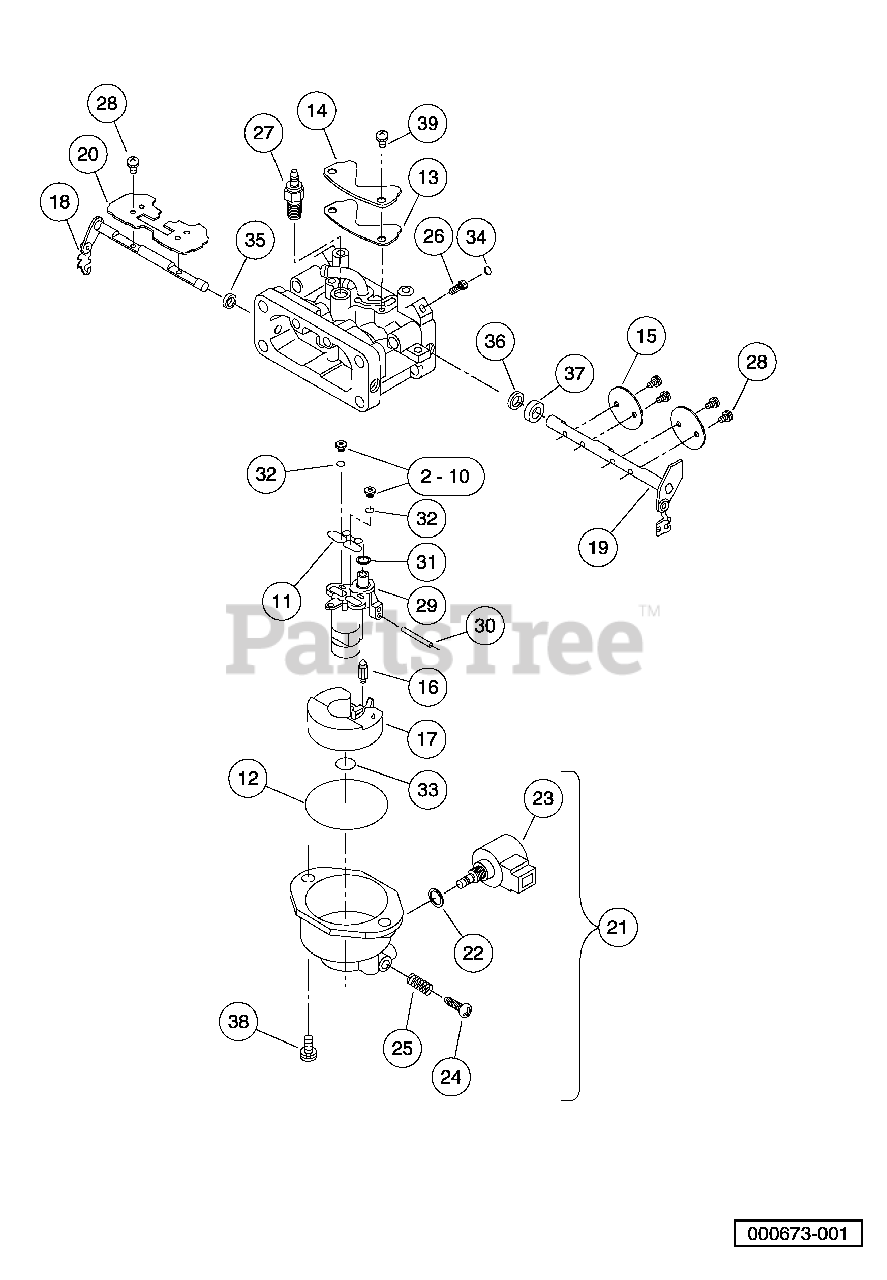

Carburetor Assembly, Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603003795

Asm, Carburetor, Fh680d

Note: (includes items 2 through 39)

$

$

Not available

2

Husqvarna 603004144

Kit, Jet, 6600 Ft +, Fh680d

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna 603003807

Jet, Push In #96, FH680D (6600 ft and higher (2000 m and higher))
(Superseded to 603004144)

$

$

Not available

4

Husqvarna 603004411

Kit, Instructions Jet, Push In

$

$

Currently unavailable

5

Husqvarna 603004145

Kit, Jet, 3300-6600 Ft, Fh680d

Note: (includes items 6 and 7)

$

$

Not available

6

Husqvarna 603003806

Jet, Push In #99, FH680D (3300-6600 ft (1000-2000 m))
(Superseded to 603004145)

$

$

Not available

7

Husqvarna 603004411

Kit, Instructions Jet, Push In

$

$

Currently unavailable

8

Husqvarna 603004146

Kit, Jet, 0-3300 Ft, Fh680d

Note: (includes items 9 and 10)

$

$

Not available

9

Husqvarna 603003805

Jet, Push In #102, FH680D (0-3300 ft (0-1000 m))
(Superseded to 603004146)

$

$

Not available

10

Husqvarna 603004411

Kit, Instructions Jet, Push In

$

$

Currently unavailable

11

Husqvarna 603003799

Gasket, Fh680d

$

$

Not available

12

Husqvarna 603003798

Gasket, Carburetor, Dia. 52

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 603003797

Gasket, Cover, Fh680d

$

$

Not available

14

Husqvarna 603003796

Cover, Slow Passage, Fh680d

$

$

Not available

15

Husqvarna 603003794

Valve, Throttle, Fh680d

$

$

Not available

16

Husqvarna 603003793

Valve, Float, Fh680d

$25.99

$

In Stock, Qty 20+

0

17

Husqvarna 603003792

Float, Carburetor, Fh680d

$

$

Not available

18

Husqvarna 603003791

Shaft, Carburetor, Fh680d

$

$

Not available

19

Husqvarna 603003790

Shaft, Carburetor, Throttle

$

$

Not available

20

Husqvarna 603003789

Valve, Carburetor, Fh680d

$

$

Not available

21

Husqvarna 603003788

Asm, Chamber, Float, Fh680d

Note: (includes items 22 through 25)

$

$

Not available

22

Husqvarna 603003800

Gasket, Carburetor, Fh680d

$

$

Not available

23

Husqvarna 603003786

Solenoid, Carburetor, Fh680d

$

$

Not available

24

Husqvarna 603003783

Screw, Drain, Carburetor

$

$

Not available

25

Husqvarna 603003775

Spring, Carburetor, Fh680d

$

$

Not available

26

Husqvarna 603003787

Needle, Jet, Fh680d

$

$

Not available

27

Husqvarna 603003785

Heater, Carburetor, Fh680d

$62.99

$

Usually ships in 3-10 days

0

28

Husqvarna 603003784

Screw, Carburetor, M3 X 6

$

$

Not available

29

Husqvarna 603003782

Spacer, Carburetor, Fh680d

$9.49

$

In Stock, Qty 20+

0

30

Husqvarna 603003781

Pin, Carburetor, Fh680d

$

$

Not available

31

Husqvarna 603003780

O-ring, Carburetor, Dia. 6.5

$

$

Not available

32

Husqvarna 603003779

O-ring, Carburetor, Fh680d

$

$

Not available

33

Husqvarna 603003778

O-ring, Carburetor, Dia. 9

$

$

Not available

34

Husqvarna 603003966

Plug, Expansion, Carburetor

$

$

Not available

35

Husqvarna 603003777

Seal, Carburetor, Dia. 5.9

$

$

Not available

36

Husqvarna 603003776

Seal, Carburetor, Fh680d

$

$

Not available

37

Husqvarna 603003774

Collar, Carburetor, Fh680d

$

$

Not available

38

Husqvarna 603003773

Screw, Carburetor, M5

$

$

Not available

39

Husqvarna 603003772

Screw, Carburetor, M4

$

$

Not available
