HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) CRANKSHAFT 2 Parts Diagram

4x4 Utility Vehicle

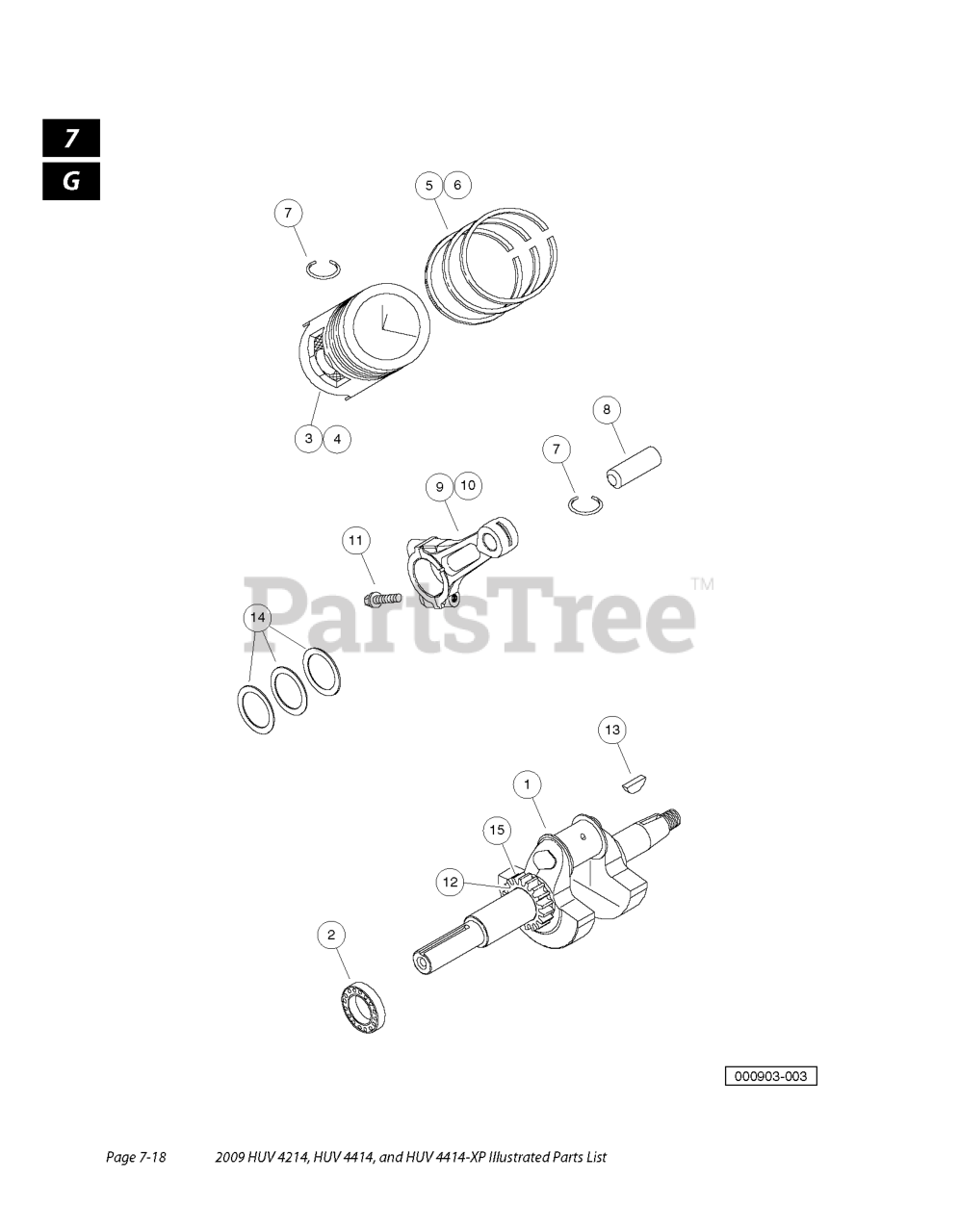

CRANKSHAFT 2 Parts Diagram

  • Title

1

Husqvarna 525771801

CRANKSHAFT, B&S 14 HP

Note: B & S 14 HP

$

$

Not available

14

Husqvarna 525784001

SHIM, BEARING END PLAY

$

$

Not available

7

Husqvarna 525772801

LOCK, PISTON PIN

$

$

Not available

10

Husqvarna 525773101

ROD, CONNECTION, .020"UNDER

$

$

Not available

15

Husqvarna 525786201

GEAR, TIMING

$

$

Not available

3

Husqvarna 525772401

ASSEMBLY, PISTON

$

$

Not available

13

Husqvarna 525780901

KEY, WOODRUFF

$

$

Not available

6

Husqvarna 525772701

SET, RING, .020" OVERSIZE

$

$

Not available

2

Husqvarna 525771901

BEARING, BALL

$

$

Not available

4

Husqvarna 525772501

ASSEMBLY, PISTON,.020"OVER

$

$

Not available

8

Husqvarna 525772901

PISTON, PIN

$

$

Not available

9

Husqvarna 525773001

ROD, CONNECTING

$

$

Not available

12

Husqvarna 525776701

KEY, TIMING

$

$

Not available

11

Husqvarna 525773201

SCREW, CONNECTING ROD

$

$

Not available

5

Husqvarna 525772601

SET, RING

$

$

Not available
