HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) ENGINE SHROUD Parts Diagram

4x4 Utility Vehicle

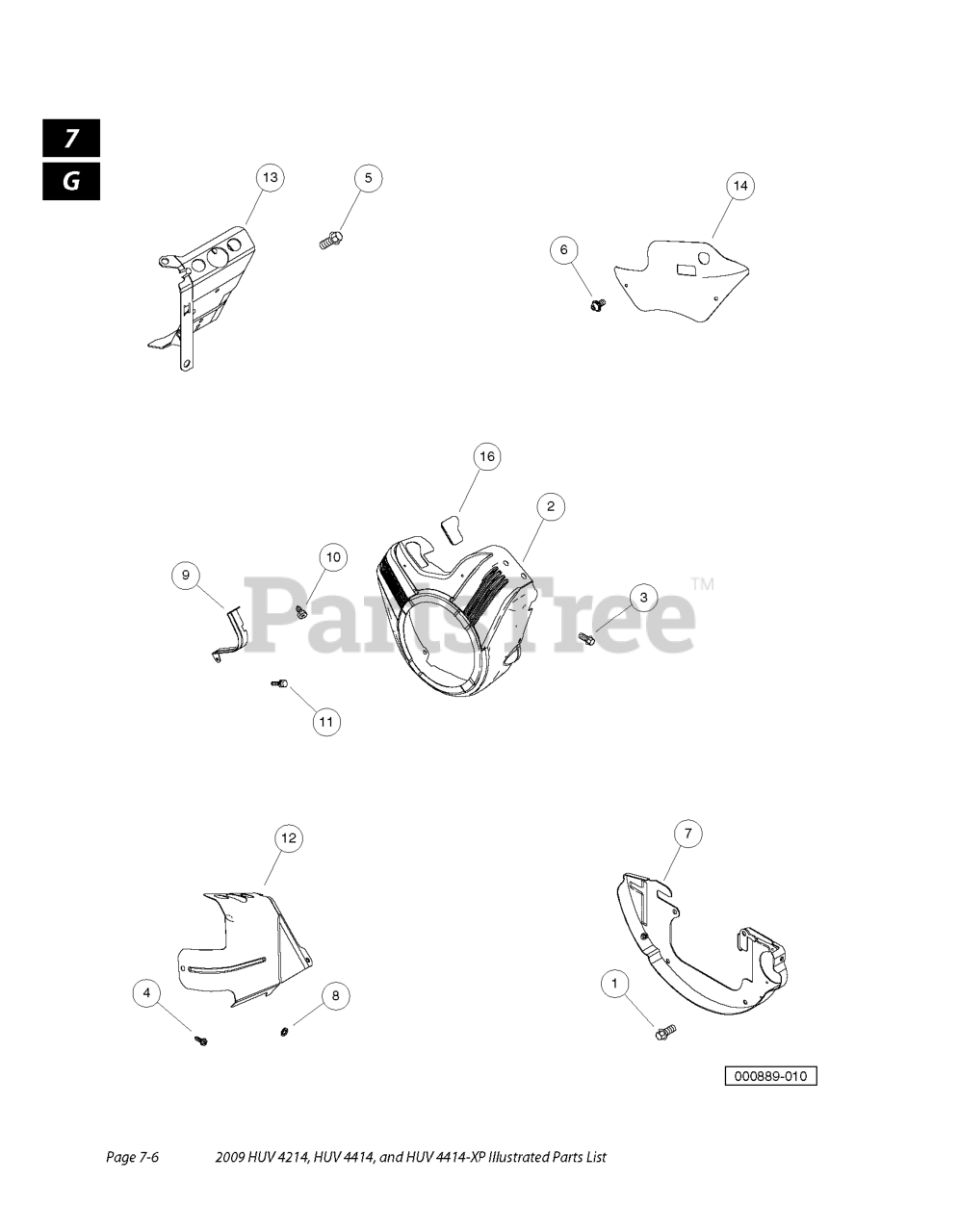

ENGINE SHROUD Parts Diagram

  • Title

5

Husqvarna 525781601

SCREW, AIR GUIDE COVER

$

$

Not available

11

Husqvarna 525786001

SCREW, STARTER DRIVE COVER, 2

$

$

Not available

8

Husqvarna 525784801

WASHER, CYLINDER HEAD COVER, 1

$

$

Not available

15

Husqvarna 525790001

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Currently unavailable

14

Husqvarna 525787801

COVER, CARBURETOR

$

$

Not available

4

Husqvarna 525779901

SCREW, CYLINDER HEAD COVER, 1

$

$

Not available

9

Husqvarna 525785701

COVER, STARTER DRIVE

$

$

Not available

10

Husqvarna 525785901

SCREW, STARTER DRIVE COVER, 1

$

$

Not available

16

Husqvarna 525790201

PLUG, BLOWER, HOUSING

Note: HOUSING

$

$

Not available

7

Husqvarna 525783701

PLATE, BACK, B & S 14 HP

$

$

Not available

6

Husqvarna 525782401

SCREW, CARBURETOR COVER

$

$

Not available

3

Husqvarna 525779501

SCREW, HOUSING, BLOWER

$

$

Not available

13

Husqvarna 525787501

COVER, AIR GUIDE, 2

$

$

Not available

12

Husqvarna 525787401

COVER, AIR GUIDE, 1

$

$

Not available

2

Husqvarna 525779401

HOUSING, BLOWER

$

$

Not available

1

Husqvarna 525777301

SCREW, BACK PLATE

$

$

Not available
