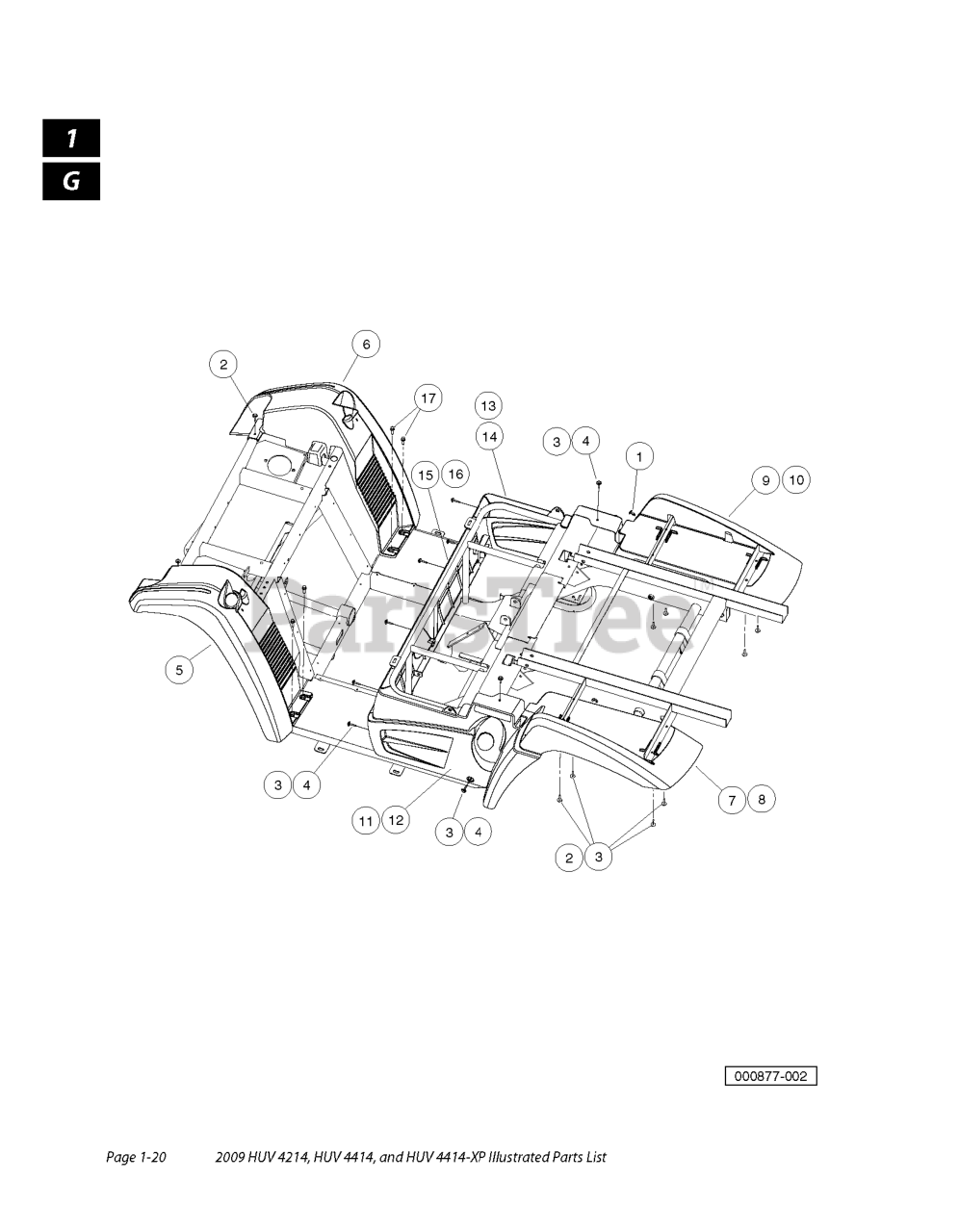

HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) FENDERS Parts Diagram

4x4 Utility Vehicle

FENDERS Parts Diagram

  • Title

15

Husqvarna 523345934

PANEL, CENTER, BLK

Note: BLACK

$

$

Not available

3

Husqvarna 603003961

U-NUT M6-1.0 PREV TORQUE

$

$

Not available

8

Husqvarna 580684401

FENDER, REAR, DS, CAMO, RT-G

Note: CAMO

$

$

Not available

10

Husqvarna 580684402

FENDER, REAR, PS, CAMO, RT-G

Note: CAMO

$

$

Not available

9

Husqvarna 523345931

FENDER, REAR, PS

Note: BLACK

$

$

Not available

17

Husqvarna 603004460

3/16 X 1.19 ALUM RIVET, BLK

$

$

Not available

1

Husqvarna 603003590

SCREW, TUFLOK PANEL, 1/4
(Superseded to 603000695)

$

$

Not available

11

Husqvarna 523345932

PANEL, DS

$

$

Not available

7

Husqvarna 523345930

FENDER, REAR, DS

Note: BLACK

$

$

Not available

4

Husqvarna 523345914

'SCREW M6-1.0X25.4 THD FM

$

$

Not available

13

Husqvarna 523345933

PANEL, PS, BLK

Note: BLACK

$

$

Not available

16

Husqvarna 580673303

PANEL, CENTER, CAMO, RTHWHD-G

Note: CAMO

$

$

Not available

6

Husqvarna 523345929

FENDER, FRONT, PS

$

$

Not available

12

Husqvarna 580673301

PANEL, DS, CAMO, RTHWHD-G

Note: CAMO

$

$

Not available

18

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Not available

14

Husqvarna 580673302

PANEL, PS, CAMO, RTHWHD-G

Note: CAMO

$

$

Not available

2

Husqvarna 603003254

SCREW - M6 X 1.0 X 30 SEMS

$

$

Not available

5

Husqvarna 523345928

FENDER, FRONT, DS

$

$

Not available
