HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) FRAME 2 Parts Diagram
4x4 Utility Vehicle

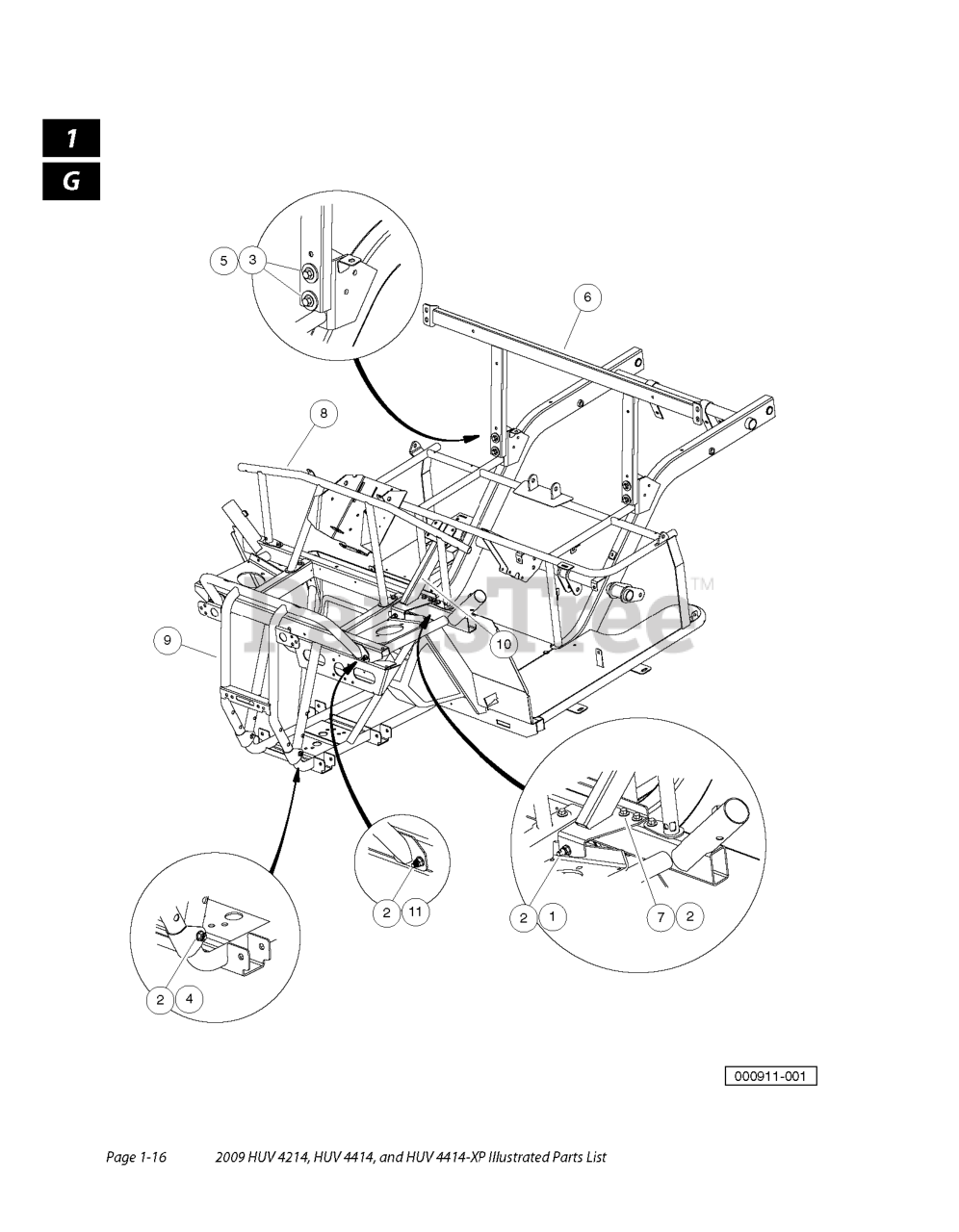

FRAME 2 Parts Diagram
Husqvarna 523345980
BOLT, FLG, M8 X 1.25 X 80
$
$
Not available
Husqvarna 603001174
WASHER HARD, M10
$
$
Not available
Husqvarna 523345950
WELDMENT,MTG,SEAT BACK
$
$
Not available
Husqvarna 603001298
NUT FLG, M8 X 1.25 MECH DEF
$2.49
$
Usually ships in 3-10 days
Husqvarna 523345925
BOLT, FLG, M10X1.5X55, PATCH
$
$
Not available
Husqvarna 603000875
BOLT - FLANGED HD, M8 X 30.0
$
$
Not available
Husqvarna 603002861
BOLT FLG, M8X1.25 X 50 LOCTITE
$
$
Not available
Husqvarna 525766101
BOLT, FLG, M8 X X 60
$
$
Not available
