HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Front Brake Assembly Parts Diagram

4x4 Utility Vehicle

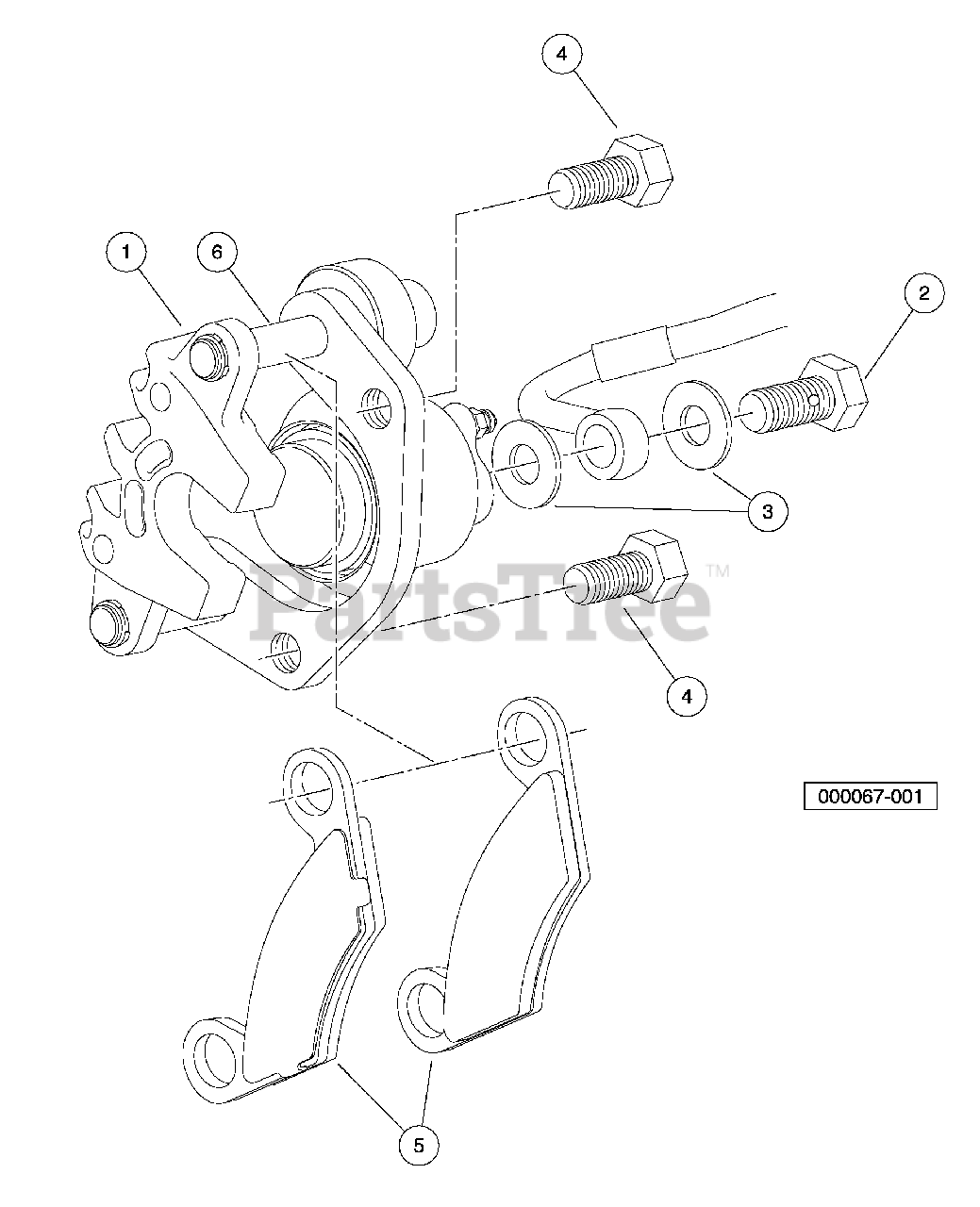

Front Brake Assembly Parts Diagram

  • Title
1

603 00 08-98

Brake Caliper, Front, with Brake Pads

$

$

Not available

2

603 00 11-62

Bolt, Banjo, M10x1x19

$

$

Not available

3

603 00 11-75

Washer, Copper, M10 Crush

$

$

Not available

4

603 00 11-83

Bolt Flange Head, 3/8-24x.750 with Loctite

$

$

Not available

5

603 00 16-70

Service Kit, Brake Pad

Note: (4 Pads)

$

$

Not available

6

603 00 44-75

Pin, Slide, 7/16

$

$

Not available
