HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Gear Case Parts Diagram

4x4 Utility Vehicle

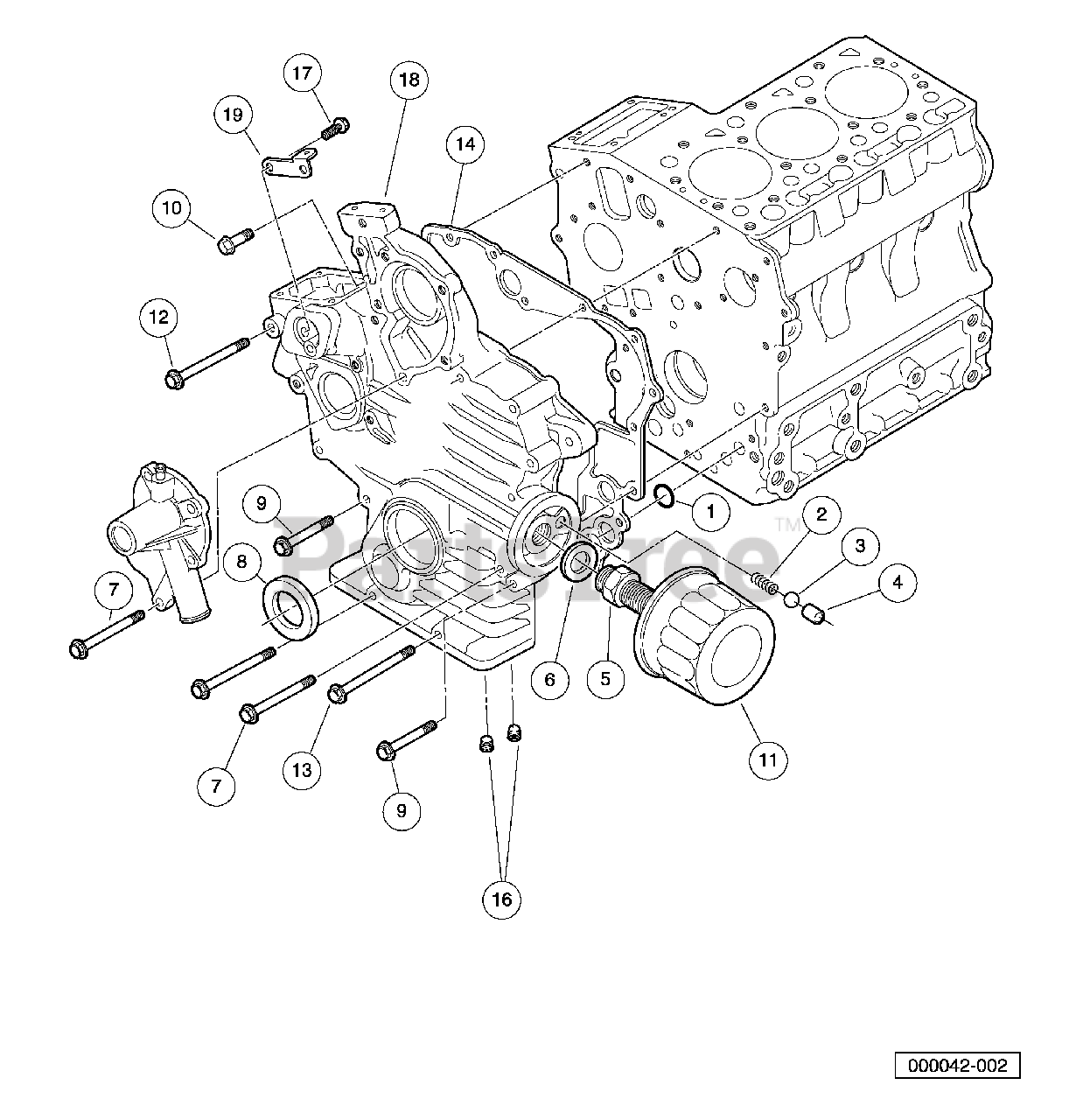

Gear Case Parts Diagram

  • Title

1

603 00 12-12

O Ring, 18 X 13

$

$

Not available

2

603 00 12-13

Spring, Valve

$

$

Not available

3

603 00 12-14

Ball, Valve

$

$

Not available

4

603 00 12-15

Seat, Valve

$

$

Not available

5

603 00 12-16

Joint, Pipe

$

$

Not available

6

603 00 12-17

Washer, Plain, Special

$

$

Not available

7

603 00 12-18

Bolt, M6 X 1 X 60

$

$

Not available

8

603 00 12-19

Seal, Oil

$

$

Not available

9

603 00 12-20

Bolt, D722, Front Case

$

$

Not available

10

603 00 14-56

Bolt, D722 Intake Manfld Lower

$

$

Not available

11

603 00 00-41

Filter, Engine Oil, D722

$

$

Not available

12

603 00 17-12

Bolt, Gearcase, Top

$

$

Not available

13

603 00 17-13

Bolt, Gearcase, Lower

$

$

Not available

14

603 00 17-31

Gasket, Gearcase, D722

$

$

Not available

15

603 00 17-11

Case, Gear

Note: (includes items 16 through 19)

$

$

Not available

16

603 00 12-07

Plug, 1/4"

$

$

Not available

17

603 00 18-11

Screw, Breather

$

$

Not available

18

Husqvarna N/A

Case, Gear

$

$

Not available

19

603 00 18-10

Stay, Spring

$

$

Not available
