HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) TILT BED Parts Diagram

4x4 Utility Vehicle

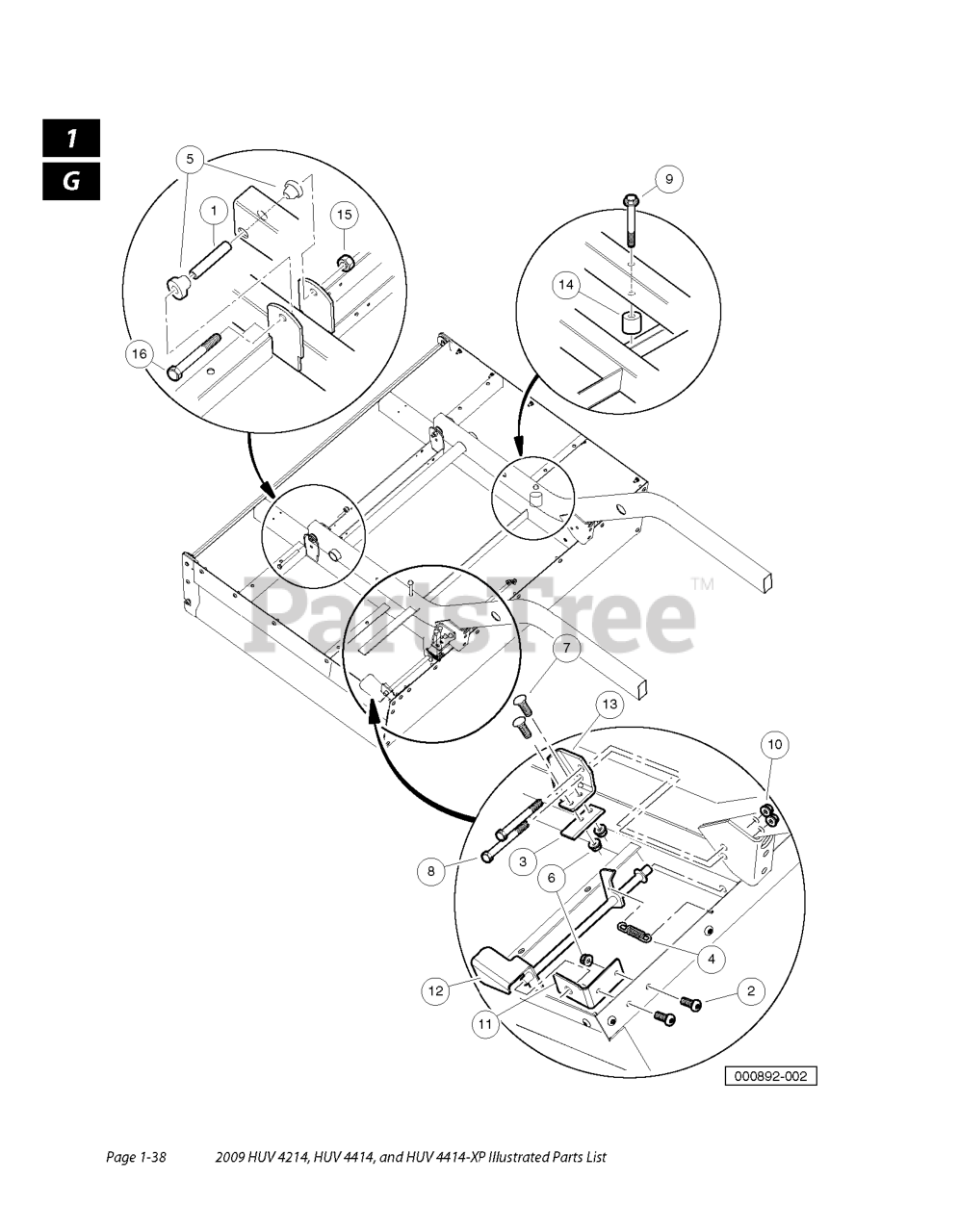

TILT BED Parts Diagram

  • Title

4

Husqvarna 603000254

EXENSION SPRING LATCH CA

$

$

Not available

2

Husqvarna 603000226

SCREW

$

$

Not available

15

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

6

Husqvarna 603000521

LOCKNUT, 1/4-20 HEX WHIZ

$

$

Not available

9

Husqvarna 523345916

BOLT - FLANGE HD, M8 X 85.0

$

$

Not available

1

Husqvarna 603000136

BUSHING - STEEL (GAS CAR)

$

$

Not available

10

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

8

Husqvarna 523345915

BOLT - FLANGE HD, M8 X 70.0

$

$

Not available

3

Husqvarna 603000246

LATCH PLATE

$

$

Not available

7

Husqvarna 603002603

BOLT, 1/4-20 X .75 RD HD SQ NK

$

$

Not available

16

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

5

Husqvarna 603000263

BUSHING, URETHANE

$

$

Not available
