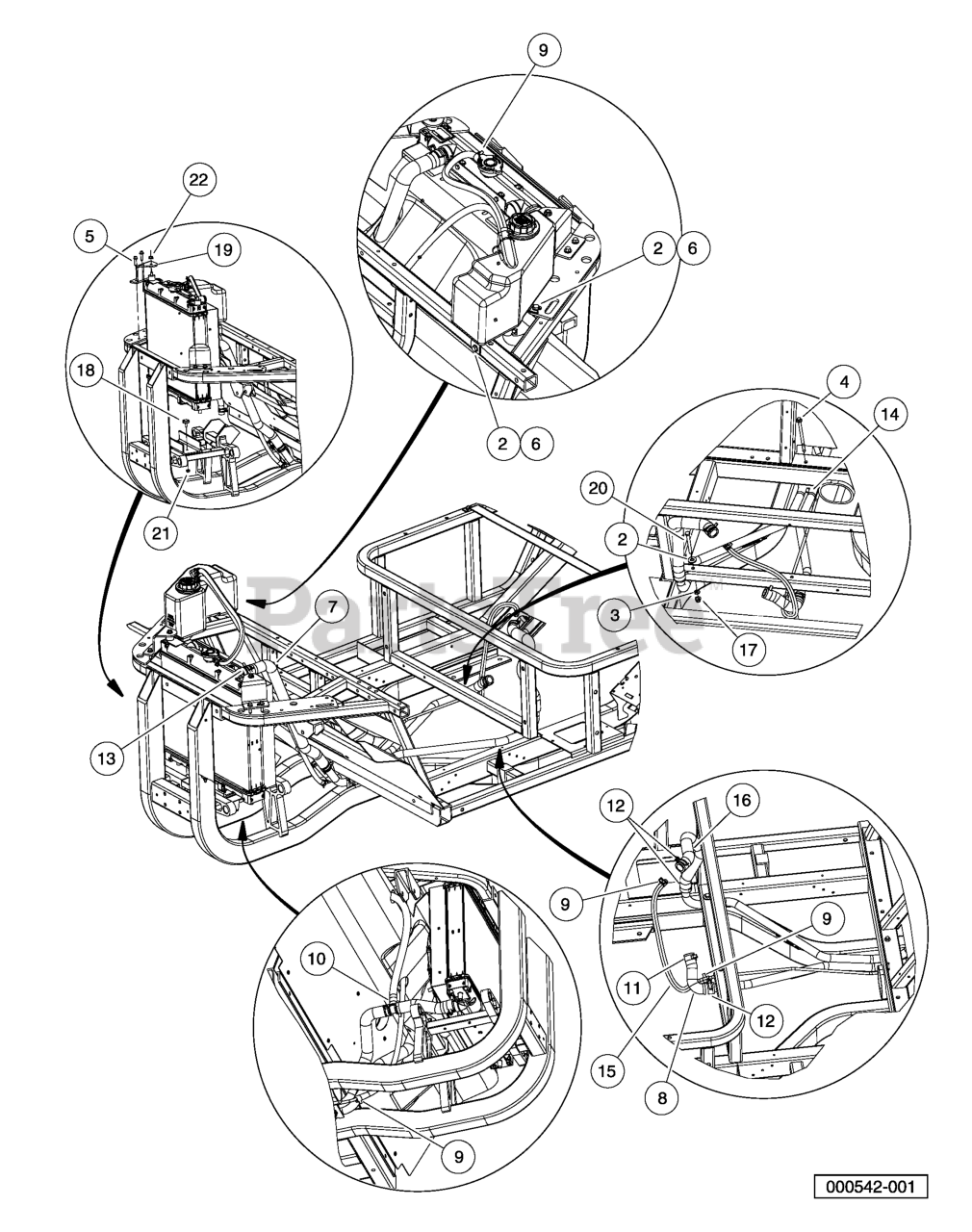

HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Cooling System Clamps, Hoses, and Hardware Parts Diagram

4x4 Utility Vehicle

Cooling System Clamps, Hoses, and Hardware Parts Diagram

  • Title

1

Instl, Cooling Sys, Diesel

Note: (includes items 2 through 22)

$

$

Not available

2

Husqvarna 603003045

WASHER, 5/16 TYPE B FLAT

$

$

Not available

3

Husqvarna 603004501

Spacer, 0.720"

$

$

Currently unavailable

4

Husqvarna 603003584

BOLT-HEX FL, M8 X 1.25 X 135

$

$

Not available

5

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

6

Husqvarna 603003559

M8-1.25X20 TAPTITE

$

$

Not available

7

Husqvarna 603000927

HOSE, COOLANT UPPER RAD

$

$

Not available

8

Husqvarna 603000928

HOSE, COOLANT LOWER ENG

$

$

Not available

9

Husqvarna 603000970

CLAMP, HOSE, CTB 15MM

$

$

Not available

10

Husqvarna 603000971

CLAMP, HOSE, CTB 22MM

$

$

Not available

11

Husqvarna 603000972

CLAMP, HOSE, CTB 30MM

$

$

Not available

12

Husqvarna 603000973

CLAMP, HOSE, CTB 35MM

$

$

Not available

13

Husqvarna 603000974

CLAMP, HOSE, CTB 38MM

$

$

Not available

14

Husqvarna 603001003

CLAMP, BAR

$

$

Not available

15

Husqvarna 603001016

HOSE, VENT TUBE TO ENG, COOLNT

$

$

Not available

16

Husqvarna 603001155

HOSE, COOLANT, RETURN, ENGINE

$

$

Not available

17

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

18

Husqvarna 603003586

BUMPER, 19MM STUD

$

$

Not available

19

Husqvarna 603003587

BRACKET, RADIATOR SUPPORT

$

$

Not available

20

Husqvarna 603004502

Bolt, M8 X 1.25 X 110

$

$

Currently unavailable

21

Husqvarna 603003588

NUT FLG, M6X1 SERRATED

$

$

Not available

22

Husqvarna 603000512

NUT, M8-1.25 FLANGED HEX

$

$

Not available
