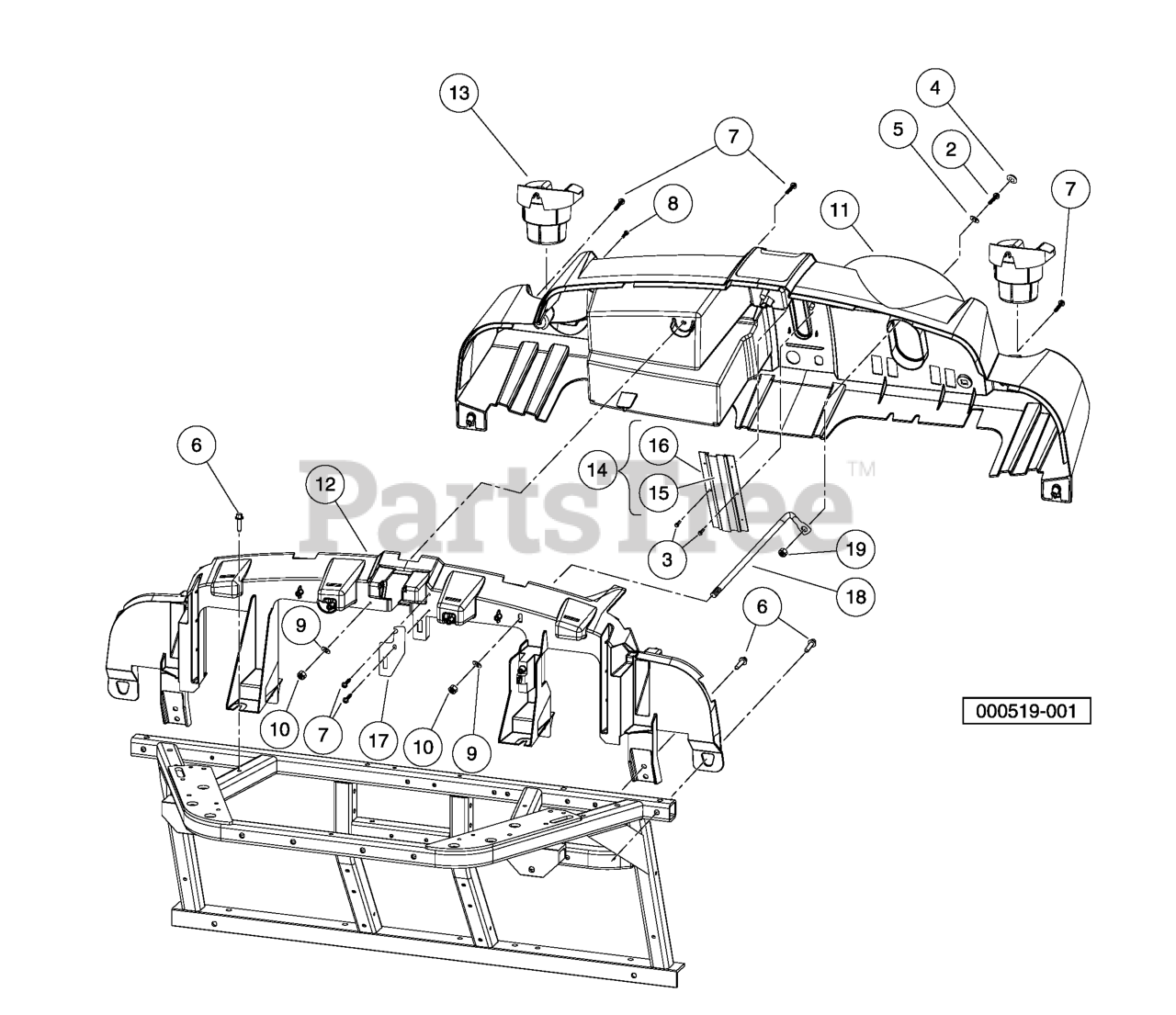

HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Dash Parts Diagram

4x4 Utility Vehicle

Dash Parts Diagram

  • Title

1

Instl, Dash

Note: (includes items 2 through 19)

$

$

Not available

2

Husqvarna 603003153

SCREW, 1/4-20 X 1.50 HX HD CAP

$

$

Not available

3

Husqvarna 603000491

SCREW, #8 X .500 HX HD HI-LO

$

$

Not available

4

Husqvarna 603000729

CAP 1/4" PLASTIC SCREW HEAD

$

$

Not available

5

Husqvarna 603000737

WASHER 1/4 ID SCALLOPED PLAST

$

$

Not available

6

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

7

Husqvarna 603003443

SCREW,M6,TORX,INTERLOCK,THREAD

$

$

Not available

8

Husqvarna 603003585

M8-1.25 X 80 SEMS

$

$

Not available

9

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

10

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

11

Husqvarna 603003444

DASH, DESIGN A

$

$

Not available

12

Husqvarna 603003446

SUPPORT, STRUCTURAL

$

$

Not available

13

Husqvarna 603003447

CUP HOLDER, UTILITY

$

$

Not available

14

Husqvarna 603004408

ASM, BRUSH, FNR

Note: (includes items 15 and 16)

$

$

Not available

15

Husqvarna 603003448

BRUSH, STRIP, FNR
(Superseded to 603004408)

$

$

Not available

16

Husqvarna 603003449

HOLDER, BRUSH, STRIP, FNR
(Superseded to 603004408)

$

$

Not available

17

Husqvarna 603003451

BRACKET, HOOD SUPPORT

$

$

Not available

18

Husqvarna 603004082

ROD, CONNECTION, DASH

$

$

Not available

19

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available
