HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Forward/Reverse Shifter Assembly Parts Diagram

4x4 Utility Vehicle

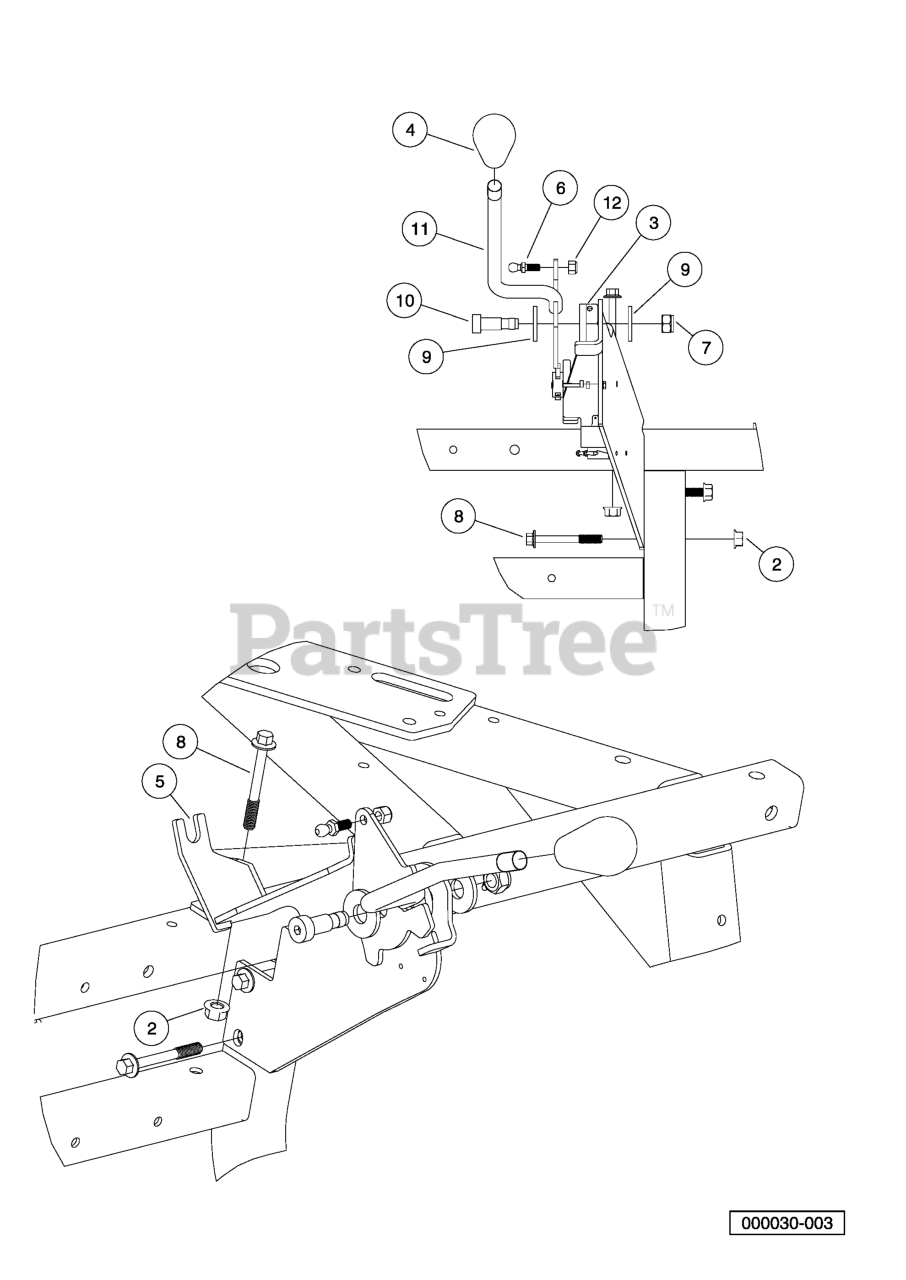

Forward/Reverse Shifter Assembly Parts Diagram

  • Title

1

Husqvarna 603004505

Instl, Fnr, Shifter, Dom

Note: (includes items 2 through 13)

$

$

Currently unavailable

2

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

Usually ships in 3-10 days

0

3

Husqvarna 603000923

BUSHING, FNR

$

$

Not available

4

Husqvarna 603000924

KNOB, FNR

$

$

Not available

5

Weldment, FNR Shifter Bracket

$

$

Not available

6

Husqvarna 603001288

STUD, BALL, .346 DIA

$

$

Not available

7

Husqvarna 603001295

LOCKNUT-M10X1.5

$

$

Not available

8

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

9

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available

10

Husqvarna 603001600

SHOULDER BOLT,M12 X 20 M10 THD

$

$

Not available

11

Husqvarna 603003560

WELDMENT, FNR SHIFTER

$

$

Not available

12

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

13

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available
