HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Fuel Tank - Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

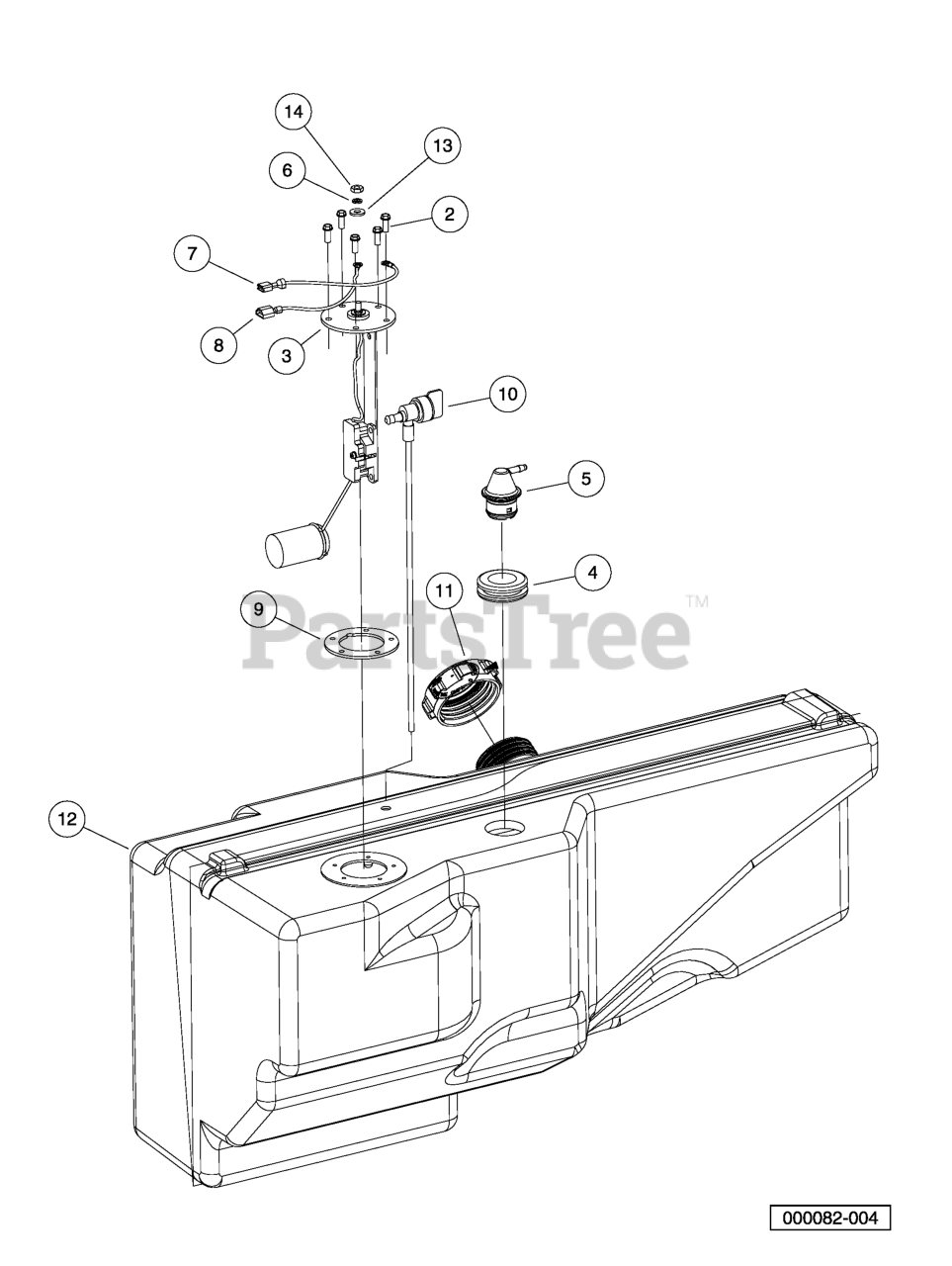

Fuel Tank - Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603000950

ASM, TANK, GASOLINE, SIDEFILL

Note: (includes items 2 through 14)

$

$

Not available

2

Husqvarna 603000173

SCREW

Note: "Special order item available upon request., Note: Must replace fuel sending unit gasket when servicing this component."

$

$

Not available

3

Sending Unit, Fuel Level *

$

$

Not available

4

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

5

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available

6

Husqvarna 603000061

WASHER,#10 SPLIT WASH

$

$

Not available

7

Wire Asm, Blk, 170mm

$

$

Not available

8

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 603003057

GASKET, SEND UNIT (RUBBER)

$

$

Not available

10

Husqvarna 603001588

VALVE, PICKUP TUBE, FUEL

$

$

Not available

11

Husqvarna 531309543

CAP, FUEL TANK - GASOLINE

$

$

Not available

12

Tank, Fuel, Gas, 4x4

$

$

Not available

13

Husqvarna 603000051

WASHER FLAT

$

$

Not available

14

Husqvarna 603000097

NUT, #10-32 BRASS HEX

$

$

Not available
