HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Gasket Kits Parts Diagram

4x4 Utility Vehicle

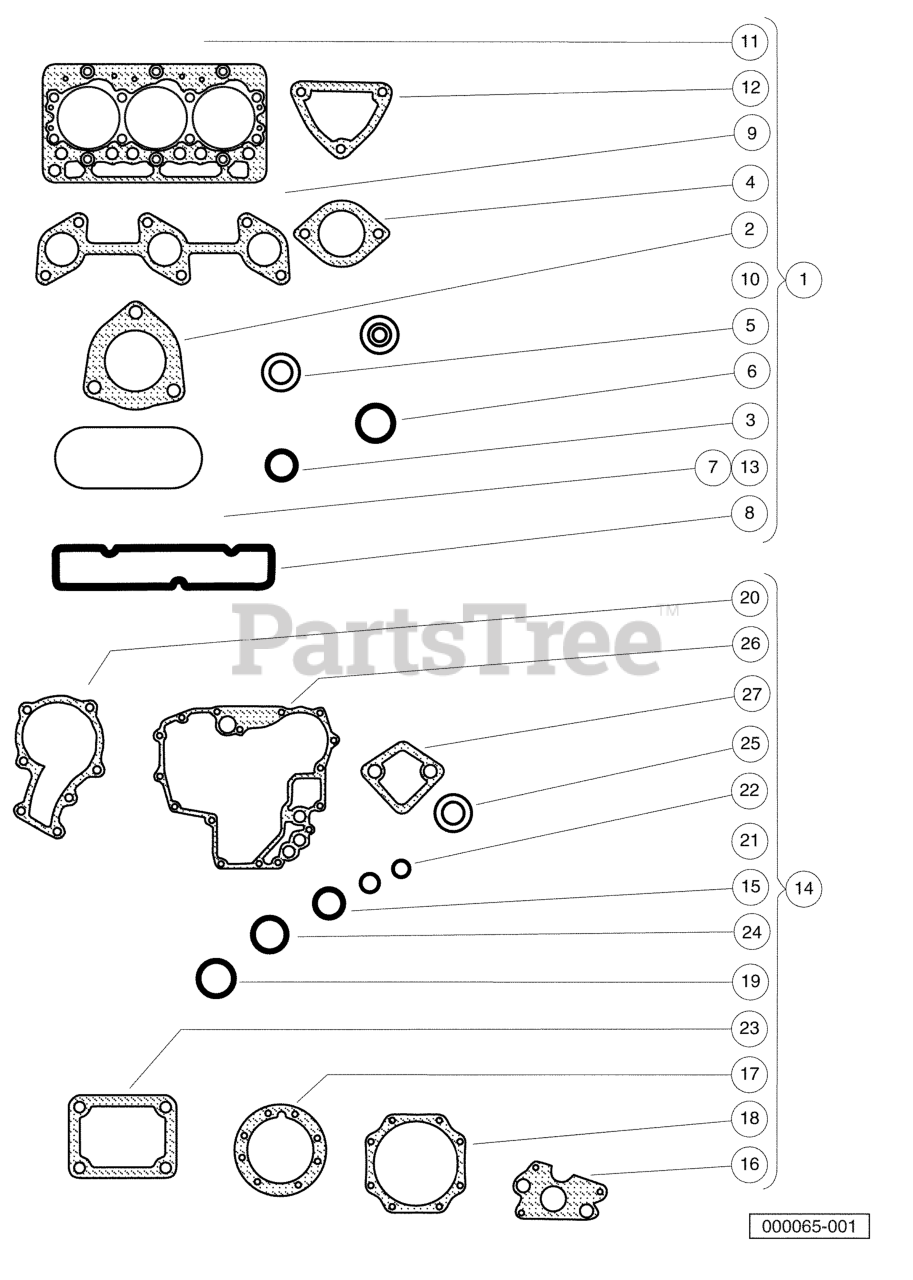

Gasket Kits Parts Diagram

  • Title

1

Husqvarna 603001755

KIT, GASKET UPPER, D722

Note: (includes items 2 through 13)

$

$

Not available

2

Husqvarna 603000996

GASKET, EXHAUST DIESEL

$

$

Not available

3

Husqvarna 603001202

O-RING, 8 X 7

$

$

Not available

4

Husqvarna 603001353

GASKET, THERMOSTAT

$

$

Not available

5

Husqvarna 603001369

GASKET, 6X10

$

$

Not available

6

Husqvarna 603001406

O RING, 30X36

$

$

Not available

7

Husqvarna 603001410

GASKET, HEAD COVER

$

$

Not available

8

Husqvarna 603001419

GASKET, IN-MANIFOLD

$33.99

$

Usually ships in 3-10 days

0

9

Husqvarna 603001424

GASKET, EX-MANIFOLD

$

$

Not available

10

Husqvarna 603001449

SEAL, VALVE STEM

$

$

Not available

11

Husqvarna 603001455

GASKET, CYLINDER HEAD

$

$

Not available

12

Husqvarna 603001460

GASKET, WATER FLANGE

$

$

Not available

13

Husqvarna 603001823

GASKET-HEAD COVER

$

$

Not available

14

Husqvarna 603001756

KIT, GASKET LOWER, D722

Note: (includes items 15 through 27)

$

$

Not available

15

Husqvarna 603001212

O-RING, 18 X 13

$

$

Not available

16

Husqvarna 603001249

GASKET, OIL PUMP NA

$

$

Not available

17

Husqvarna 603001262

GASKET, BEARING CASE

$

$

Not available

18

Husqvarna 603001263

GASKET, COVER

$

$

Not available

19

Husqvarna 603001333

O RING, 23X26

$

$

Not available

20

Husqvarna 603001349

GASKET, WATER PUMP, D722

$

$

Not available

21

Husqvarna 603001358

O RING, 19X16

$

$

Not available

22

Husqvarna 603001362

O RING, 9X7

$

$

Not available

23

Husqvarna 603001363

GASKET, CONTROL PLATE

$

$

Not available

24

Husqvarna 603001459

O RING, 20 X 17

$

$

Not available

25

Husqvarna 603002800

GASKET, IDLE APPARATUS, REAR

$

$

Not available

26

Husqvarna 603001731

GASKET, GEARCASE, D722

$

$

Not available

27

Husqvarna 603001762

GASKET, FUEL PUMP, D722

$

$

Not available
