HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Governor Arm and Springs Parts Diagram

4x4 Utility Vehicle

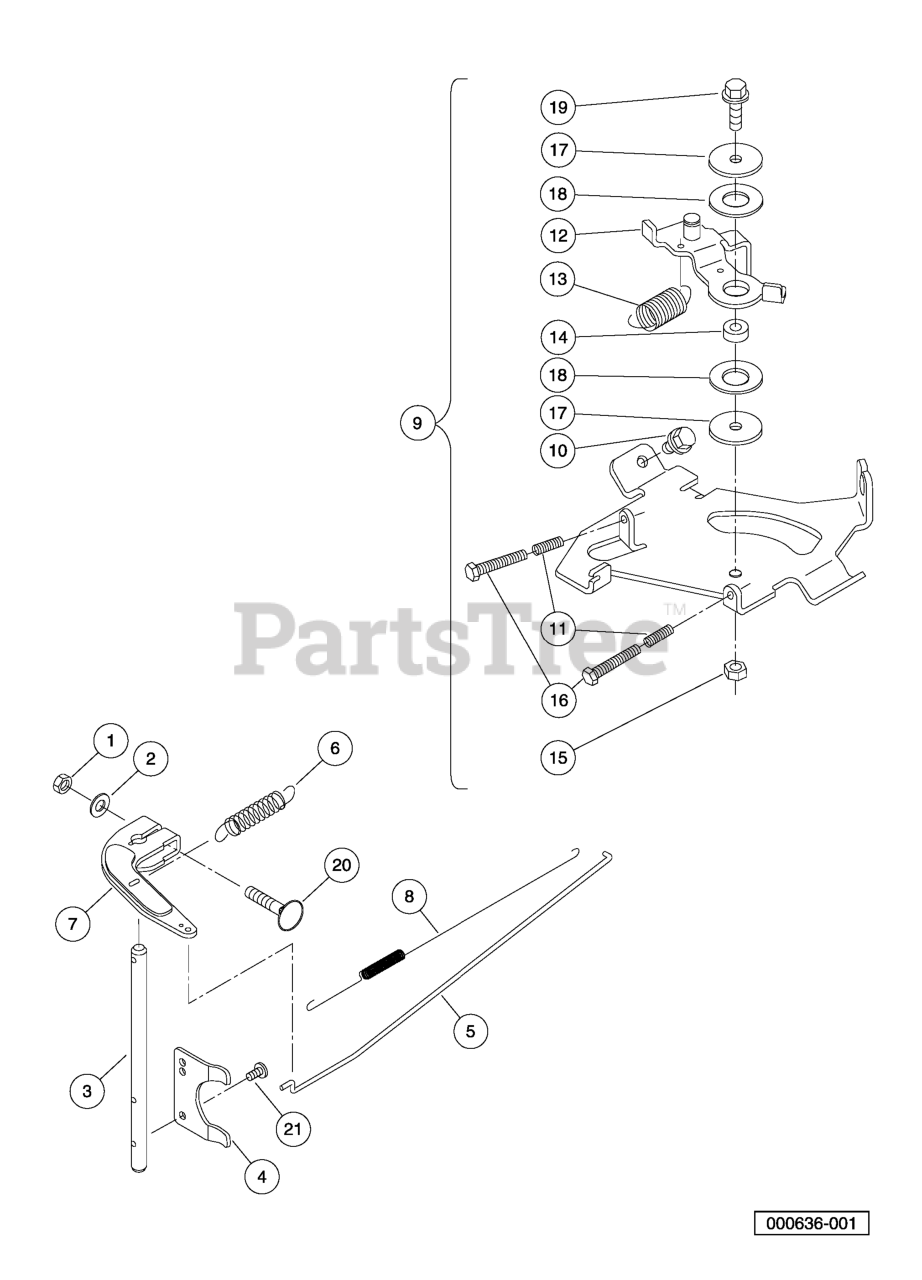

Governor Arm and Springs Parts Diagram

  • Title

1

Husqvarna 603004410

NUT -6MM-

$

$

Not available

2

Husqvarna 603000329

WASHER, M6 FLAT

$

$

Not available

3

Husqvarna 603003860

SHAFT, GOVERNOR, FH

$

$

Not available

4

Husqvarna 603003859

PLATE, GOVERNOR, FH

$

$

Not available

5

Husqvarna 603003858

LINK, ARM, GOVERNOR, FH

$

$

Not available

6

Husqvarna 603003857

SPRING, GOVERNOR, FH

$

$

Not available

7

Husqvarna 603003856

ARM, GOVERNOR, SHAFT , FH

$

$

Not available

8

Husqvarna 603003854

SPRING, ARM, GOVERNOR, FH

$

$

Not available

9

Husqvarna 603003826

PANEL, CONTROL, COMPLETE, FH

Note: (includes items 10 through 19)

$

$

Not available

10

Husqvarna 603003928

BOLT, FLG, M6 X 1.0 X 12

$

$

Not available

11

Husqvarna 603003855

SPRING, FH

$

$

Not available

12

Husqvarna 603003829

LEVER, GOVERNOR, CONTROL, FH

$

$

Not available

13

Husqvarna 603003828

SPRING, GOVERNOR RETURN, FH

$

$

Not available

14

Husqvarna 603003827

COLLAR, GOVERNOR, FH

$

$

Not available

15

Husqvarna 603003825

NUT, GOVERNOR, FH

$

$

Not available

16

Husqvarna 603003824

BOLT, SPEED CONTROL, FH

$

$

Not available

17

Husqvarna 603003822

WASHER, GOVERNOR, LOWER, FH

$

$

Not available

18

Husqvarna 603003821

WASHER, GOVERNOR, MIDDLE, FH

$

$

Not available

19

Husqvarna 603003820

BOLT, FLANGED, M6 X 20, KAW

$

$

Not available

20

Husqvarna 603003823

BOLT M6X35 KAWASAKI

$

$

Not available

21

Husqvarna 603003819

SCREW, PAN, GOVERNOR, FH

$

$

Not available
