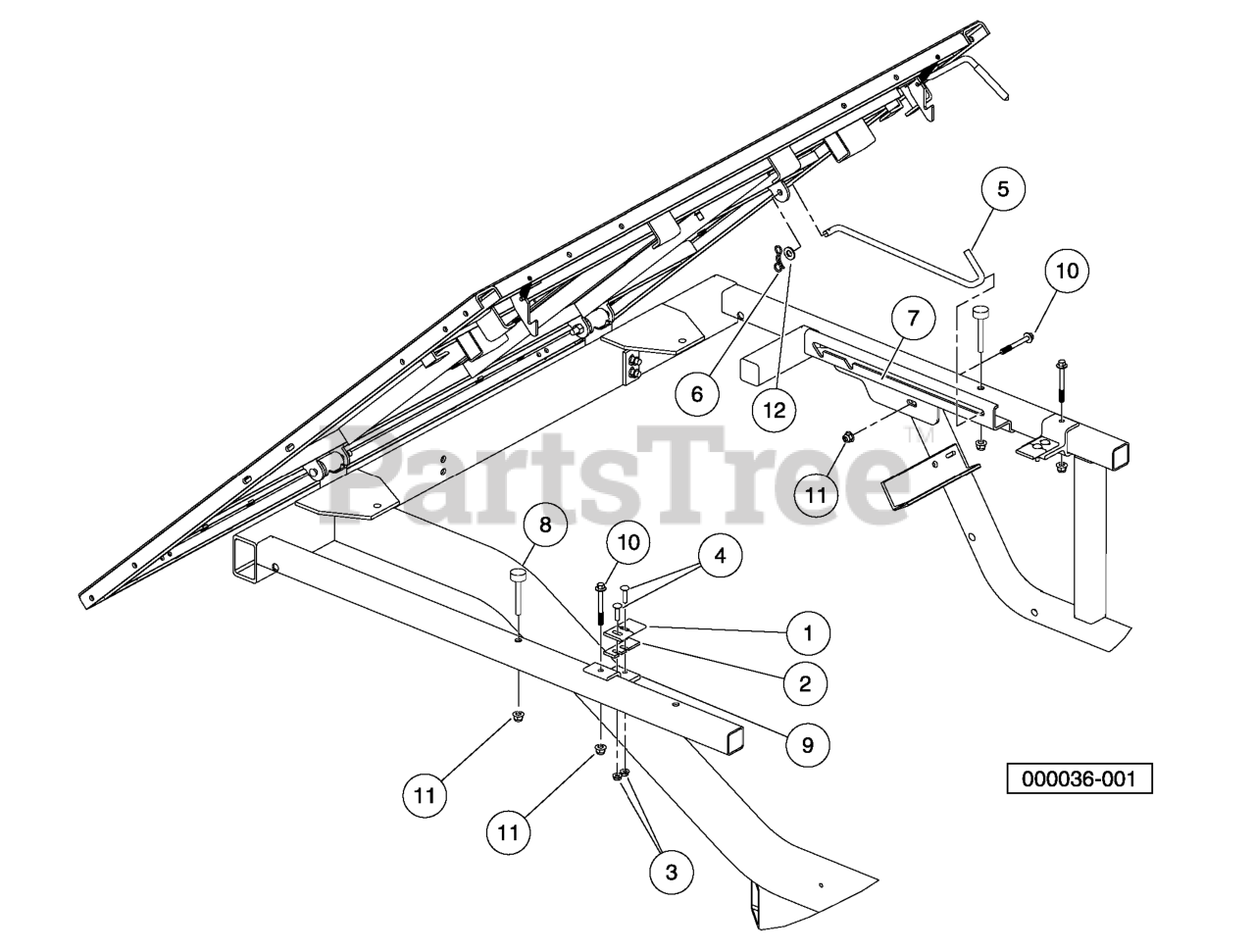

HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Latch Plate and Prop Rod Parts Diagram

4x4 Utility Vehicle

Latch Plate and Prop Rod Parts Diagram

  • Title

1

Husqvarna 603000246

LATCH PLATE

$

$

Not available

2

Husqvarna 603000278

LATCH PLATE SHIM

$

$

Not available

3

Husqvarna 603000521

LOCKNUT, 1/4-20 HEX WHIZ

$

$

Not available

4

Husqvarna 603000613

BOLT, 1/4-20 X 1.0 RD HD SQ NK

$

$

Not available

5

Husqvarna 603000878

ROD, PROP

$

$

Not available

6

Husqvarna 603000882

PIN, BOW TIE LOCKING

$

$

Not available

7

Husqvarna 603002763

TRACK, PROP ROD

$

$

Not available

8

Husqvarna 603001001

BUMPER, BED, MTG, FRONT

$

$

Not available

9

Husqvarna 603002786

BRKT, LATCH, BED

$

$

Not available

10

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

11

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

12

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available
