HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Oil and Lubrication Components Parts Diagram

4x4 Utility Vehicle

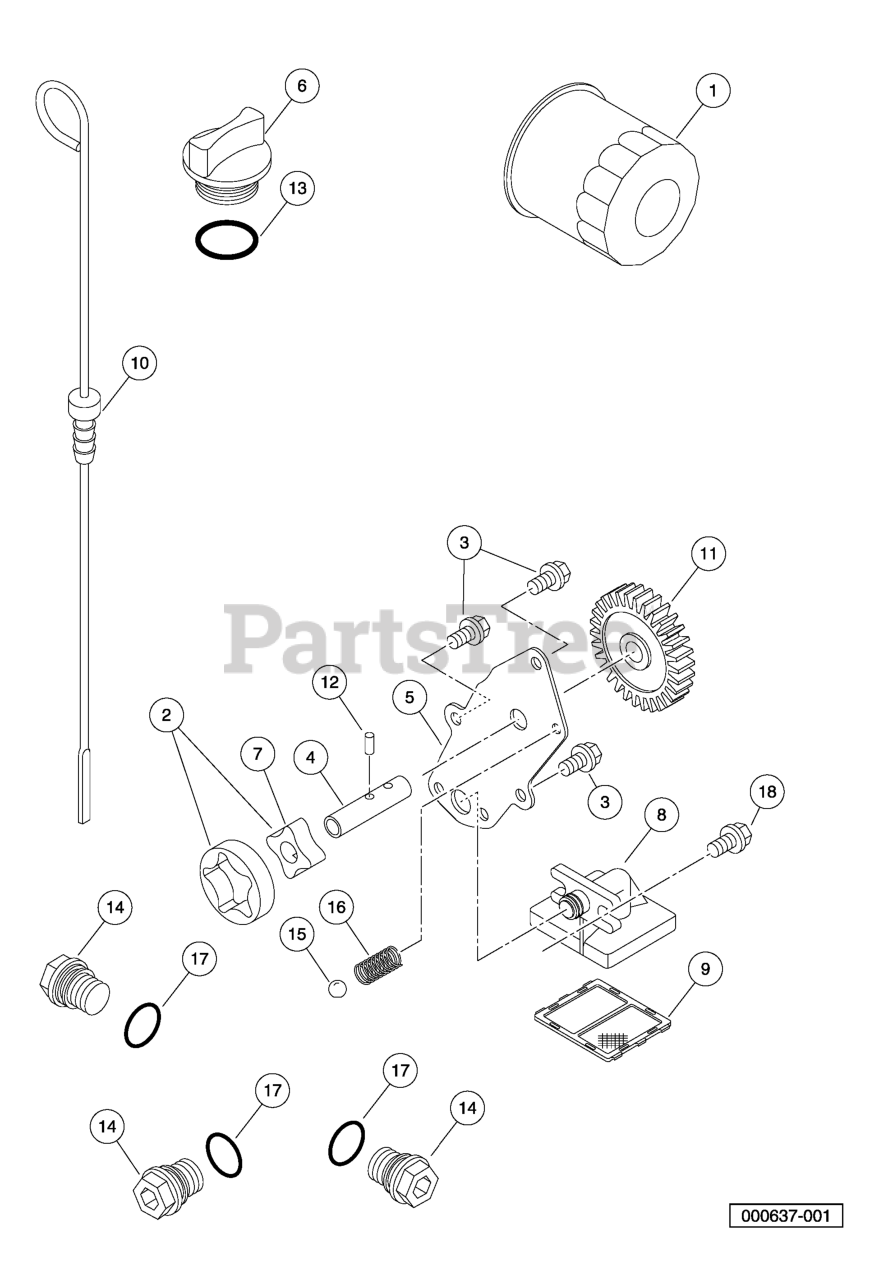

Oil and Lubrication Components Parts Diagram

  • Title

1

Husqvarna 603000006

FILTER, OIL

$

$

Not available

2

Husqvarna 603000471

OIL PUMP AND ROTOR

$

$

Not available

3

Husqvarna 603003928

BOLT, FLG, M6 X 1.0 X 12

$

$

Not available

4

Husqvarna 603003890

SHAFT, OIL PUMP, FH

$

$

Not available

5

Husqvarna 603003889

PLATE, OIL PUMP, FH

$

$

Not available

6

Husqvarna 603003888

CAP, OIL, FILL, FH

$

$

Not available

7

Husqvarna 603003887

ROTOR, PUMP, OIL, IN, FH

$

$

Not available

8

Husqvarna 603003886

PICKUP, OIL, FH

$

$

Not available

9

Husqvarna 603003884

SCREEN, PICKUP, OIL, FH

$

$

Not available

10

Husqvarna 603003883

GAUGE, OIL, FH

$

$

Not available

11

Husqvarna 603003882

GEAR, SPUR, OIL PUMP, FH

$

$

Not available

12

Husqvarna 603003881

PIN, OIL PUMP, FH

$

$

Not available

13

Husqvarna 603003880

O-RING, CAP, OIL, FILL, FH

$

$

Not available

14

Husqvarna 603003879

PLUG, OIL DRAIN, FH

$

$

Not available

15

Husqvarna 603003878

BALL, OIL PUMP, FH

$

$

Not available

16

Husqvarna 603003877

SPRING, OIL PUMP, FH

$

$

Not available

17

Husqvarna 603003876

O-RING, DRAIN PLUG, OIL, FH

$

$

Not available

18

Husqvarna 603003809

Bolt, Oil Pickup, Fh

$

$

Currently unavailable
