HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Rear Suspension - Standard Parts Diagram

4x4 Utility Vehicle

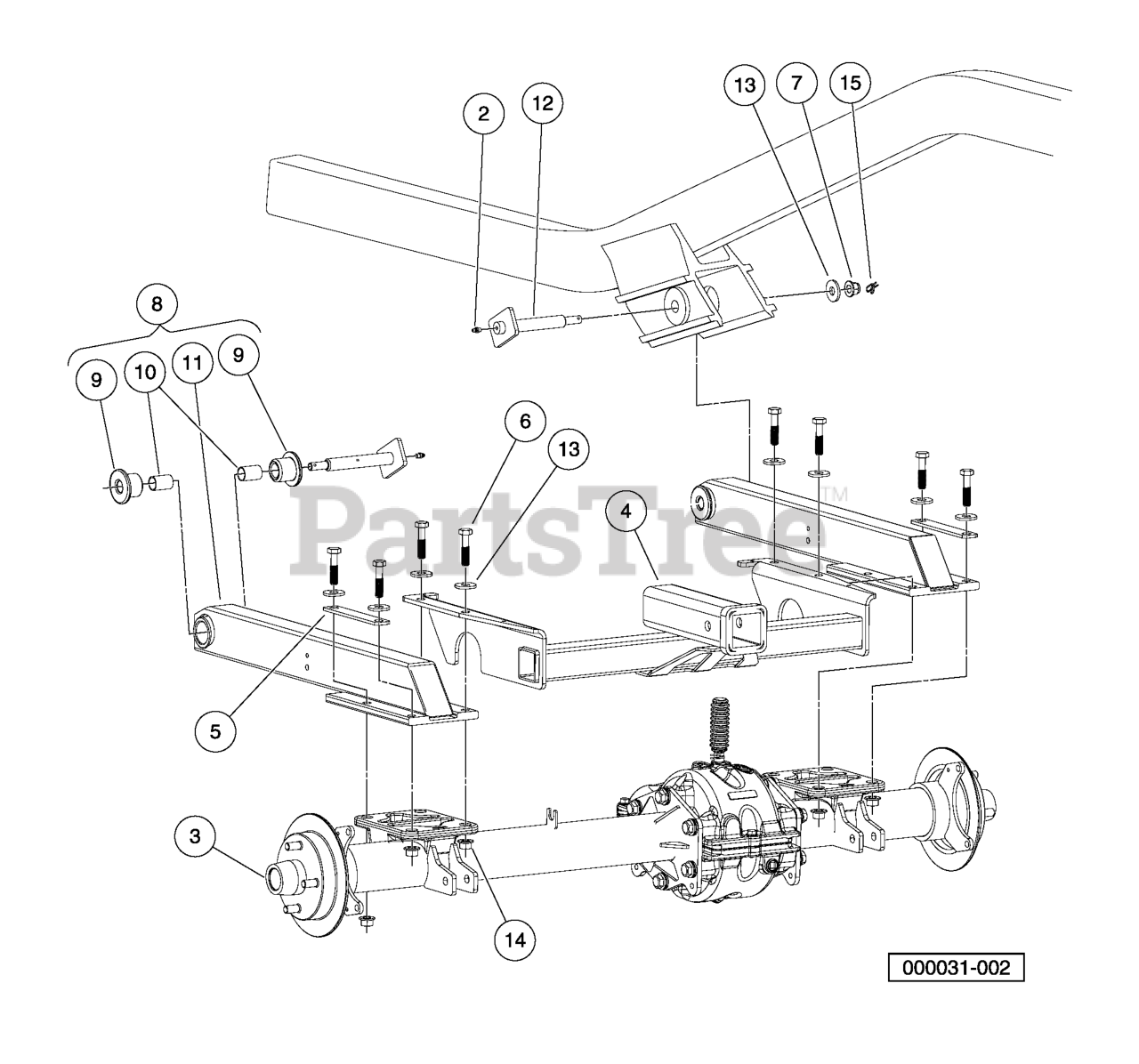

Rear Suspension - Standard Parts Diagram

  • Title

1

Instl, Rear Suspension

Note: (includes items 2 through 15)

$

$

Not available

2

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 603000866

CENTER CAP, RUBBER

$

$

Not available

4

Husqvarna 603000941

WELDMENT, RECEIVER, REAR

$

$

Not available

5

Husqvarna 603001310

WASHER, STRIP, SWINGARM

$

$

Not available

6

Husqvarna 603001311

BOLT FLG, M12X1.75X50

$

$

Not available

7

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

8

Sub Asm Swingarm

Note: (includes items 9 through 11)

$

$

Not available

9

Husqvarna 603000944

BUSHING, PIVOT, URETHANE

$

$

Not available

10

Husqvarna 603001148

BUSHING, TEFLON

$

$

Not available

11

Husqvarna 603004117

SWINGARM, REAR, AWD

$

$

Not available

12

Husqvarna 603001597

PIN, SWINGARM, WELDMENT

$

$

Not available

13

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available

14

Husqvarna 603001602

NUT

$

$

Not available

15

Husqvarna 603001763

COTTER-RUE RING

$

$

Not available
