HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Transmission - Diesel Vehicles, Continued Parts Diagram

4x4 Utility Vehicle

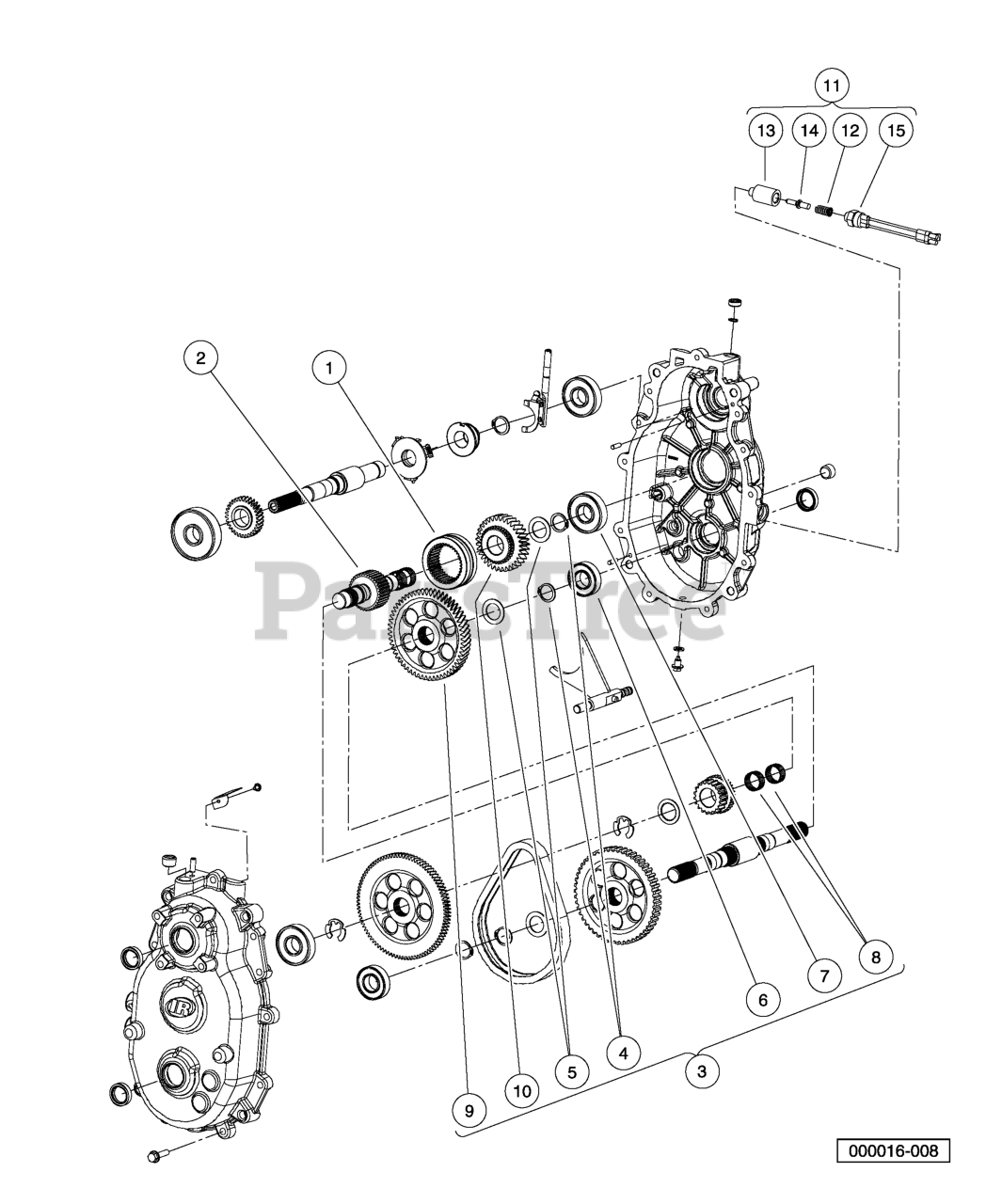

Transmission - Diesel Vehicles, Continued Parts Diagram

  • Title

1

Husqvarna 603002826

DOG, ENGAGEMENT

$

$

Not available

2

Husqvarna 603002836

SHAFT, INTERMEDIATE

$

$

Not available

3

Husqvarna 603001784

KIT-FORWARD GEAR REPAIR

Note: (includes items 4 through 10)

$

$

Not available

4

Husqvarna 603001642

RING, RETAINING, BASIC EXTERNA

$

$

Not available

5

Husqvarna 603001645

WASHER, THRUST, 1.007 X .062

$

$

Not available

6

Husqvarna 603001648

BEARING, BALL, 6205 C3

$

$

Not available

7

Husqvarna 603001649

BEARING, BALL, 6305 C3

$

$

Not available

8

Husqvarna 603001651

BEARING, NEEDLE, SPLIT CAGE

$

$

Not available

9

Gear, Helical 58-Tooth

$

$

Not available

10

Gear, Helical 34-Tooth

$

$

Not available

11

Husqvarna 603001786

KIT-NEUTRAL SWITCH REPAIR

Note: (includes items 12 through 15)

$

$

Not available

12

Spring, .484 X .340 X 1.07

$

$

Not available

13

Guide, Detent Bullet

$

$

Not available

14

Bullet, Detent

$

$

Not available

15

Switch, Indicator, Pollak

$

$

Not available
