HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) FRONT DIFFERENTIAL MOUNTING AND HALF SHAFTS Parts Diagram

4x4 Utility Vehicle, Diesel

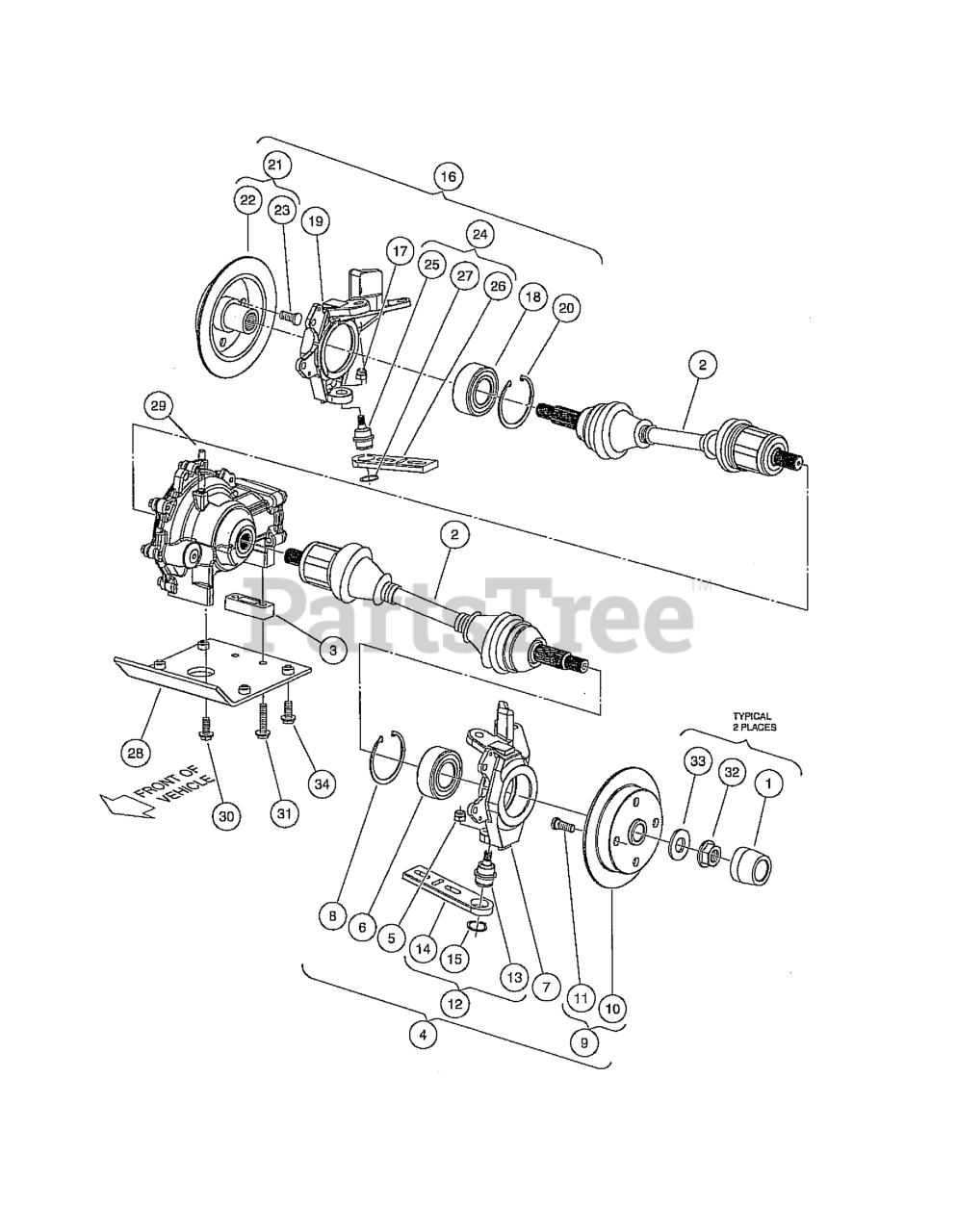

FRONT DIFFERENTIAL MOUNTING AND HALF SHAFTS Parts Diagram

  • Title

13

Husqvarna 603000891

BALL JOINT

$

$

Not available

6

Husqvarna 603000899

BEARING, 52082RS

$

$

Not available

4

Husqvarna 603001019

UPRIGHT SUB ASSEMBLY LH
(Superseded to 522718636)

$

$

Not available

25

Husqvarna 603000891

BALL JOINT

$

$

Not available

21

Husqvarna 603000925

ASSY, ROTOR, BRAKE, FRONT

$310.99

$

In Stock, only 1 left!

0

17

Husqvarna 603000684

LOCKNUT, M12-1.25 NYLON

$

$

Not available

20

Husqvarna 603000917

INT RETAINING RING, 80MM BORE

$

$

Not available

33

Husqvarna 603001304

WASHER HARD, M22

$12.99

$

In Stock, only 1 left!

0

29

Husqvarna 603001112

HOSE, VENT, FRONT DIFF

$

$

Not available

27

Husqvarna 603001684

RING, RETAINING, EXT, 1-1/4"

$5.49

$

In Stock, Qty 9

0

3

Husqvarna 603000936

SPACER BLOCK, DIFF

$

$

Not available

28

Husqvarna 603001092

MOUNT, DIFF PLATE ASM
(Superseded to 603003562)

$

$

Not available

31

Husqvarna 603001172

BOLT FLG,3/8-16X1.500 LOCTITE

$

$

Not available

16

Husqvarna 603001020

UPRIGHT SUB ASSEMBLY RH
(Superseded to 522718636)

$

$

Not available

15

Husqvarna 603001684

RING, RETAINING, EXT, 1-1/4"

$5.49

$

In Stock, Qty 9

0

32

Husqvarna 603001302

NUT FLG, M22 X 1.5 MECH DEF

$

$

Not available

9

Husqvarna 603000925

ASSY, ROTOR, BRAKE, FRONT

$310.99

$

In Stock, only 1 left!

0

14

Husqvarna 603001064

SLIDE, ADJUSTER

$

$

Not available

34

Husqvarna 603001669

BOLT, FLANGE, M10 X 1.5 X 25

$

$

Not available

12

Husqvarna 603001153

ASM, ADJUSTER, SLIDE

$

$

Not available

2

Husqvarna 603000914

HALF SHAFT
(Superseded to 531309544)

$

$

Not available

5

Husqvarna 603000684

LOCKNUT, M12-1.25 NYLON

$

$

Not available

26

Husqvarna 603001064

SLIDE, ADJUSTER

$

$

Not available

30

Husqvarna 603001171

BOLT FLG, 3/8-16X1.0 LOCTITE

$

$

Not available

24

Husqvarna 603001153

ASM, ADJUSTER, SLIDE

$

$

Not available

8

Husqvarna 603000917

INT RETAINING RING, 80MM BORE

$

$

Not available

1

Husqvarna 603000866

CENTER CAP, RUBBER

$

$

Not available

18

Husqvarna 603000899

BEARING, 52082RS

$

$

Not available
