HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) FRONT SEATS AND CUP HOLDER Parts Diagram

4x4 Utility Vehicle, Diesel

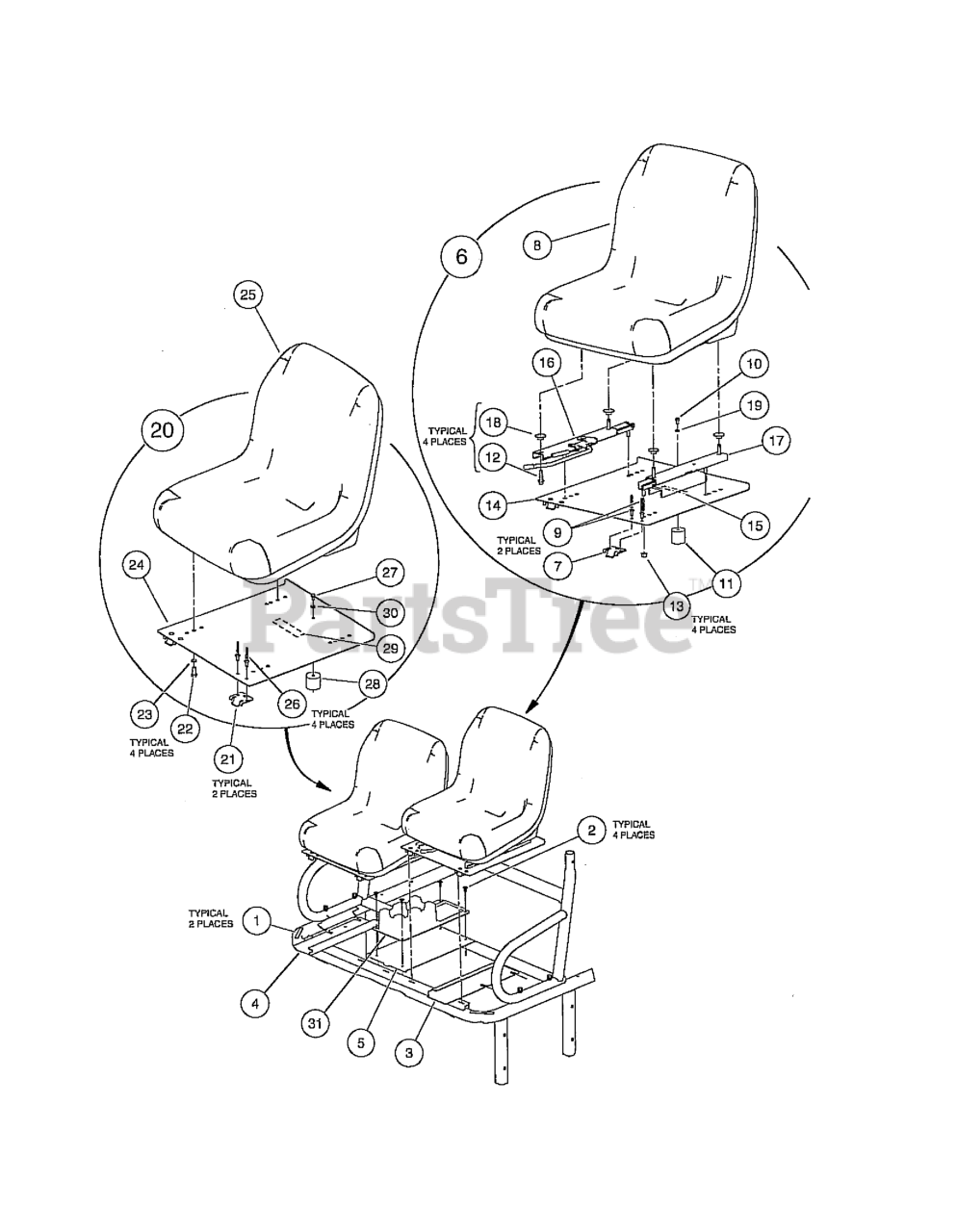

FRONT SEATS AND CUP HOLDER Parts Diagram

  • Title

23

Husqvarna 603000184

LOCKWASH

$

$

Not available

5

Husqvarna 603001049

PAN, CENTER, CLOSEOUT

$

$

Not available

4

Husqvarna 603000999

CLOSEOUT, PASSENGER SIDE

$

$

Not available

16

Husqvarna 603001137

ADJUSTER, FORE/AFT

$

$

Not available

17

Husqvarna 603001138

ADJUSTER, SLIDER

$

$

Not available

12

Husqvarna 603000875

BOLT - FLANGED HD, M8 X 30.0

$

$

Not available

18

Husqvarna 603001145

WASHER, BELL

$

$

Not available

13

Husqvarna 603000877

NUT, M8, ALL METAL LOCK

$

$

Not available

14

Husqvarna 603001093

PAN, SEAT, DRIVER ASM

$

$

Not available

7

Husqvarna 603000125

HINGE PLATE

$

$

Not available

8

Husqvarna 603000699

BUCKET SEAT, GRAY
(Superseded to 603004079)

$433.99

$

In Stock, only 1 left!

0

10

Husqvarna 603000774

SCREW, 6M-1.00 X 10MM HEX HEAD

$

$

Not available

22

Husqvarna 603000158

SCREW
(Superseded to 603000579)

$

$

Not available

9

Husqvarna 603000736

RIVET, 1/4 X .438 BLIND

$

$

Not available

26

Husqvarna 603000736

RIVET, 1/4 X .438 BLIND

$

$

Not available

2

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

3

Husqvarna 603000998

CLOSEOUT, DRIVER SIDE

$

$

Not available

27

Husqvarna 603000774

SCREW, 6M-1.00 X 10MM HEX HEAD

$

$

Not available

31

Husqvarna 603001161

CONSOLE, CENTER, DRINK HLDR

$

$

Not available

30

Husqvarna 603000058

LOCKWASHER, 1/4 HELICAL SPLIT

$

$

Not available

11

Husqvarna 603000777

SEAT HOLDER CUP

$

$

Not available

24

Husqvarna 603000689

PAN, SEAT - PASSENGER

$

$

Not available

28

Husqvarna 603000777

SEAT HOLDER CUP

$

$

Not available

15

Husqvarna 603001102

DECAL, WARNING HOT SURFACE

$

$

Not available

21

Husqvarna 603000125

HINGE PLATE

$

$

Not available

25

Husqvarna 603000699

BUCKET SEAT, GRAY
(Superseded to 603004079)

$433.99

$

In Stock, only 1 left!

0

19

Husqvarna 603000058

LOCKWASHER, 1/4 HELICAL SPLIT

$

$

Not available

1

Husqvarna 603000229

BOX INS.BULK

$

$

Not available

29

Husqvarna 603001102

DECAL, WARNING HOT SURFACE

$

$

Not available
