HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) PARKING BRAKE Parts Diagram

4x4 Utility Vehicle, Diesel

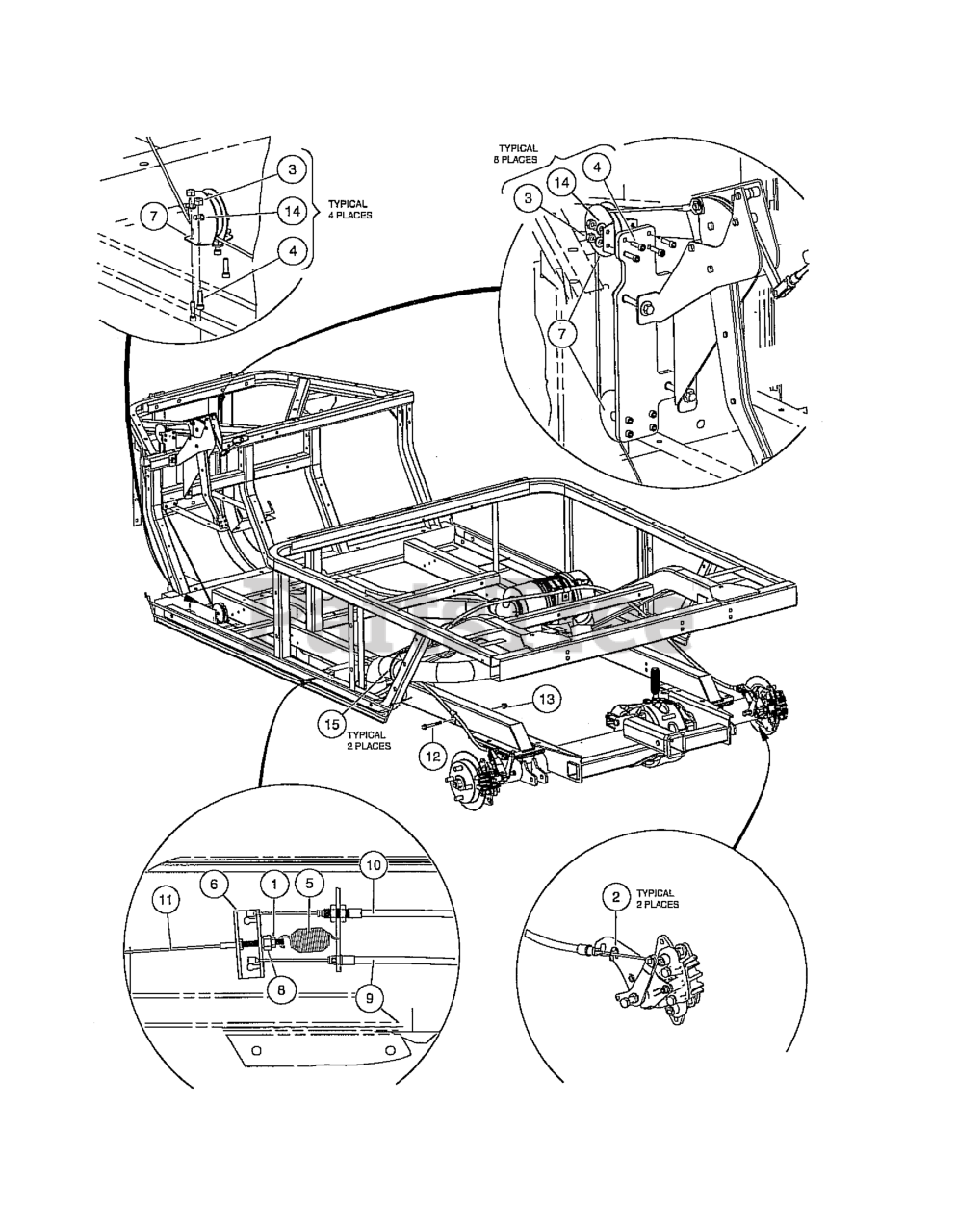

PARKING BRAKE Parts Diagram

  • Title

5

Husqvarna 603000175

SPRING, BRAKE RETURN

$

$

Not available

2

Husqvarna 603000130

E-CLIP, 1/2

$2.49

$

In Stock, only 2 left!

0

15

Husqvarna 603000093

TIE WRAP , 11" NYLON

$

$

Not available

10

Husqvarna 603001054

CABLE, BRAKE, PARKING, RIGHT

$

$

Not available

9

Husqvarna 603001053

CABLE, BRAKE, PARKING, LEFT

$

$

Not available

1

Husqvarna 603000109

NUT, 5/16-24 HEX

$

$

Not available

8

Husqvarna 603000766

NUT, 5/16-24 HEX CONE

$

$

Not available

11

Husqvarna 603001179

CABLE, BRAKE, PARKING, FRONT

$

$

Not available

3

Husqvarna 603000141

LOCKNUT

$2.49

$

In Stock, only 1 left!

0

13

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

4

Husqvarna 603000455

SCREW, #10-24 X 3/4 SOCKET HD

$3.49

$

In Stock, only 4 left!

0

14

Husqvarna 603000051

WASHER FLAT

$

$

Not available

12

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

6

Husqvarna 603000632

EQUALIZER BRACKET, PREC

$

$

Not available
