HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Front Body Components Parts Diagram

4x4 Utility Vehicle, Diesel

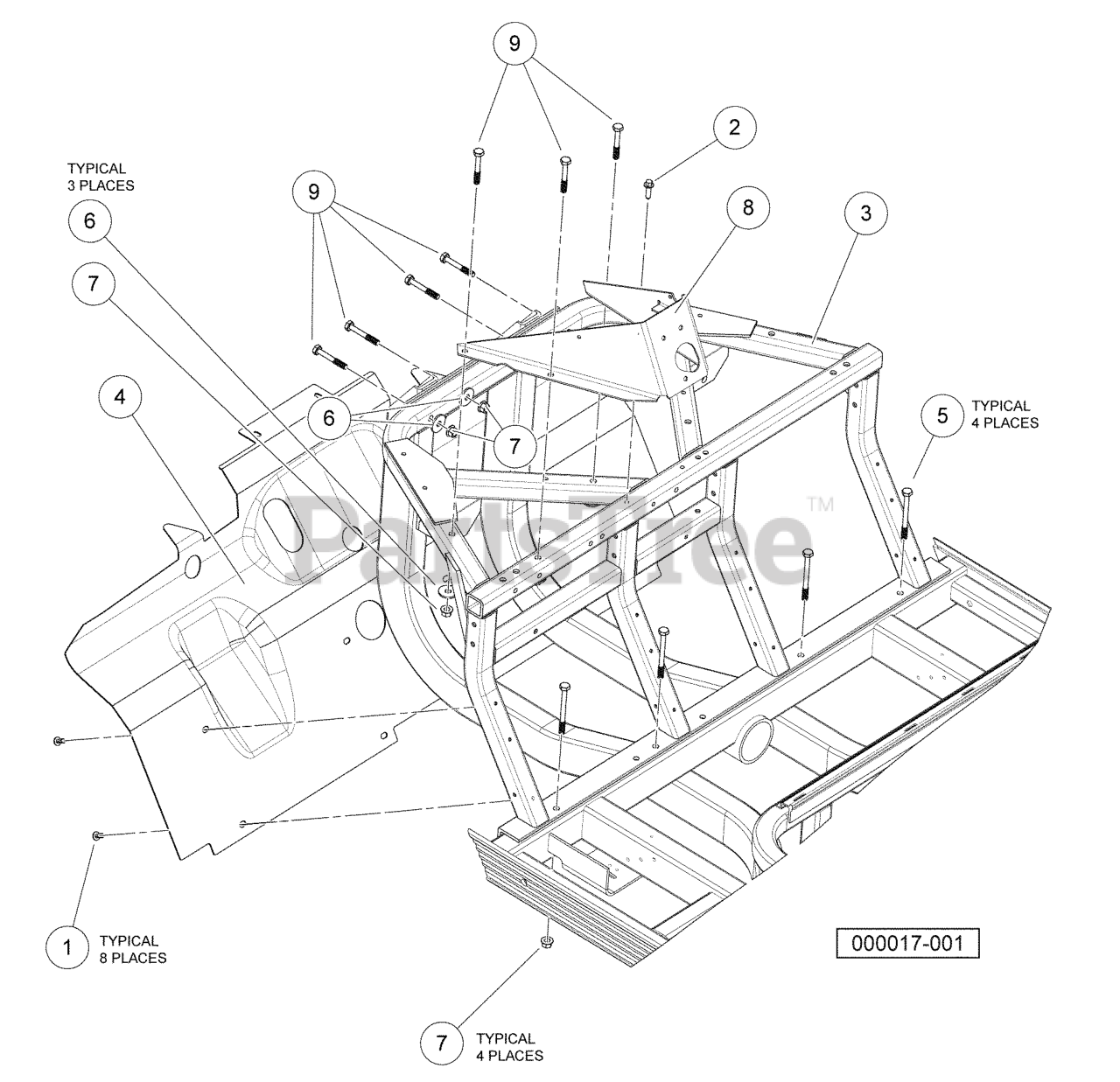

Front Body Components Parts Diagram

  • Title

1

Husqvarna 603000379

BLIND RIVET, PUSH TYPE

$

$

Not available

2

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

3

Weldment, Dash, Front

Note: Special order item available upon request.

$

$

Not available

4

Husqvarna 603001024

GUARD, SPLASH

$

$

Not available

5

Husqvarna 603001759

BOLT, M10 X 100, ZN-NI/BLK

Note: (Black)

$

$

Not available

6

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

7

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

8

Bracket, Support, Steering

Note: Special order item available upon request.

$

$

Not available

9

Husqvarna 603000448

BOLT, M10 X 1.50 X 65

$

$

Not available
