HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Idle Apparatus Parts Diagram

4x4 Utility Vehicle, Diesel

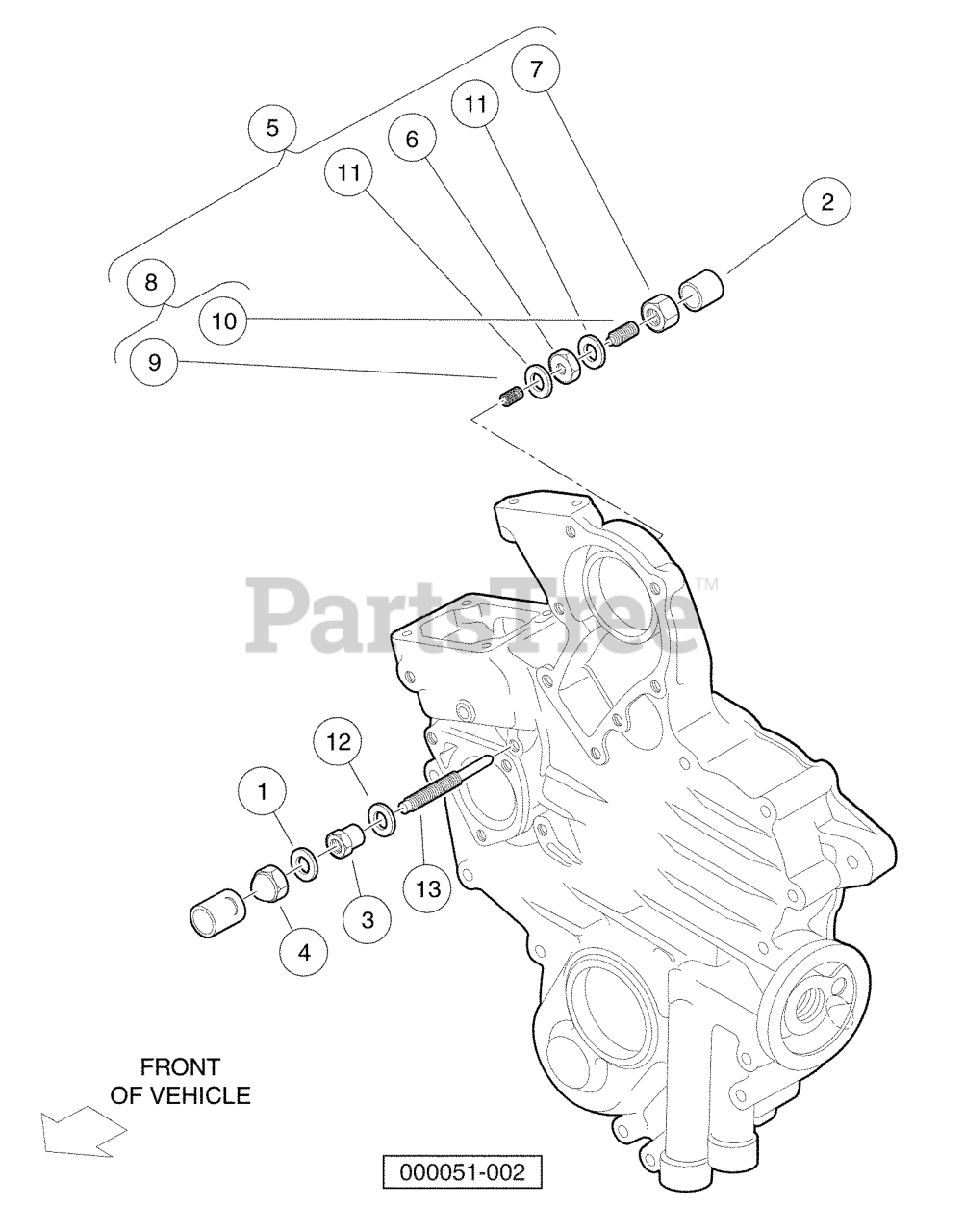

Idle Apparatus Parts Diagram

  • Title

1

Husqvarna 603001369

GASKET, 6X10

$

$

Not available

2

Husqvarna 603001371

CAP, BOLT ASSY

$

$

Not available

3

Husqvarna 603001381

NUT, LOCK, SPECIAL

$

$

Not available

4

Husqvarna 603001382

NUT, SPECIAL

$

$

Not available

5

Husqvarna 603001725

ASSY,IDLE APPARATUS

Note: (includes items 6 through 11)

$

$

Not available

6

Husqvarna 603001370

NUT, M8

$

$

Not available

7

Husqvarna 603001372

NUT, M8

$

$

Not available

8

Husqvarna 603001726

SPRING, IDLE APPARATUS

Note: (includes items 9 and 10)

$

$

Not available

9

Spring, Idle Apparatus

$

$

Not available

10

Stud, Idle Adjustment

$

$

Not available

11

Husqvarna 603002800

GASKET, IDLE APPARATUS, REAR

$

$

Not available

12

Husqvarna 603001728

GASKET, IDLE APPARATUS, FRONT

$

$

Not available

13

Husqvarna 603002801

BOLT, IDLE ADJUSTING, D722 CB

$

$

Not available
