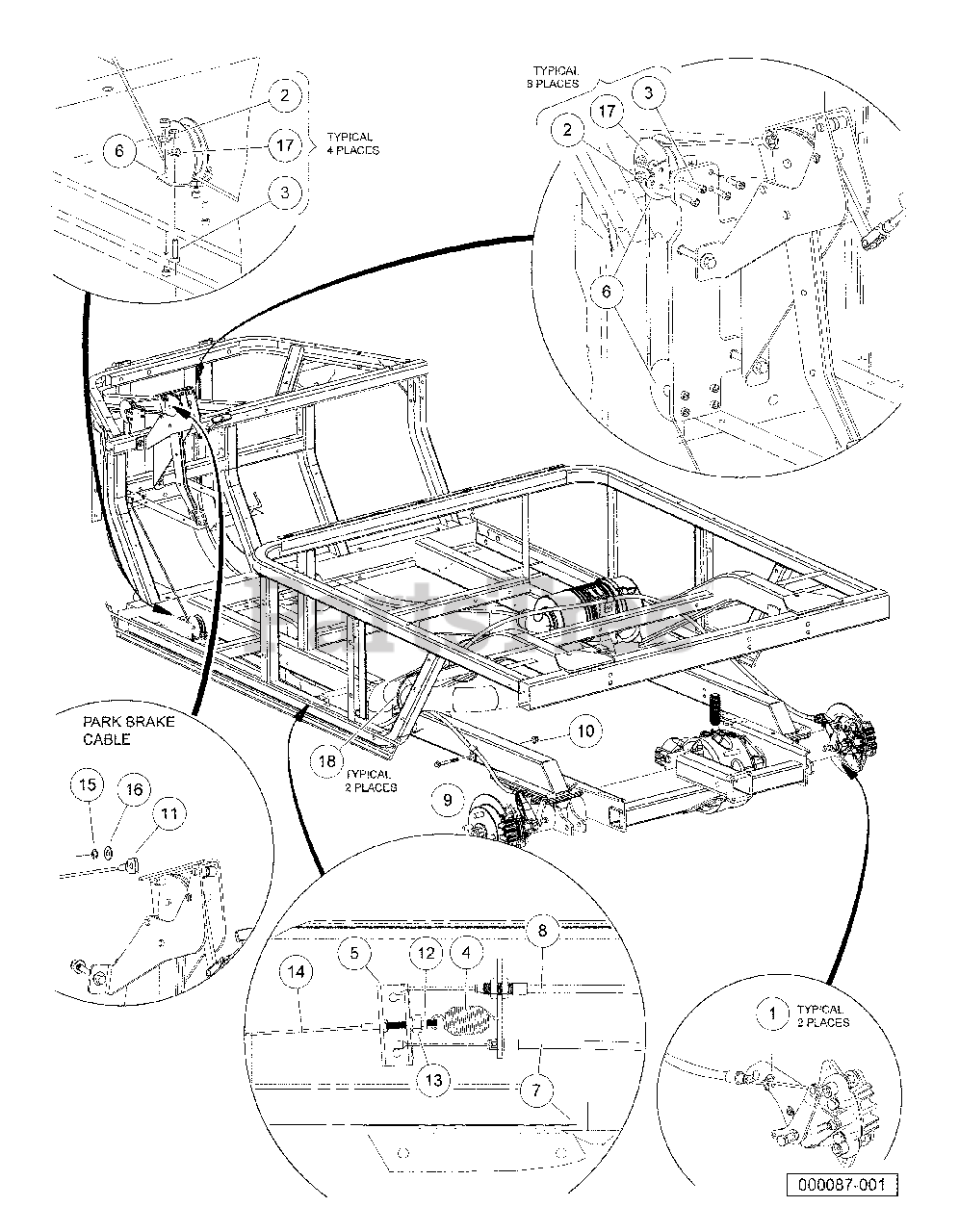

HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Park Brake Assembly with Pulley System Parts Diagram

4x4 Utility Vehicle, Diesel

Park Brake Assembly with Pulley System Parts Diagram

  • Title

1

Husqvarna 603000130

E-Clip, 1/2

$2.49

$

In Stock, only 2 left!

0

2

Husqvarna 603000141

Locknut, #10-24 Nylon Insert

$2.49

$

In Stock, only 1 left!

0

3

Husqvarna 603000455

Screw, #10-24 X 3/4 Socket-Head

$3.49

$

In Stock, only 4 left!

0

4

Husqvarna 603000175

Spring, Brake Return

$

$

Not available

5

Husqvarna 603000632

Equalizer Bracket

$

$

Not available

6

Husqvarna 603000701

Pulley, 2-Inch Flat Mount

$51.99

$

In Stock, only 2 left!

0

7

Husqvarna 603001053

Cable, Brake, Parking, Left

$

$

Not available

8

Husqvarna 603001054

Cable, Brake, Parking, Right

$

$

Not available

9

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

10

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

11

Husqvarna 603001179

Brake Cable, Park, Kit, Front

Note: (includes items 12 through 16)

$

$

Not available

12

Husqvarna 603000109

Nut, 5/16-24 Hex

$

$

Not available

13

Husqvarna 603000766

Nut, 5/16-24 Hex Cone

$

$

Not available

14

Cable, Brake, Parking, Front

$

$

Not available

15

Husqvarna 603002820

Ring, Retaining, External, 9mm

$

$

Not available

16

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

17

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

18

Husqvarna 603000093

Tie Wrap, 11" Nylon

$

$

Not available
