HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Park Brake Pedal Assembly with Bellcrank System Parts Diagram

4x4 Utility Vehicle, Diesel

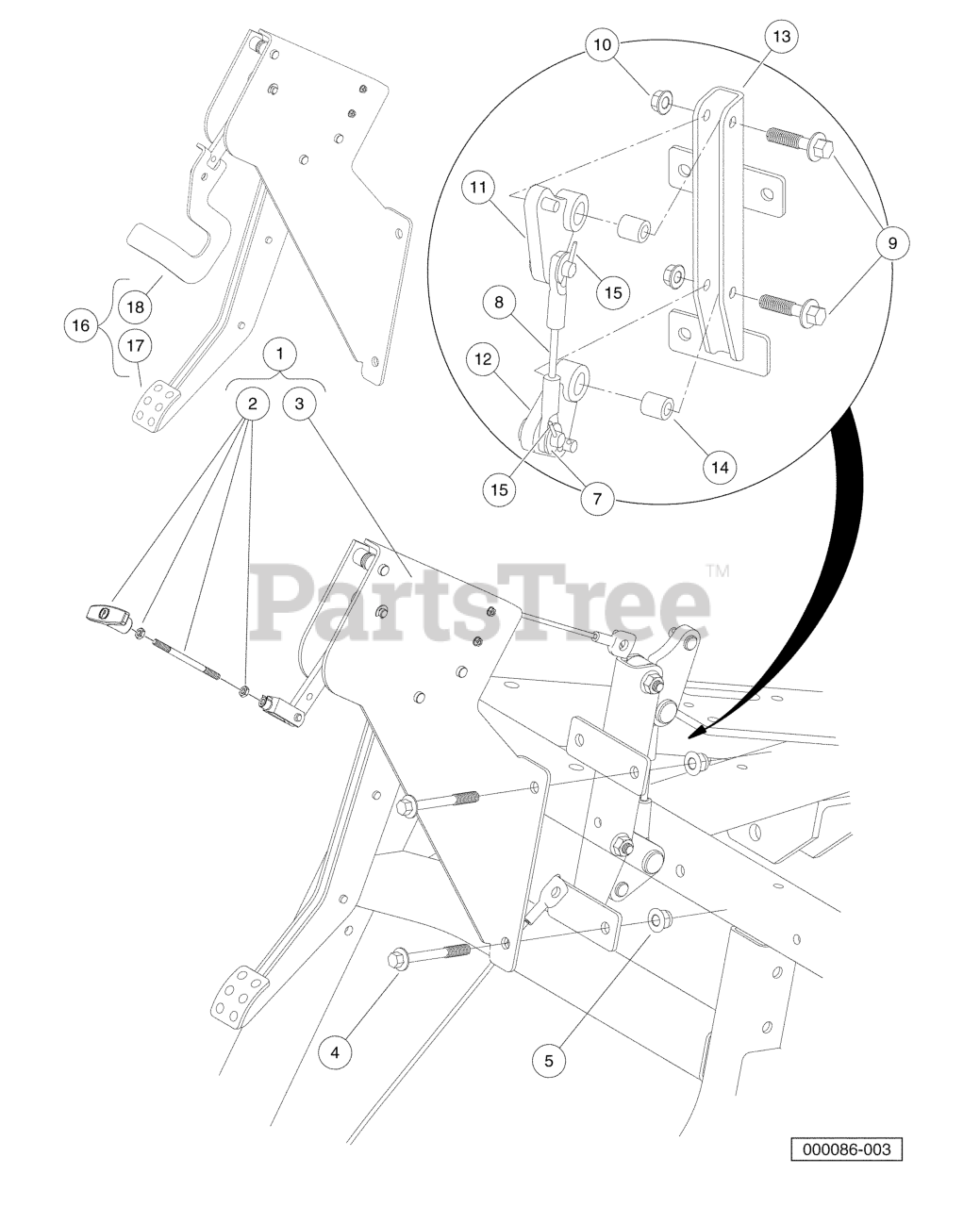

Park Brake Pedal Assembly with Bellcrank System Parts Diagram

  • Title

1

Pedal Asm, Brake, Park

Note: (includes items 2 and 3)

$

$

Not available

2

Husqvarna 603001777

KIT-HANDLE-BRAKE-PARK

$

$

Not available

3

Pedal, Brake, Park

$

$

Not available

4

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

5

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

6

Husqvarna 603003525

Asm, Sub, Bracket, Park Brake

Note: (includes items 7 through 15)

$

$

Currently unavailable

7

Husqvarna 603003522

WASHER, FLAT, 3/8, BLK FIN

$

$

Not available

8

Husqvarna 531307110

CABLE, CRANK BELL

$

$

Not available

9

Husqvarna 531307107

BOLT

$

$

Not available

10

Husqvarna 531307113

NUT

$

$

Not available

11

Husqvarna 603003523

Asm, Bellcrank, Upper

$

$

Currently unavailable

12

Husqvarna 603003524

ASM, BELLCRANK, LOWER

$

$

Not available

13

Husqvarna 603004137

BRKT, BELLCRANK, PRK BRK, AWD

$

$

Not available

14

Husqvarna 603004138

SPACER, PIVOT, PARK BRK, AWD

$

$

Not available

15

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

16

Husqvarna 531307375

ASM, PEDAL, BRAKE, HARD

Note: (includes items 17 and 18)

$

$

Not available

17

Pedal, Brake, Park

$

$

Not available

18

Husqvarna 603003526

HANDLE, RELEASE, PARK BRAKE

$

$

Not available
