HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Rear Body Trim Parts Diagram

4x4 Utility Vehicle, Diesel

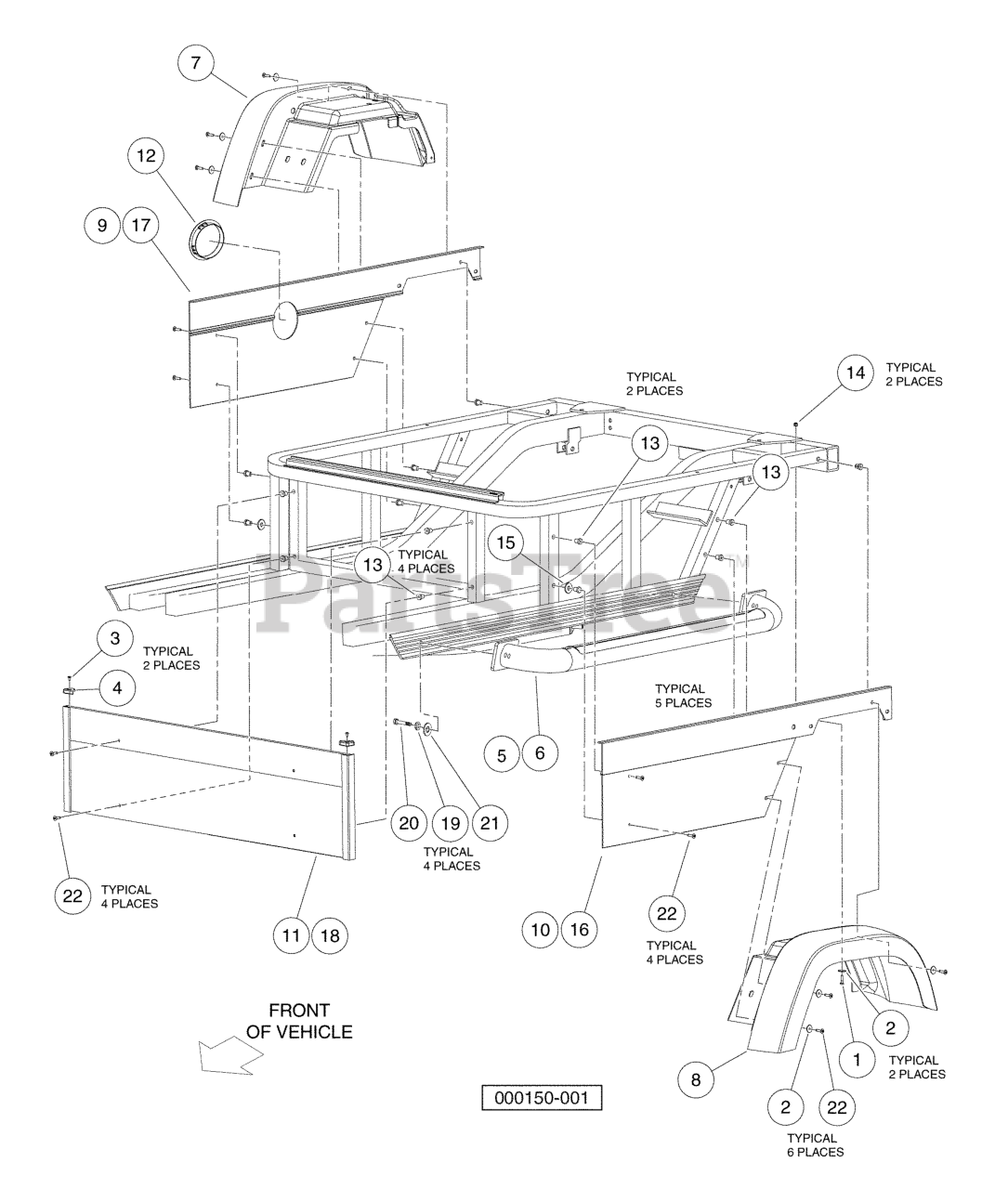

Rear Body Trim Parts Diagram

  • Title

1

Husqvarna 603000157

SCREW

$

$

Not available

2

Husqvarna 603000222

WASHER

$

$

Not available

3

Husqvarna 603000223

SCREW

$

$

Not available

4

Husqvarna 603000458

CORNER CAP AWD

$

$

Not available

5

Husqvarna 603000693

SIDE STEP BAR

Note: (black)

$

$

Not available

6

Husqvarna 603000694

SIDE STEP BAR

Note: (orange)

$

$

Not available

7

Husqvarna 603002690

FENDER, RIGHT REAR

$

$

Not available

8

Husqvarna 603002691

FENDER, LEFT REAR

$

$

Not available

9

Husqvarna 603001085

PANEL, SIDE, WELDMENT, PASS

Note: (Passenger Side)

$

$

Not available

10

Husqvarna 603001086

PANEL, SIDE, WELDMENT, DRV

Note: (Driver Side)

$

$

Not available

11

Husqvarna 603001087

PANEL, FRONT, WELDMENT

$

$

Not available

12

Husqvarna 603001129

BEZEL, FUEL FILL

$

$

Not available

13

Husqvarna 603001176

WELL NUT 1/4-20

$

$

Not available

14

Husqvarna 603001317

NUT FLG, M6 X 1.0 NYLON

$

$

Not available

15

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available

16

Husqvarna 603001774

SIDE PANEL, DRIVER, ORANGE

$

$

Not available

17

Husqvarna 603001775

SIDE PANEL, PASS, ORANGE

$

$

Not available

18

Husqvarna 603001776

FRONT PANEL ORANGE

$

$

Not available

19

Husqvarna 603000056

WASHER,LOCK,HEL SP 3/8 REG

$

$

Not available

20

Husqvarna 603000080

BOLT, 3/8-16 X 3.00 HEX HEAD

$

$

Not available

21

Husqvarna 603003617

WASHER, 3/8 TYPE B FLAT

$

$

Not available

22

Husqvarna 603000091

SCREW, 1/4-20 X 1.0 TRS HD MCH

$

$

Not available
