HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Transmission, Continued Parts Diagram

4x4 Utility Vehicle, Diesel

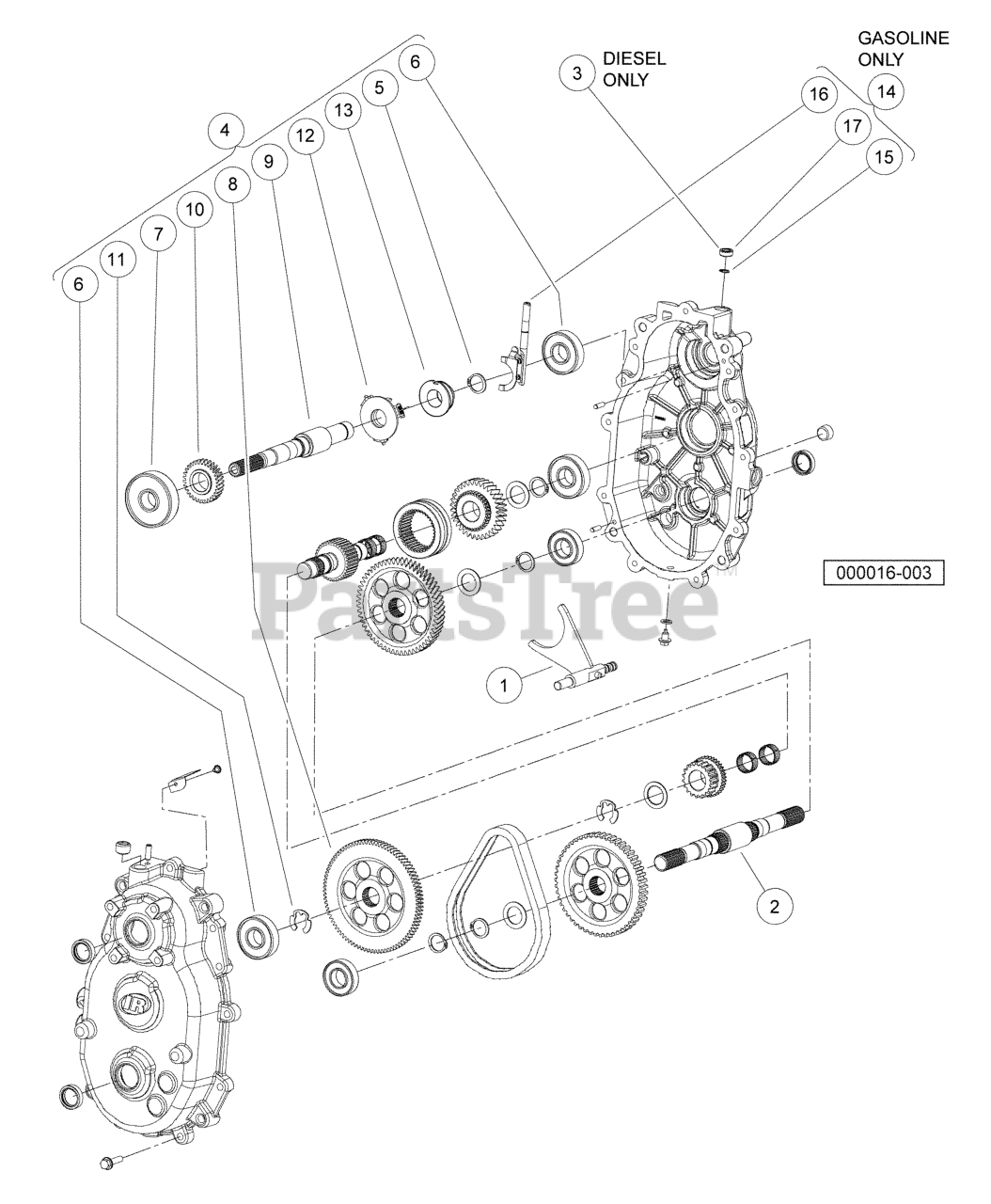

Transmission, Continued Parts Diagram

  • Title

1

Husqvarna 603001652

FORK, WA, TRANS

$

$

Not available

2

Husqvarna 603002837

SHAFT, OUTPUT

$

$

Not available

3

Husqvarna 603001656

PLUG, 19MM

$

$

Not available

4

Husqvarna 603001782

KIT-INPUT SHAFT REPAIR

Note: (includes items 5 through 13)

$

$

Not available

5

Husqvarna 603001642

RING, RETAINING, BASIC EXTERNA

$

$

Not available

6

Husqvarna 603001649

BEARING, BALL, 6305 C3

$

$

Not available

7

Husqvarna 603001650

BEARING, BALL, 6405 C3

$

$

Not available

8

Gear, Helical 90-Tooth

$

$

Not available

9

Shaft, Input

$

$

Not available

10

Gear, Helical, 31-tooth

$

$

Not available

11

Husqvarna 603001658

RING, RETAINING, E-RING, PO-10

$

$

Not available

12

Sub Assy, Fly Weight

$

$

Not available

13

Sub Assy, Governor Spool

$

$

Not available

14

Husqvarna 603001783

KIT-GOVERNOR SHAFT REPAIR

Note: (includes items 15 through 17)

$

$

Not available

15

Husqvarna 603001659

RING

$

$

Not available

16

Husqvarna 603001660

ASSY, GOVERNOR ARM

$

$

Not available

17

Husqvarna 603001681

SEAL, DUAL LIP

$

$

Not available
